This system operates automatically to stop and
hold the aerial platform when the drive controls are
released or power is interrupted. Manually
disengage the brakes before towing or winching the
aerial platform as described under Towing in
Chapter 11—Emergency Operation.
■ Swing-Out Trays
Batteries and hydraulic components are enclosed
in swing-out trays (refer to Figure 9.5) on each
side of the chassis.

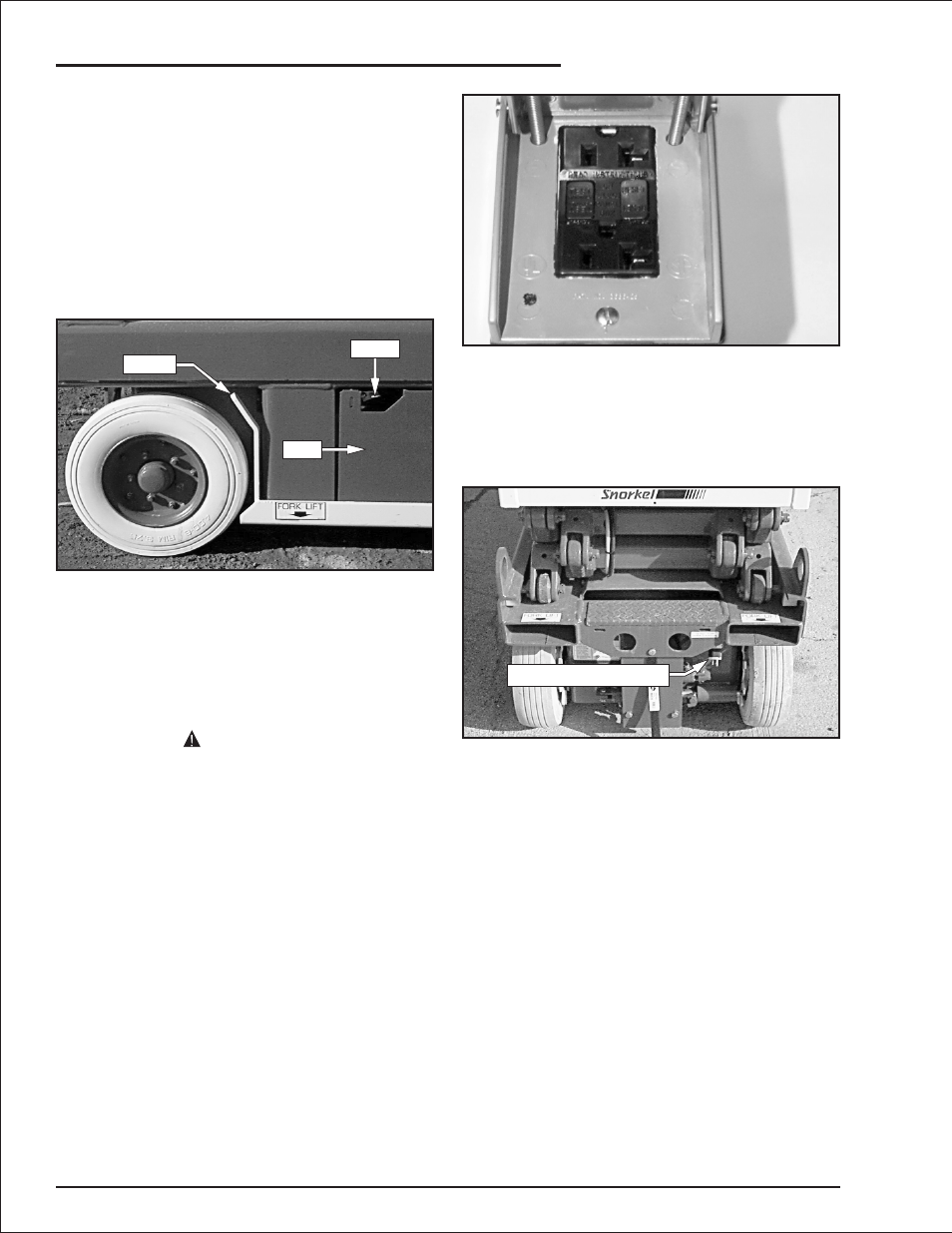

Figure 9.5—Swing-Out Tray
The tray on the right side of the chassis contains
the electrical panel for the lower controls, the
hydraulic directional control valve, the
free-wheeling valve, reservoir, pump, and the
hydraulic fluid filter. The tray on the left side
contains the four batteries and the charger.
The aerial platform can tip over if it becomes
unstable. Death or serious injury can result
from a tip-over accident. Do not open the
swing-out trays when the platform is raised
more than eight feet.
To open a tray, press down on the latch, pull the
pothole protector skid handle toward you, and
swing the tray open.
If the platform is raised to approximately six inches
and the pothole protection skids are down, the trays
will swing out without lowering the skids.
■ Electrical Power Outlet
The optional electrical box has 2, 3-prong, 125
volt AC electrical connectors (refer to Figure 9.6).
Their combined output is limited by a 20 amp
circuit breaker.
Figure 9.6—Electrical Power Outlet
The power-input connector for the electrical outlet
is located at the rear of the chassis near the right
tire (refer to Figure 9.7). Plug a source of power
into the power-input connector when electrical
power is required at the platform.
Figure 9.7—Power-Input Connector
Unplug the source of power before moving the
aerial platform.
Some machines may have an electrical outlet at
the platform, but no power-input connector. In that
case, power is supplied by an optional AC
generator. An external power source is not
required.
page 9 - 4 S2033 – 0390076
Chapter 9. Operation
DANGER
Tray
Latch
Handle
Power-Input Connector
