Chapter 5. Gauges
The aerial platform is equipped with an ammeter,
an hour meter and may have an optional battery
condition indicator.
■ Hour Meter
The hour meter is located at the lower controls
(refer to Figure 5.1). It measures the accumulated
aerial platform operating time.

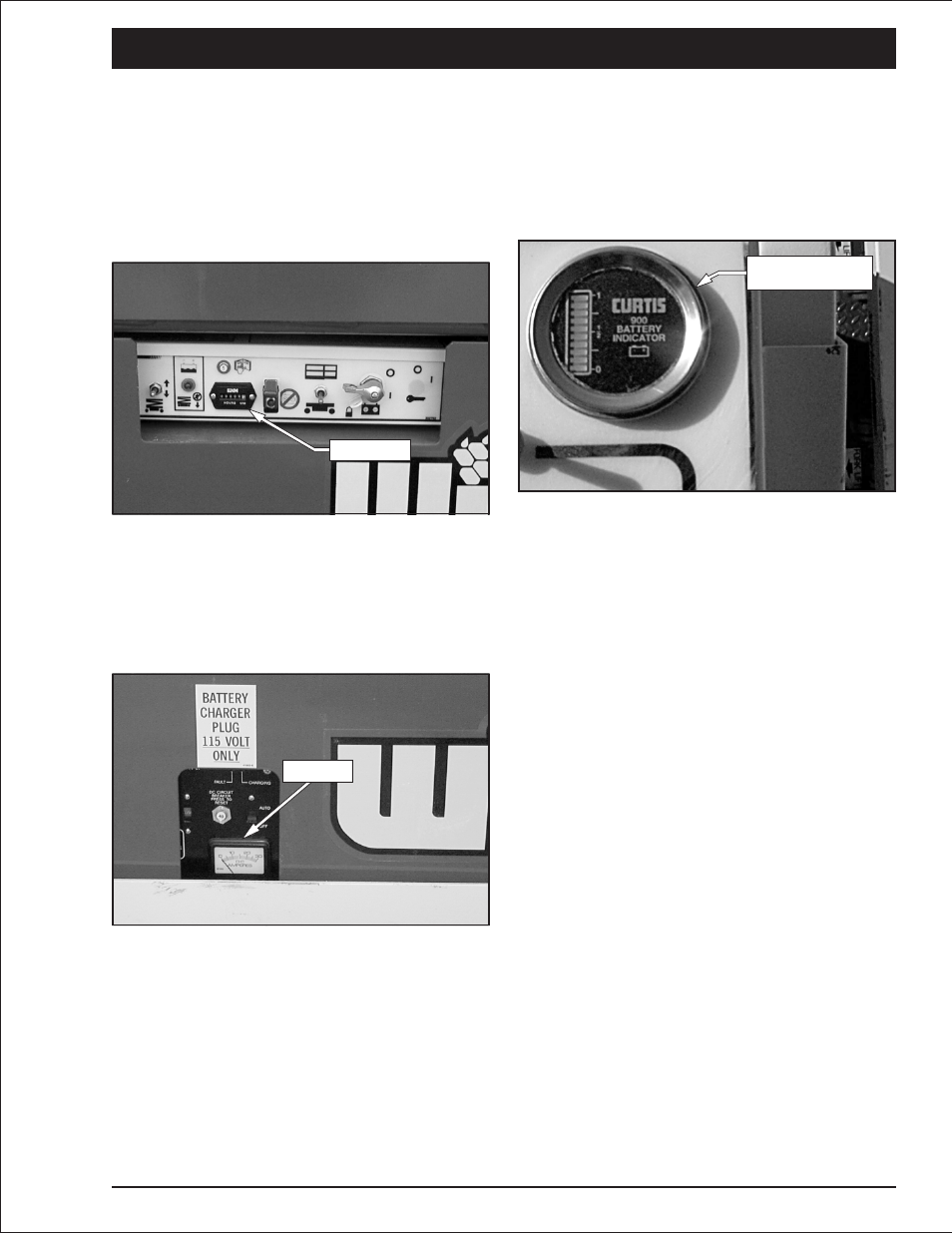

Figure 5.1—Lower Controls
■ Ammeter
The ammeter is located on the battery charger
(refer to Figure 5.2). When the batteries are
charging, the ammeter displays the level of
current flow to the batteries.
Figure 5.2—Battery Charger
■ Battery Condition Indicator
The optional battery condition indicator (refer to
Figure 5.3) is located on the upper control panel.
It displays the level of available battery power to
operate the aerial platform. The number one on
the scale indicates full power and zero indicates
no power.
Figure 5.3—Battery Condition Indicator
S2033 – 0390076 page 5 - 1
Hour Meter
Ammeter
Battery Condition
Indicator
