Chapter 6 – Controls
AB80J/AB85J – 0420453EE 27
Platform Foot Switch
The upper controls are interlocked through the platform
foot switch (refer to Figure 6.8). Step down on and hold
the platform foot switch to activate the drive and boom
functions from the upper controls.

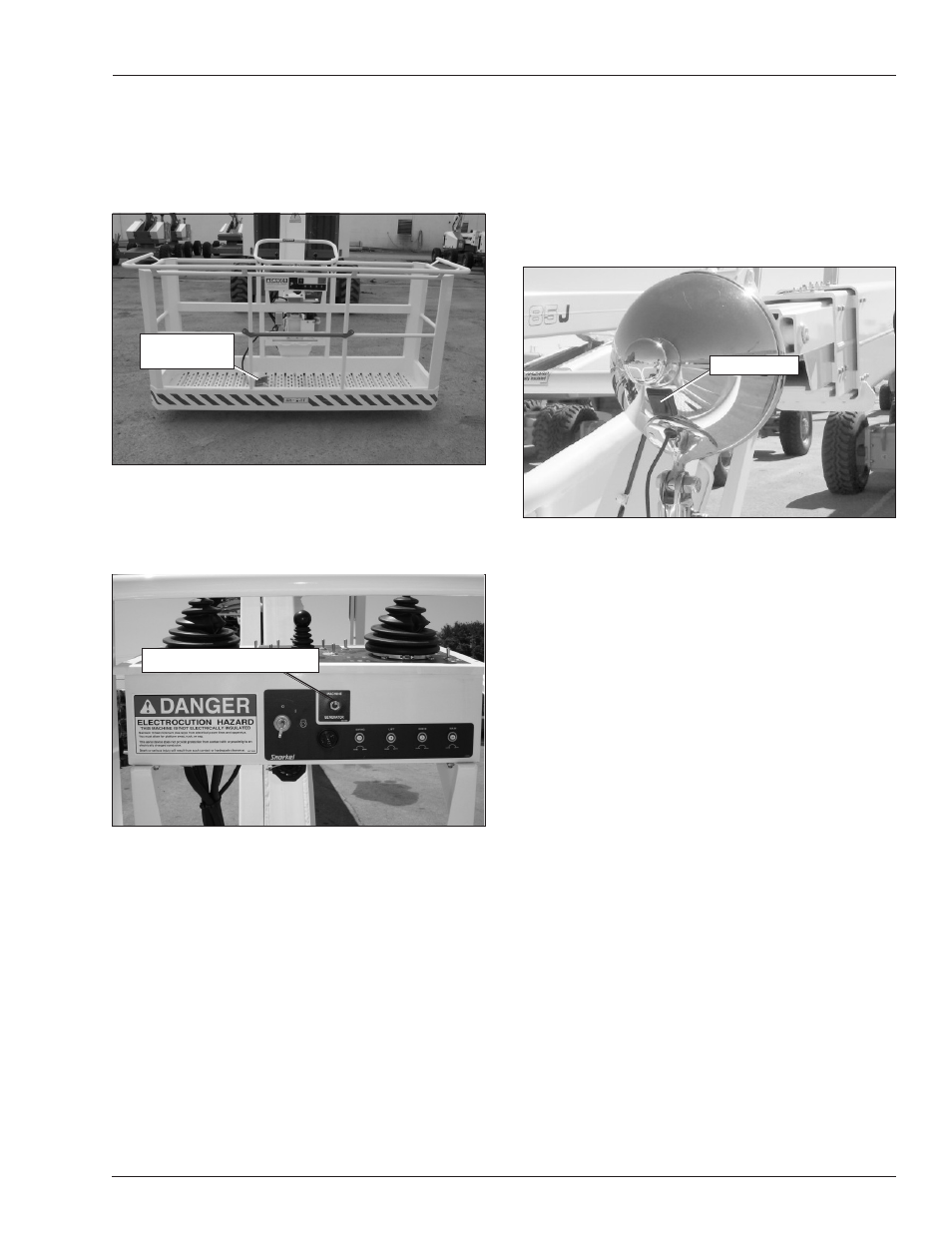

Figure 6.8 – Platform
Machine/Generator Switch
The switch for the optional AC generator is located on the
front of the upper control panel (refer to Figure 6.9).
Figure 6.9 – Platform
With the engine running, place the switch in the generator
position to provide electrical power to the electrical outlet
at the platform. Place the switch in the machine position to
turn off the generator and resume machine operation.
Machine functions will not operate while the switch is in
the generator position.
Driving and Platform Work Lights
The control for the optional driving and tail lights is on the
right side of the upper control panel. Place the switch in
the on position to operate the driving lights. There is also
an individual light control on the back of each light.
There is a control for the optional platform work lights on
the back of each light (refer to Figure 6.0).
Figure 6.10 – Platform
Light Switch
Machine/Generator Switch
Platform Foot
Switch
