Page - 16
9 M AINTENANCE
L
EVEL
S
ENSOR
H
YDRAULIC
F
LUID
The hydraulic fluid reservoir is located in the cont

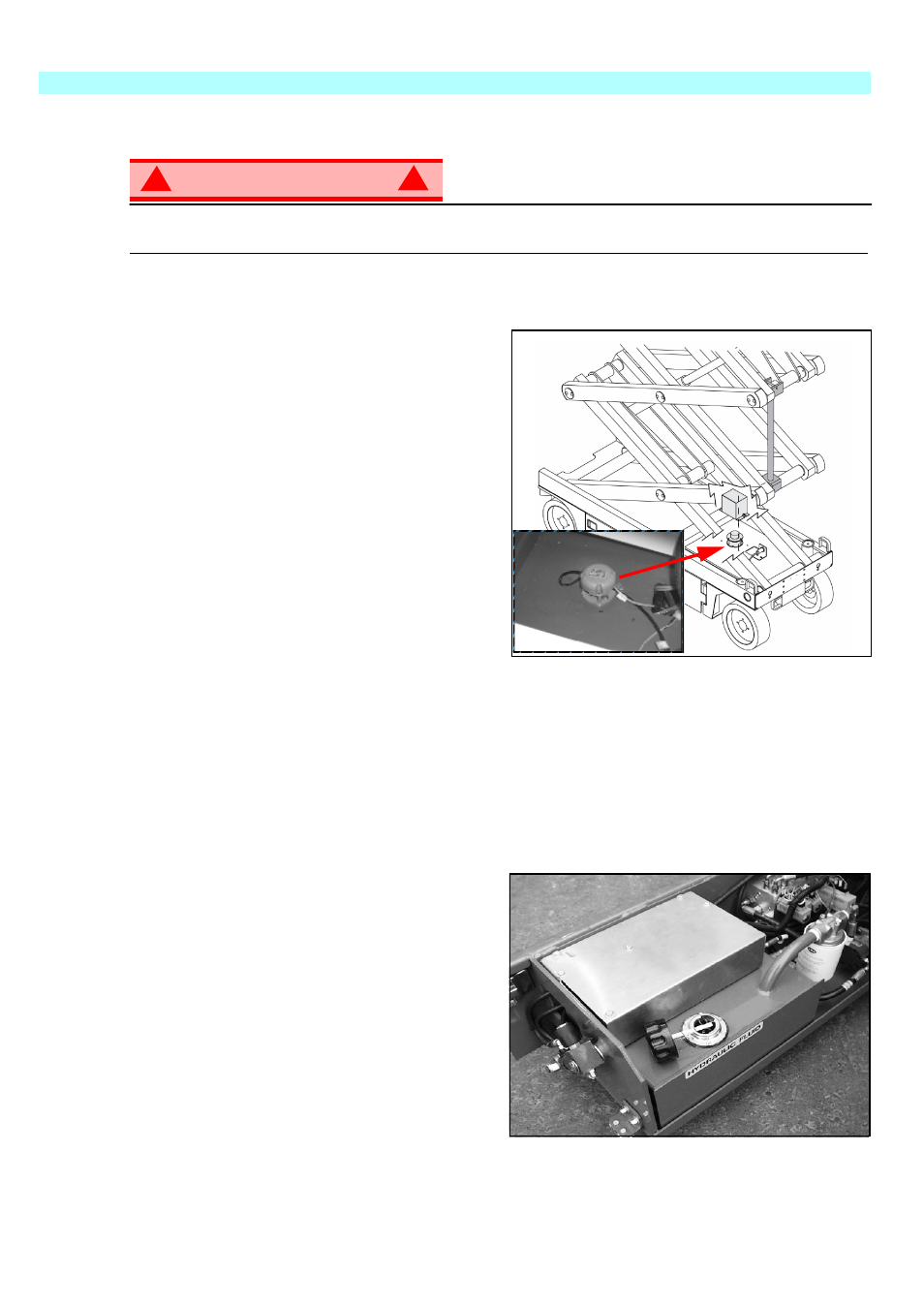

Figure 12: Hydraulic Fluid Reservoir and Dipstick
NOTE: Never add fluid if the platform is elevated.
C
HECK
H
YDRAULIC
F
LUID
1. Make sure that the platform is fully lowered.
2. Open the chassis door.
3. Remove the filler cap from the hydraulic fluid
reservoir.
4. Check the fluid level on the dipstick on the filler
cap.
5. Add the appropriate fluid to bring the level to the
FULL mark. See “Specifications” on page 21.
W A R N I N G ! !
Never perform service while the platform is elevated without first blocking the elevating assembly.
DO NOT stand in the elevating assembly area while deploying or storing the brace.
The Level Sensor Is located on the chassis between the scissor sections and is covered with a protective
metal box.
Figure 10: Level Sensor
The Level Sensor is located on the chassis of the
machine
These units are sealed and pre-set and require no
recalibration or adjustment.
