7 O

PERATION

LEVATING THE

LATFORM

1. Locate a firm, level surface.
2. Select LIFT mode.
3. While engaging the Interlock Switch, push the Control Handle FORWARD.
4. If the machine is not level the level sensor alarm will sound and the machine will not lift or drive.
5. If the level sensor alarm sounds the platform must be lowered and the machine moved to a firm, level

surface before attempting to elevate the platform.

RAVEL WITH

ORK

LATFORM

LEVATED

NOTE: The machine will travel at reduced speed when the platform is elevated.

1. Check that the route is clear of surface hazards such as holes, drop-offs, bumps, curbs, or debris.
2. Check that the route is level, and is capable of supporting the wheel loads.
3. Check clearances above, below, and to the sides of platform.
4. Select DRIVE mode.
5. Engage the Interlock Switch and move the Control Handle to FORWARD or REVERSE to travel in the

desired direction. The speed of the machine will vary depending on how far from centre the Control

Handle is moved.

6. If the machine is not level the level sensor alarm will sound and the machine will not lift or drive.
7. If the level sensor alarm sounds the platform must be lowered and the machine moved to a firm, level

surface before attempting to elevate the platform.

OWERING THE

LATFORM

MERGENCY

OWERING

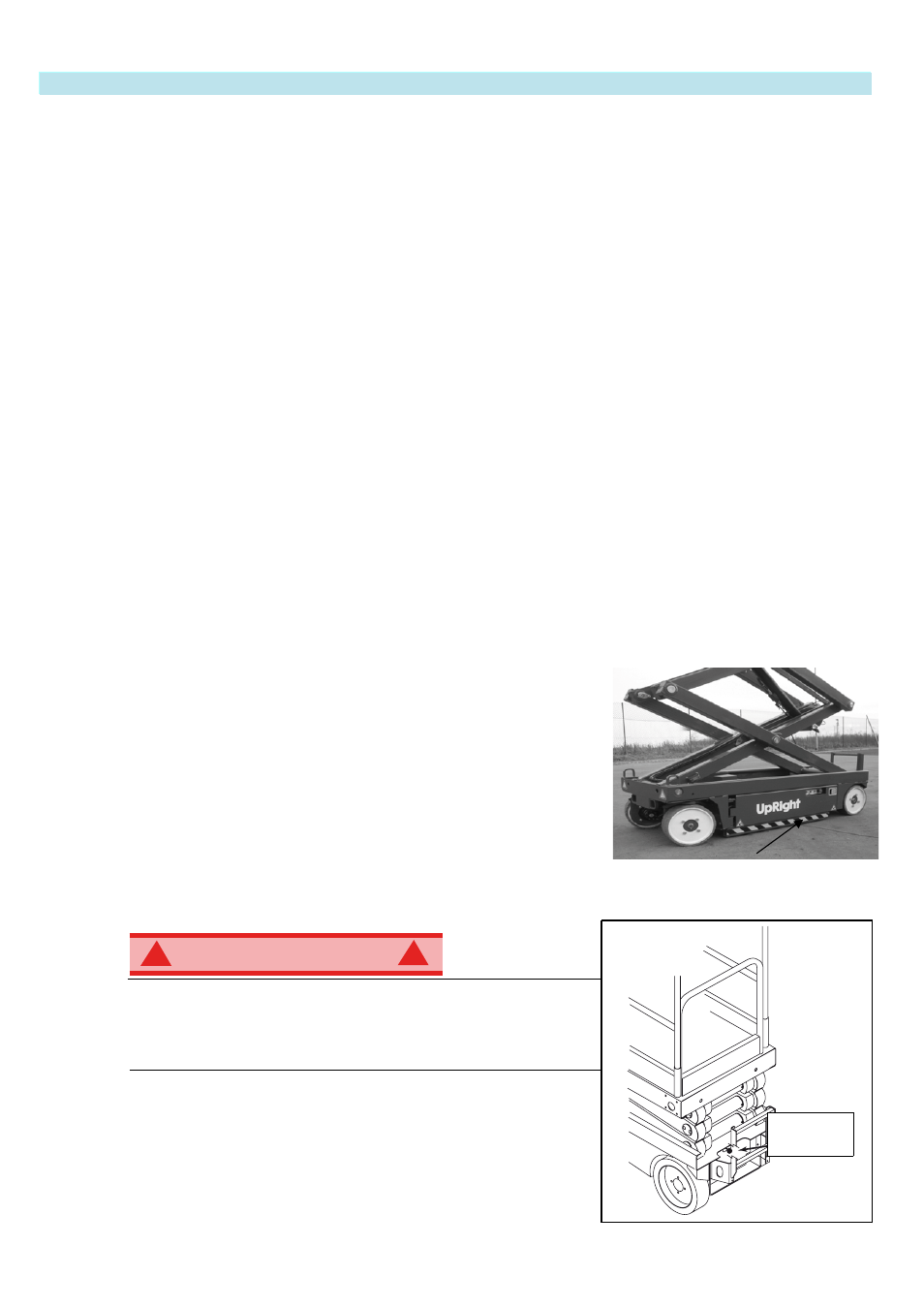

Figure 5: Emergency Lowering Knob

W A R N I N G

If the platform should fail to lower,

NEVER climb down the

scissor assembly.

A second operative should operate the Emergency Lowering

Valve Knob while keeping clear of the scissor assembly.

The Emergency Lowering Valve Knob is located at the rear of

the machine, behind the ladder.

1. Open the Emergency Lowering Valve by pulling and holding

the knob.

2. To close, release the knob. The platform will not elevate if

the Emergency Lowering Valve is open.

1. Select LIFT mode.
2. Check around the base of the platform to ensure that no one

is in contact with the machine. Engage the Interlock Switch
and pull back on the Control Handle to lower the platform.

3. The platform will stop when it reaches the pre-determined

safety cutout height. Inspect around the machine to ensure
no one is in contact with the machine. After a four-second
time delay, lower the platform as in step 2.

Pothole Protection Rails Lowered

Fig 5:Travel With Scissors Elevated

NOTE: The Pothole Support Rails will deploy automatically as the platform elevates and will remain deployed when

traveling in the Elevated position refer fig 5. They will automatically retract when the platform has been lowered

completely and machine is about to be driven refer fig 2 & 4.

Emergency

Lowering Valve

Knob
