7 O
PERATION
P
ARKING
B
RAKE
R
ELEASE
Perform the following only when the machine will not operate under its own power and it is necessary to
move the machine or when winching onto a transport vehicle (see “Transporting the Machine”).
W A R N I N G ! !
NEVER winch or move the machine faster than 0,3 m/sec. (1 ft./sec.).
NEVER operate the machine with the parking brakes released. Serious injury or damage could result.
DO NOT release the parking brakes if the machine is on a slope.
The parking brakes are integral to the drive motors. Each drive motor has two brake release screws.
Release and engage the parking brakes one wheel at a time. Turn the brake release screws in stages (½
turn at a time) to prevent possible binding of the brake mechanism.

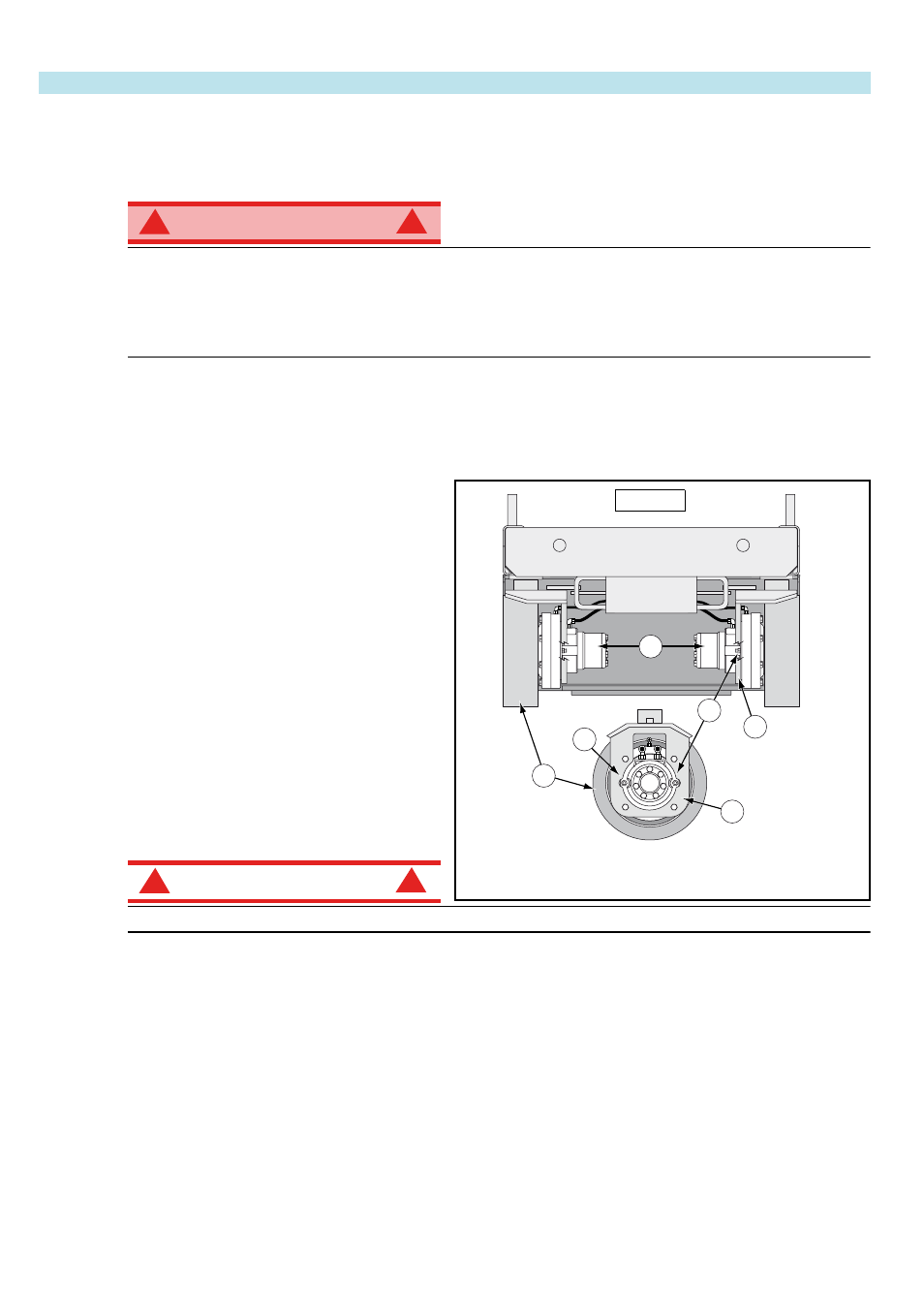

Figure 7: Parking Brake Release
R
ELEASE THE
P
ARKING
B
RAKE
The front wheel motors each have two
brake release nuts.
IMPORTANT: Turn the nuts alternately in ½
turn increments to insure uniform
adjustment and prevent binding.
1. Chock the rear wheels to prevent the
machine from rolling.
2. Using a 5mm Allen Key, remove the two
G1/8 plugs from the motor body turning
counter-clockwise.
3. Using a 5mm Allen Key turn the inner
G1/8 plug as far as possible in a
clockwise direction.
4. The brake is released.
C A U T I O N ! !
To avoid confusion, the outer plugs should not b
e replaced before the braking function is re-instated.
E
NGAGE THE
P
ARKING
B
RAKE
1. Chock the rear wheels to prevent the machine from rolling.
2. Using a 5mm Allen Key turn the inner G1/8 plug as far as possible in the counter-clockwise direction.
3. Fit the two outer G1/8 plugs then, using the 5mm Allen Key, screw in clockwise until tight.
A
FTER
U
SE
E
ACH
D
AY
1. Ensure that the platform is fully lowered.
2. Park the machine on a firm, level surface, preferably under cover, secure against vandals, children and
unauthorized operation.
3. Turn the Chassis Key Switch to OFF and remove the key to prevent unauthorized operation.
3. G1/8 Plugs
2
3
3
4
1
1
1. Motor Mount
2. Drive Motor 3. Brake Release Nut
4. Wheel
FRONT
