8 TRANSPORTING THE MACHINE
8 TRANSPORTING THE MACHINE
Always use a transport vehicle when moving a machine to a work site. Towing the machine over long
distances will damage the machine and void the warranty.
LIFTING BY CRANE
D A N G E R ! !
See specifications for the weight of the machine
and be certain that the crane is of adequate
capacity to lift the machine.
Secure straps to chassis tie down/lifting points
only (see Figure 8).
MOVING BY FORKLIFT
Fork-lifting is for transport only.
See specifications for the weight of the machine
and be certain that the forklift is of adequate
capacity to lift the machine.
Forklift from the rear of the machine using
the forklift pockets provided. If necessary, the
machine may be forklifted from the side by lifting
under the Chassis Modules, (see Figure 9).

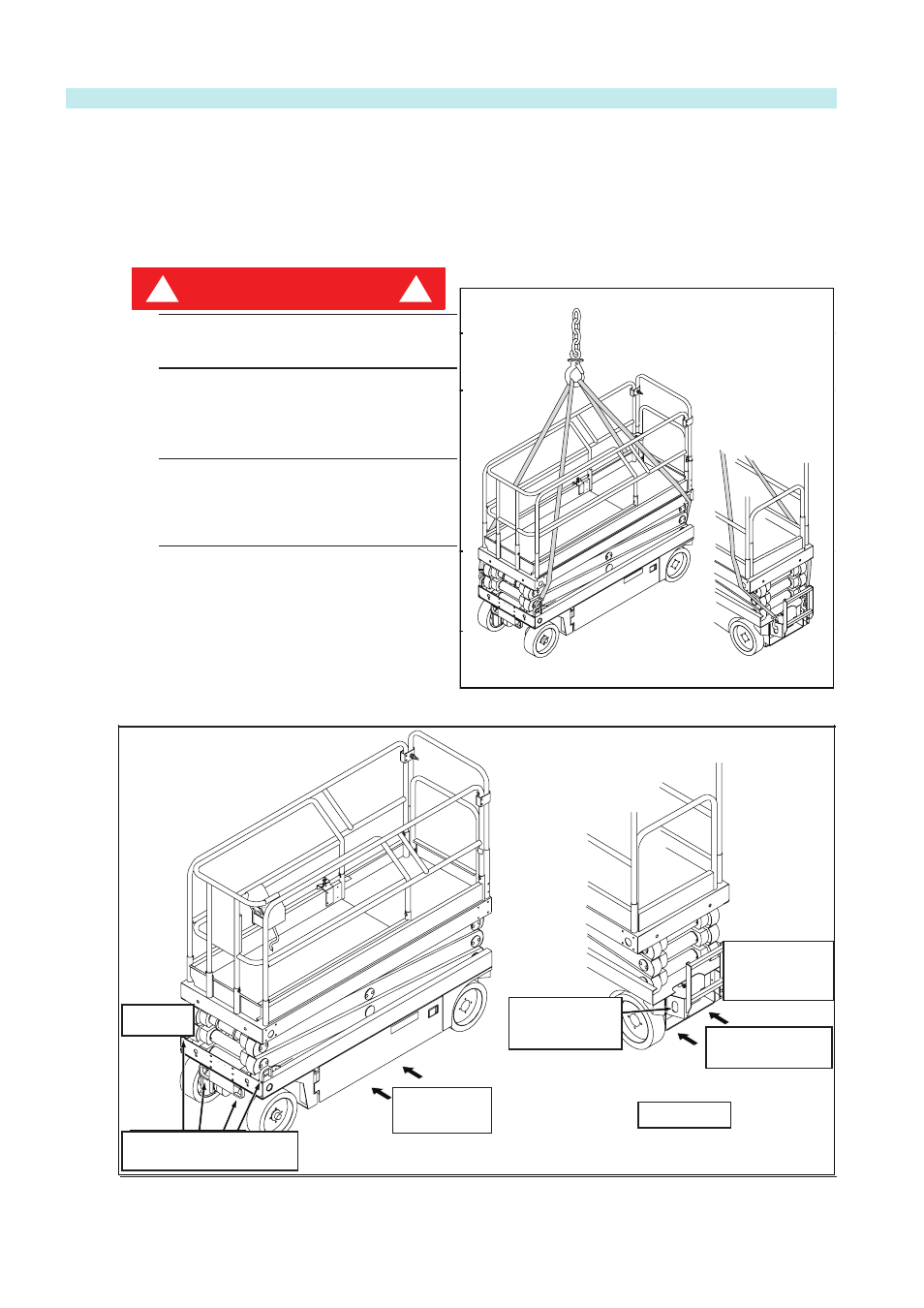

Figure 8: Secure Crane Straps
Figure 9: Tie Down and Lift Points
Front Rear
REAR
FRONT
Rear Tie
Down/Lift Point
Front Tie Down/Lift
Point
Forklift Here
Forklift Pockets
Rear Tie
Down/Lift Point
Rear Tie
Down/Lift
Point
Front Rear
FRONT
Front Tie Down/Lift
Point
Forklift Here
Rear Tie
Down/Lift Point
REAR
Forklift Pockets
