Page 4 X Series
Before operating work platform, ensure that the pre-operation safety inspection has been com-
pleted, and that any deficiencies have been corrected. Never operate a damaged or malfunc-
tioning machine. The operator must be thoroughly trained on this machine, and must read, fully
understand, and follow this Operator Manual and Scaffold Industry Association’s Manual of
Responsibilities of ANSI A92.6-1999.
P LATFORM E XTENSION

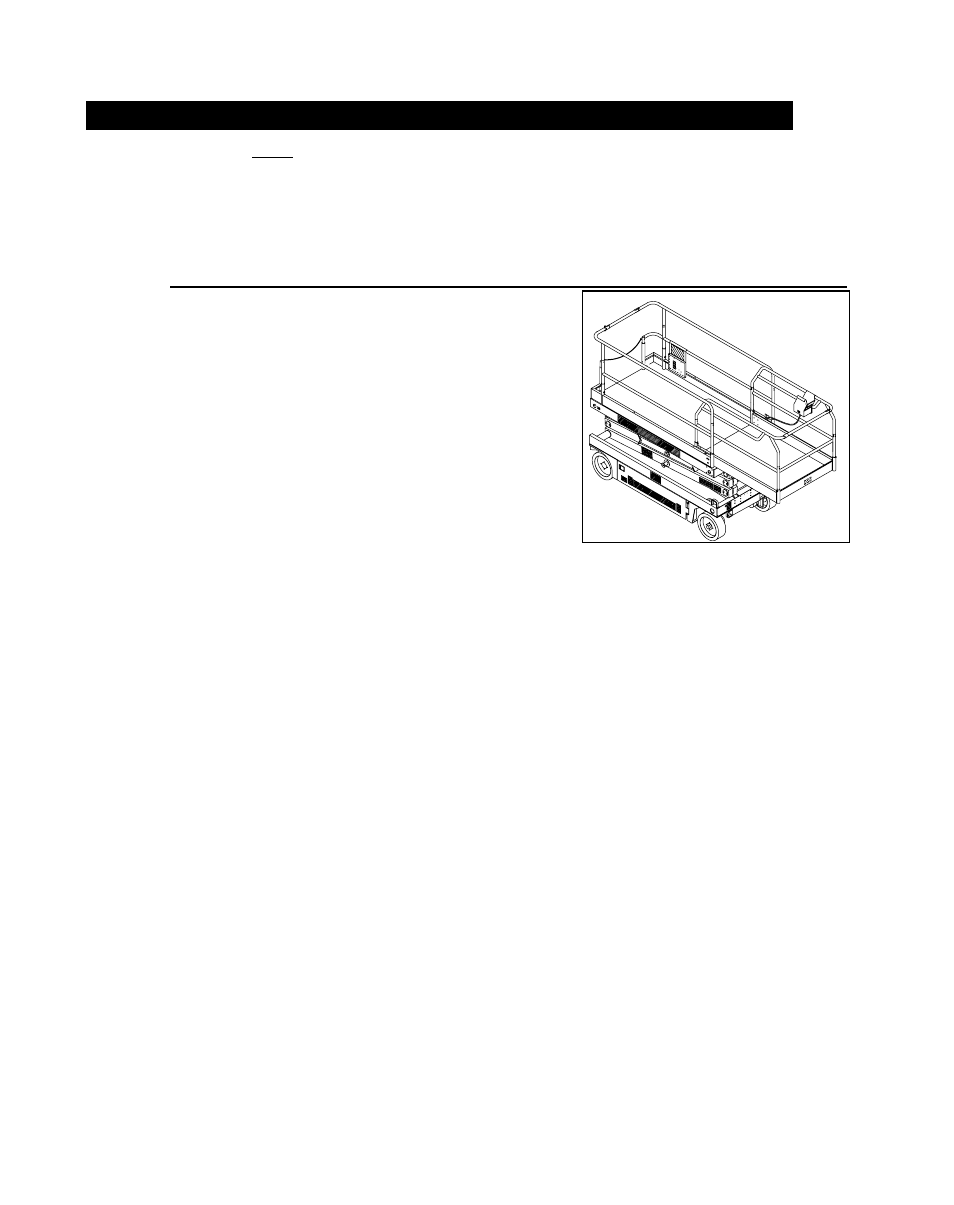

Figure 4: Platform Extension
1. Mount the platform and properly close the
entrance.
2. Depress the foot lever located at the rear of the
platform extension. Push the platform extension
forward until the pin engages the front stop.
3. To retract the platform extension, depress the
foot lever and pull the platform extension toward
the rear of the machine until the pin engages the
rear stop.
T RAVEL W ITH P LATFORM L OWERED
1. Check that the route is clear of obstacles (per-
sons, obstructions, holes, drop-offs, bumps, and
debris), is level, and capable of supporting the
wheel loads.
2. Turn the Chassis Key Switch to DECK.
3. Pull Chassis EMERGENCY STOP Switch to the ON position.
4. Mount the platform and properly close the entrance.
5. Check clearances above, below and to the sides of platform.
6. Pull Platform EMERGENCY STOP Switch to the ON position.
7. Turn Lift/Drive Switch to DRIVE.
NOTE: Turn Lift/Drive Switch to HI (if applicable) for traveling on level ground, or to LOW
when extra torque is required for climbing grades.
8. Engage the Interlock Switch and move the Control Handle to FORWARD or REVERSE to
travel in the desired direction. The speed of the machine will vary depending on how far from
center the Control Handle is moved.
O PERATION
