8

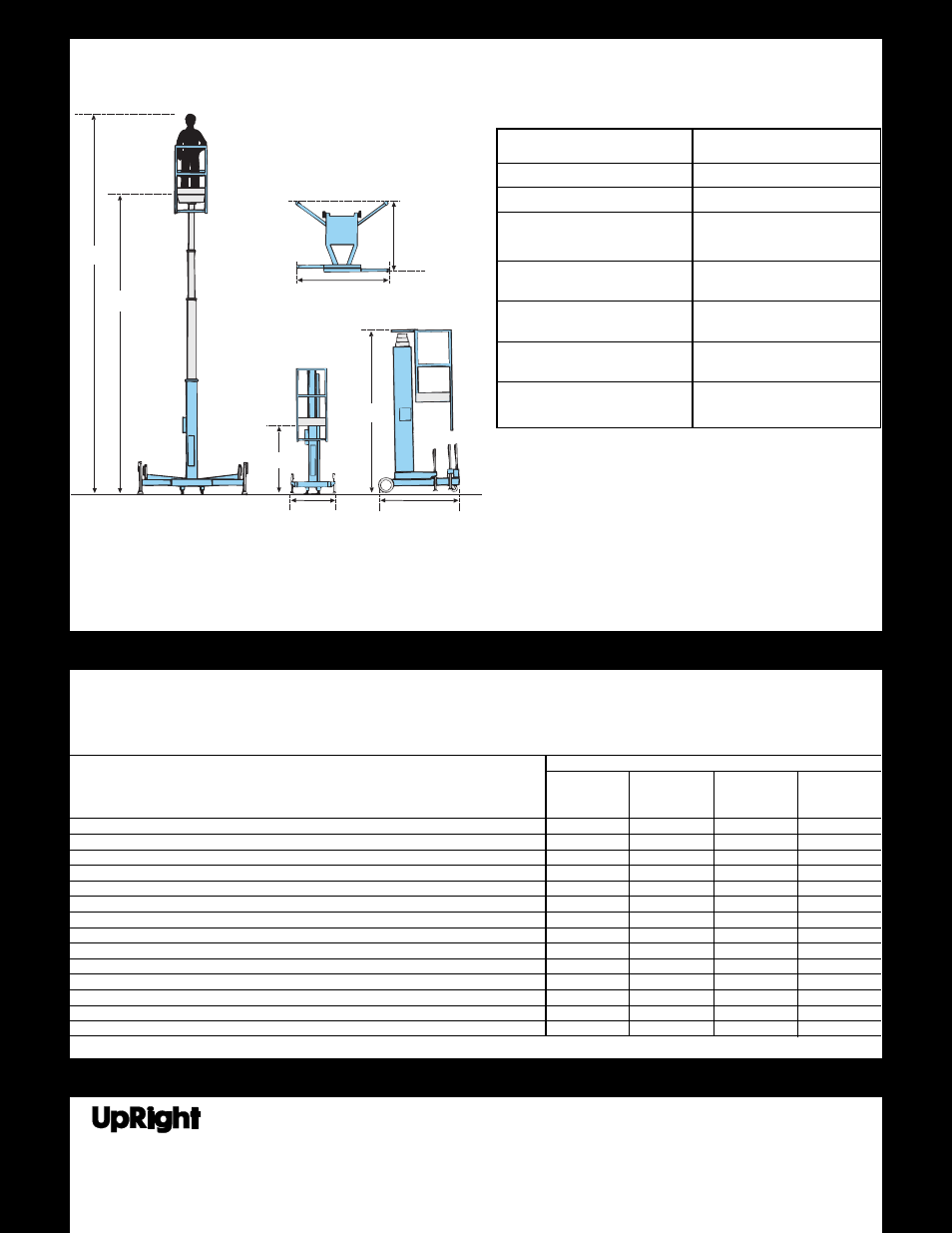

Specifications*
067997-000
12-02
FOR MORE INFORMATION
Distributor:
TEL: 1-800-926-5438 or 559-662-3900
FAX: 559-673-6184
PARTSFAX: 1-800-669-9884
801 S. Pine St., Madera, CA 93637
http://www.upright.com
Safety Rules and Operating Instructions
Safety Rules and Operating Instructions
Working Height (A)
Platform Height (Max) (B)
Platform Height (Lowered) (C)
Platform Capacity
Platform Dimensions (l x w)
Unit Dimensions (G x H)
Outriggers Extended (l x w)
Unit Dimensions (D) (E) (F)
Outriggers Stowed (w x h x l)
Net Weight
A.C. Model with outriggers
Net Weight
D.C. Model with outriggers
*Specifications subject to change without notice.
Meets or exceeds all applicable requirements of
OSHA and ANSI A92.3-1990.
25 ft. 6 in. (7.8 m)
19 ft. 6 in. (5.9 m)
34-1/2 in. (0.87 m)
350 lbs. (159 kg)
22 in. x 26 in.
(0.56 m x 0.66 m)
55 in. x 53 in.
(1.4 m x 1.35 m)
29 in. x 78 in. x 45 in.
(0.74 m x 1.98 m x 1.14 m)
646 lbs.
293 kg
698 lbs.
317 kg
ROUTINE SERVICE
Use the following table as a guide for routine maintenance, refer to Service and Parts Manual for complete
service instructions.
SERVICE OPERATION INTERVAL
MONTHLY 3 MONTHS YEARLY
DAILY OR OR OR
50 HRS. 125 HRS. 500 HRS.
Check bubble level accuracy X
Check operation of outrigger interlocks X
Check battery fluid level and charge battery (D.C. models only) X
Check for peeling, faded or missing labels & replace X
Check condition of control cable X
Inspect mast assembly for bends, cracks or loose rivets X
Check chassis and platform emergency stop switch operation X
Check emergency lowering valve operation X
Check casters for damage X
Check hydraulic fluid level X
Check cage and cage support fasteners for proper torque X
Inspect and adjust sequence straps slack X
Lubricate lift chains and sheaves X
Change hydraulic fluid (ISO #46) X
A
B
G
H
D
E
F
C
