Emergency Stop
Stop buttons are fitted on the machine to stop the motor in an emergency. In addition
to the basket emergency stop button, an emergency stop is fitted at the base control
station. The emergency stops can be reset by twisting ( Fig. 12).
Turning the key switch at the ground controls to the ‘Off’ position will also stop the
machine.
Emergency Procedures (from the Ground)– With Power
Top Boom.
To Elevate: Press ‘Green’ Run Button and push ground control lever up
To Descend: Press ‘Black’ Run Button and push ground control lever down
Bottom Boom.
To Elevate: Press ‘Green’ Run Button and push ground control lever up
To Descend: Press ‘Black’ Run Button and push ground control lever down

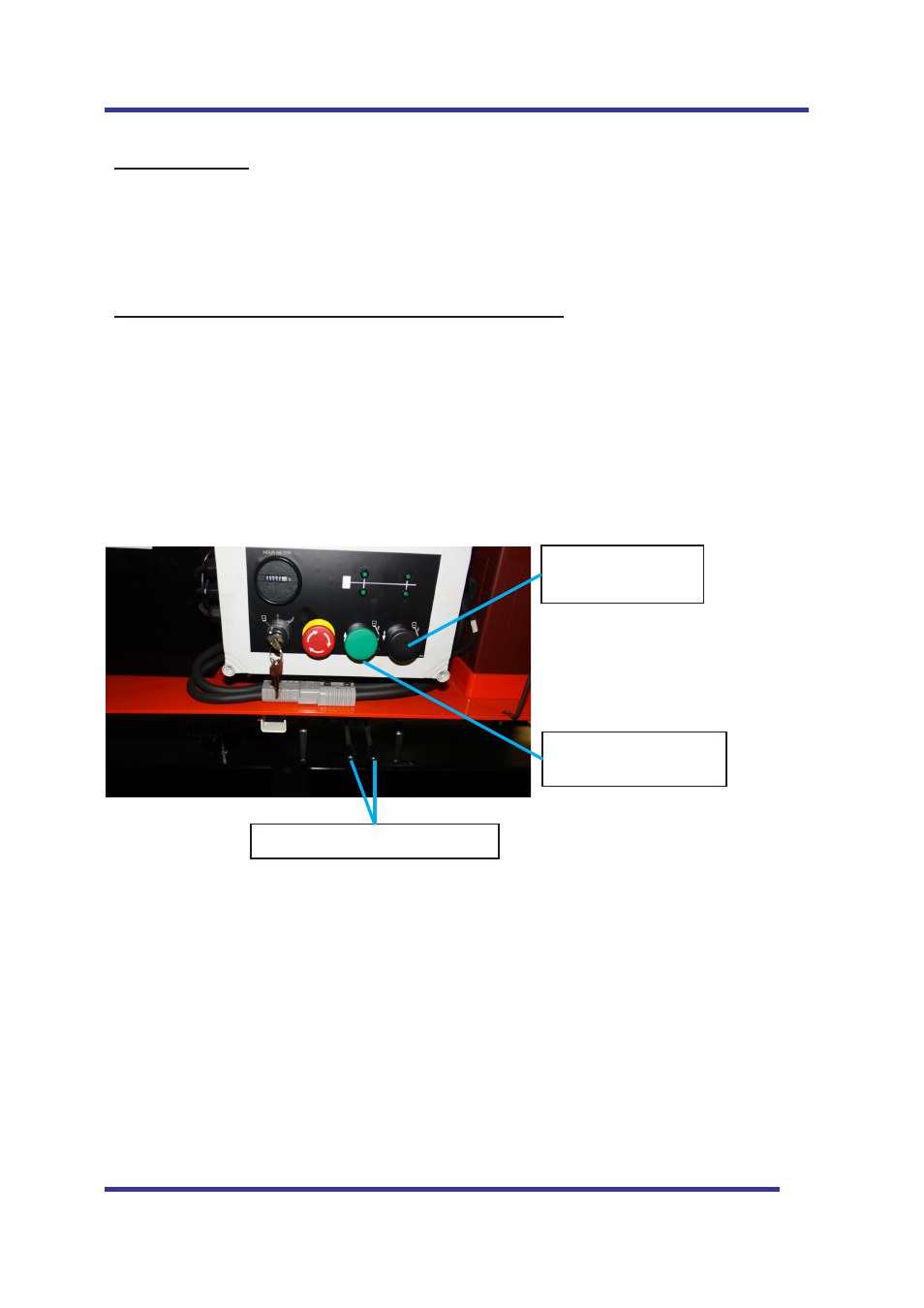

EMERGENCY CONTROLS
Fig.13
‘BLACK’ DESCENT
BUTTON
‘GREEN’
BUTTON – ELEVATE
GROUND CONTROL LEVERS
