Chapter 5 – Gauges and Displays
18 SB126J – 0192278
Fluid Level and Temperature Gauge
A gauge on the left end of the reservoir displays the
level and temperature of the hydraulic fl uid (refer to
Figure 5.5).

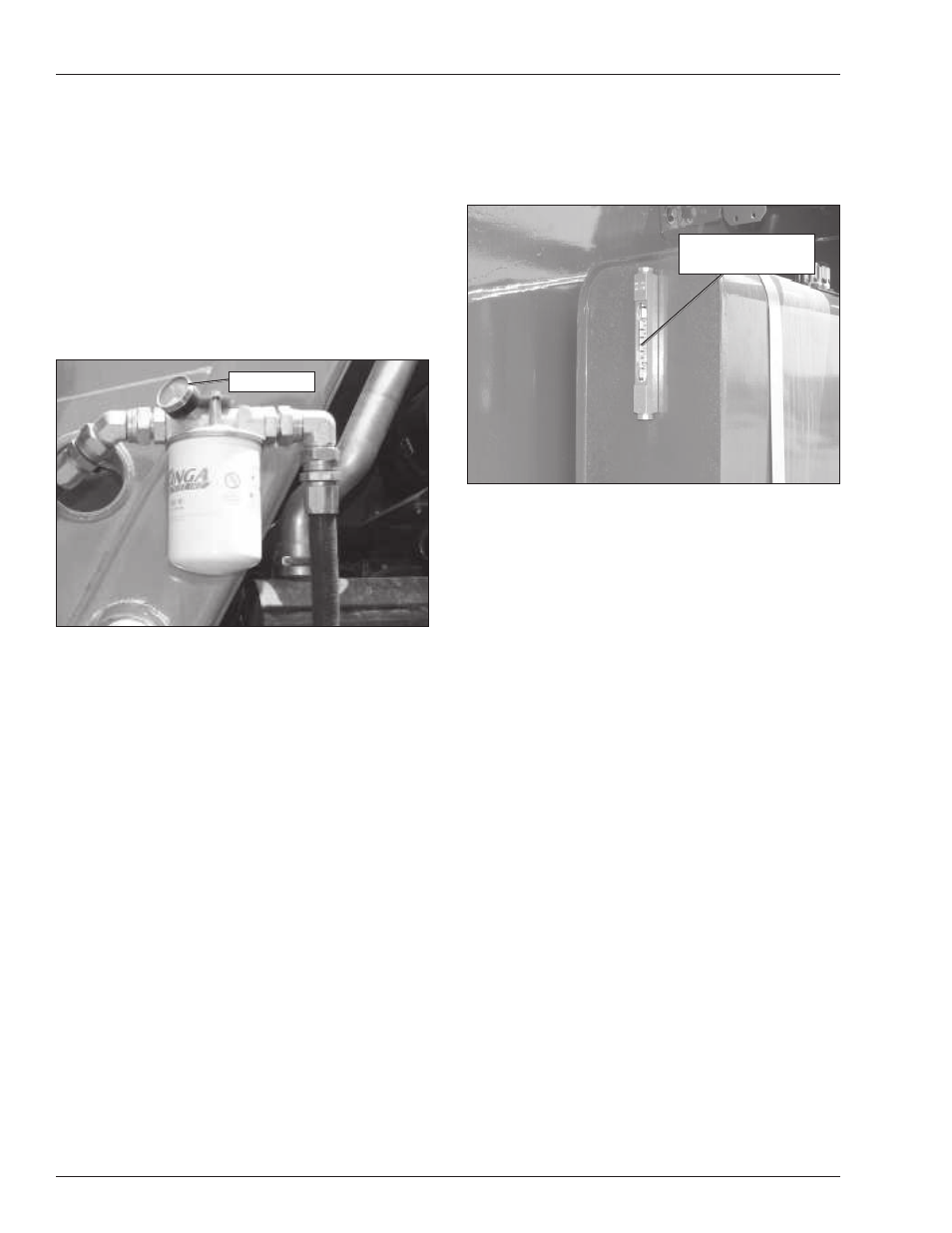

Figure 5.5 – Hydraulic Fluid Gauge
If the temperature rises above 93°C (200°F) stop ma-
chine operation and let the fl uid cool before resuming
operation.
Engine Oil
The engine oil level is measured with a dipstick. The
dipstick is the only way to accurately determine the
engine oil level. The engine oil level should always be
between the add and full marks on the dipstick.
Hydraulic Fluid Filter Gauge
The fl uid fi lter gauge (refer to Figure 5.4) is located on
the return line fi lter on top the reservoir. The reservoir is
behind the door on the right side of the turntable. Dur-
ing high pump fl ow situations, the gauge indicates the
condition of the fi lter. When the needle on the gauge is
in the red zone, it is time to change the fi lter.
Figure 5.4 – Hydraulic Fluid Filter Gauge
Filter Gauge
Fluid Level and
Temperature Gauge
