Chapter 8 – Operation
44 AB85RJ – 0421533
Use cold weather hydraulic oil as recommended in the
machine General Specifications in temperatures of 0°C
(10°F) or below.
Preparing for Operation
Use the following procedure to prepare the aerial platform
for operation.
1. Perform a prestart inspection as described in Chapter 7.
2. Place the battery disconnect switch in the on posi-
tion.
3. Close and latch the doors.
4. Before painting or sandblasting make sure the sand-
blast protection kit and the platform control cover are
properly installed. These options, when used properly
will protect the control placards and cylinder rods from
paint overspray and abrasion while sandblasting.
Lower Controls
The lower controls override the upper controls. This
means that the lower controls can always be used to
operate the platform regardless of the position of the
upper control emergency stop button.
Boom, turntable, and platform functions may be operated
from the lower controls. The lower controls may be used
for initial set up of the aerial platform, and for testing and
inspection.
Use the following procedure to operate boom, turntable,
or platform functions using the lower controls.
1. Pull the emergency stop button (refer to Figure 8.2)
outward. Insert the key in the control selector and
turn the switch to the lower control the position.

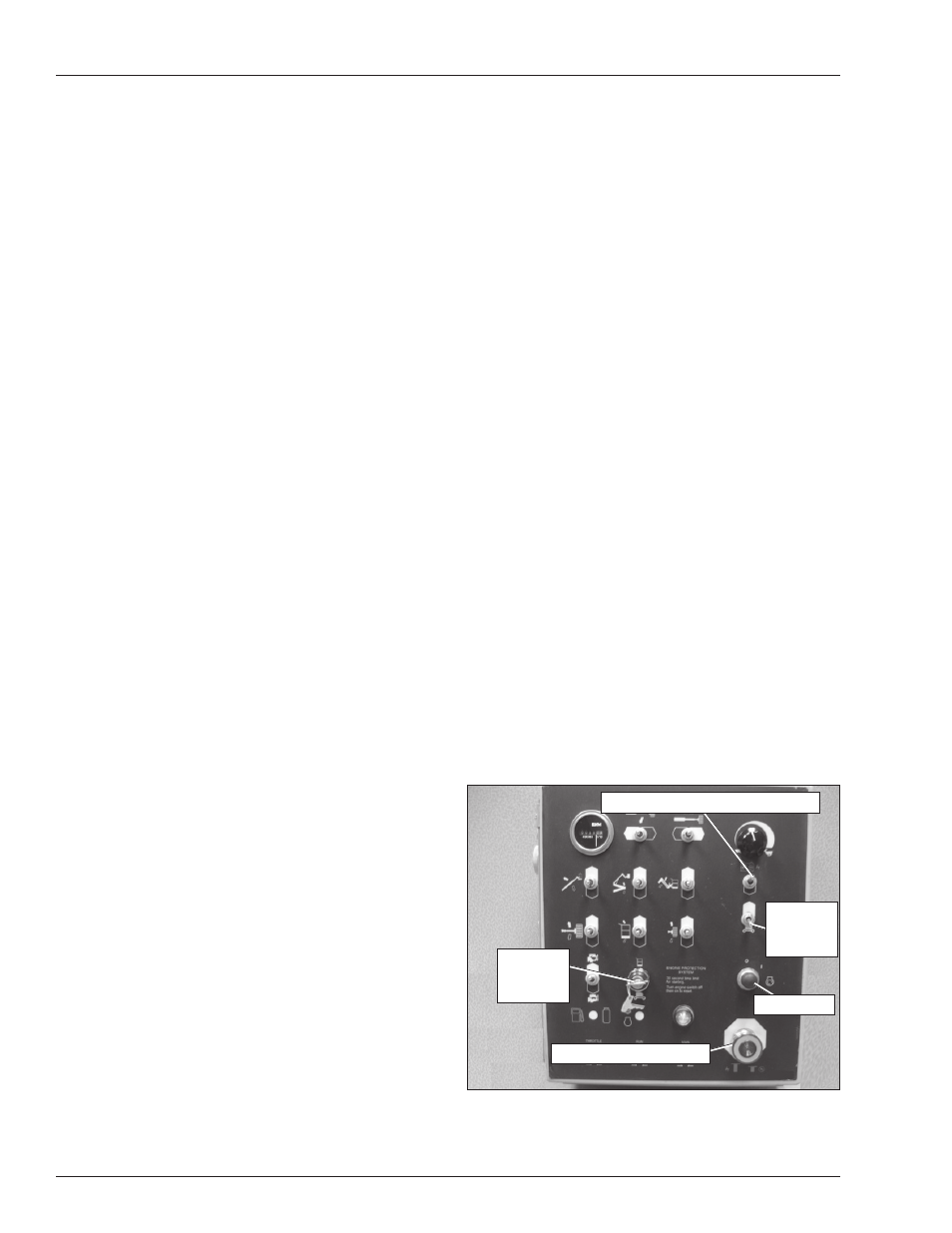

Figure 8.2 – Lower Controls
Hydraulic System Cold Weather Warm-Up
Some machines may have a hydraulic fluid warm-up
system that will automatically warm the fluid upon acti-
vating the warm-up switch. The hydraulic fluid may also
be warmed manually if the machine is not equipped with
the optional warm-up system.
A
Caution
Not all hydraulic fluid is suitable to use in the hy-
draulic system. Some have poor lubricating charac-
teristics and can increase component wear. Only use
hydraulic fluid as recommended.
Use cold weather hydraulic oil as recommended in the
machine General Specifications in temperatures of 0°C
(10°F) or below.
Hydraulic System Warm-up Switch
This system may be used to warm the hydraulic fluid when
the ambient temperature is below 0°C (32°F) and boom
movement is sluggish because of cold fluid.
There may be a toggle switch for the warm-up system
on the lower control panel and/or one on the left side of
the upper control panel.
The engine must be running and the switch used to turn
the system on must be at the same location that the en-
gine was started. For example, if the engine was started
from the lower controls, the warm-up switch at the lower
controls must be used for the system to operate.
To operate the warm-up system:
1. Start the engine and place the engine throttle in the
low position.
2. From the same control station that the engine was
started, place the warm-up switch in the on posi-
tion.
3. After the hydraulic fluid reaches 10°C (50°F) as indi-
cated on the thermometer, place the warm-up switch
in the off position.
Manually Warming The Hydraulic System
The hydraulic oil may be warmed by bottoming out the
boom extension cylinder. Raise the main boom so it is
horizontal and operate the boom retract function while the
machine is stowed. With the cylinder bottomed out the oil
flow will produce heat to warm the hydraulic oil.
A
Caution
Not all hydraulic fluid is suitable to use in the hy-
draulic system. Some have poor lubricating charac-
teristics and can increase component wear. Only use
hydraulic fluid as recommended.
Start Button
Engine/Emergency Power Switch
Control
Selector
Switch
Emergency Stop Button
Ground
Operation
Switch
