Upper Controls
The upper controls (refer to Figure 6.4) are located on
the control panel at the platform. Boom, platform, and
drive functions can be operated from the upper controls.
The following controls are located on the upper control
panel.
• Start switch
• Emergency stop button
• Drive/boom selector switch
• Boom joystick
• Jib rotation/boom extend joystick
• Drive joystick
• Drive range switch
• Steer mode switch
• Jib articulation switch
• Platform level switch
• Platform rotate switch
• Engine/emergency power switch
• Throttle switch
Start Switch
The engine can be started from the platform using the
anti-restart master switch on the front of the upper control
panel (refer to Figure 6.5).

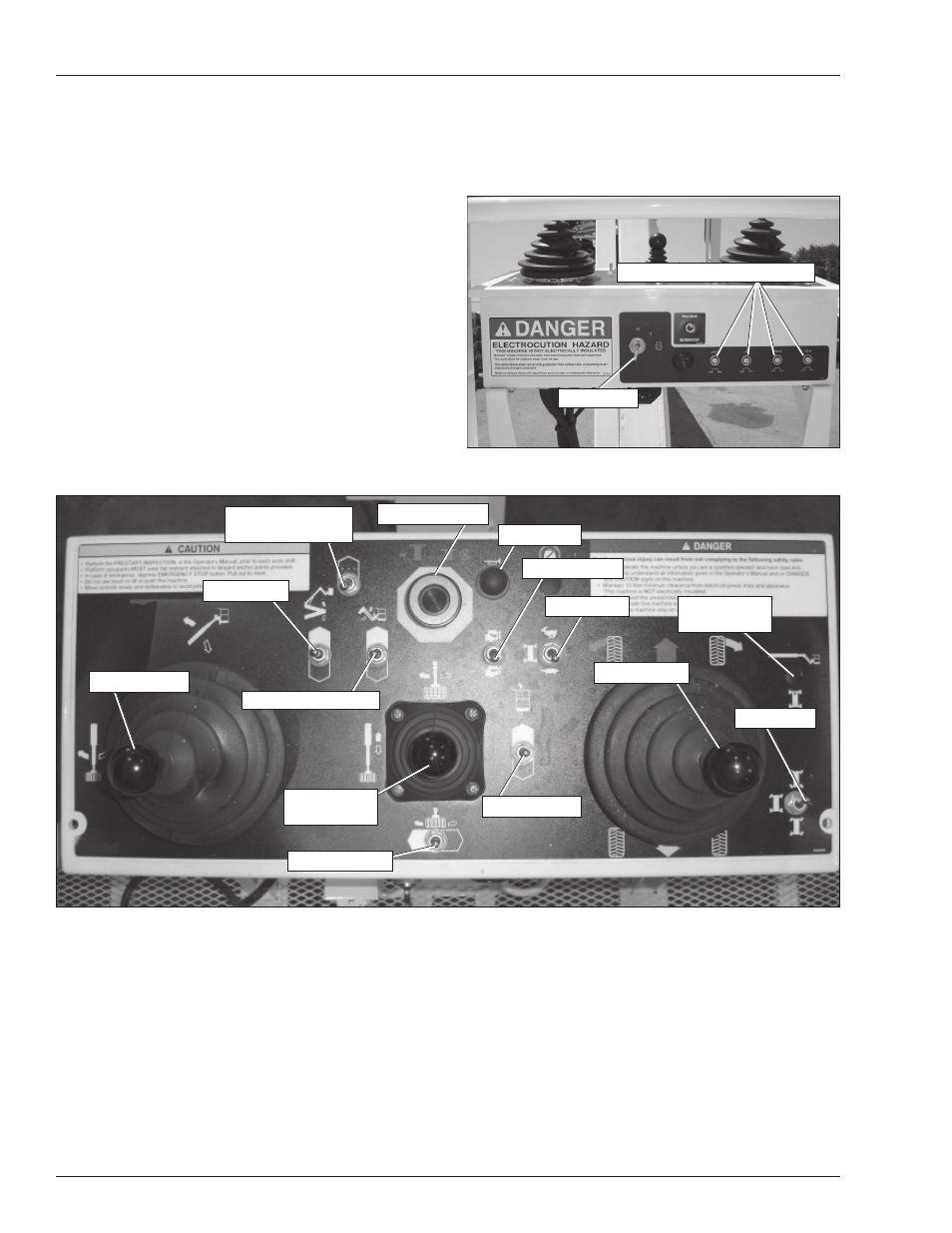

Figure 6.5 – Upper Control Panel Front
Circuit Breaker Reset Buttons
Start Switch
Drive Joystick
Boom Joystick
Throttle Switch
Boom Extend/
Jib Rotate
Steer Mode
Platform Rotate
Figure 6.4 – Upper Control Panel Top
Horn Button
Drive Range
Platform Level
Jib ArticulationSwitch
Emergency Stop Engine/Emergency
Power
Riser Switch
Drive/Boom
Selector
