17

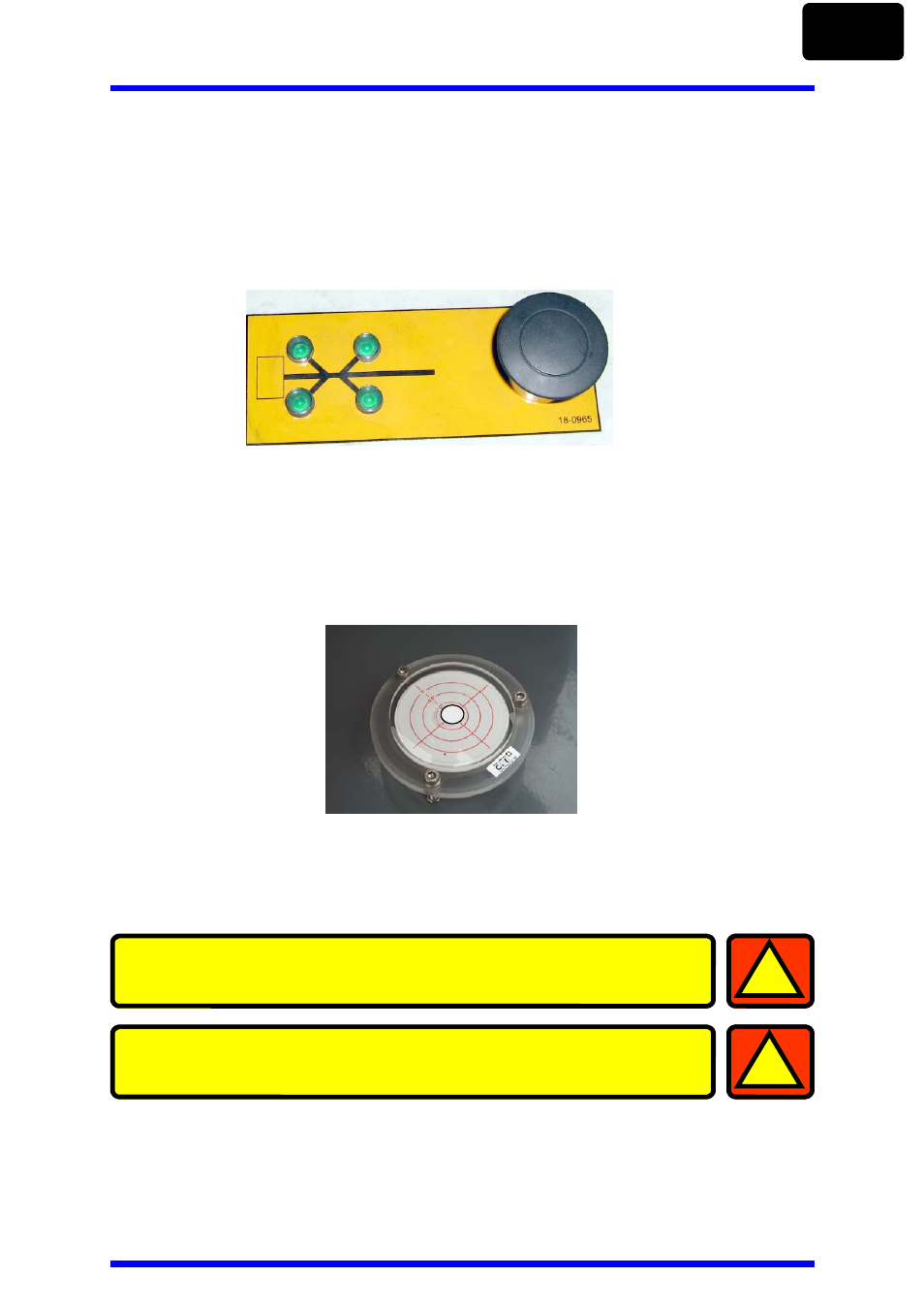

The centre console electrical box displays LED’s corresponding to each
outrigger leg. These LED’s will light when the associated outrigger leg has
extended enough for the machine to be stable when lifting. Continue lowering
the machine until all the LED’s have been lit.
5.
By using the Level indicator, lower opposite Outriggers until the bubble and
indicator ring are concentric (i.e., the bubble rests in the centre).
SETTING UP
SECTION
I
The unit is designed to operate on a supporting surface of
minimum bearing strength of 50N/cm
2 .
Only when the Outriggers have been correctly deployed and the
checks have been successfully completed, should you progress to
the next section.
