4
Operation
Before operating work platform insure that:
Pre-operation and safety inspection has been
completed, and any discrepancies have been
corrected.
The operator has been thoroughly trained on the
operation of the machine.
The work area is clear of all obstructions, holes,
drop-offs, or persons in the route of travel.
The surface is capable of supporting wheel loads.
Refer to figures one and two for control locations.
Emergency Stop
At any time during operation, press the emergency stop
button to stop all functions in an emergency.
Service Horn
At any time during operation, press the service horn
button to sound an audible warning if necessary.
Always wear an approved fall restraint properly
attached to designated platform anchorage point
when driving or elevating the machine (see figure 3).
Attach only one fall restraint to each anchorage
point.

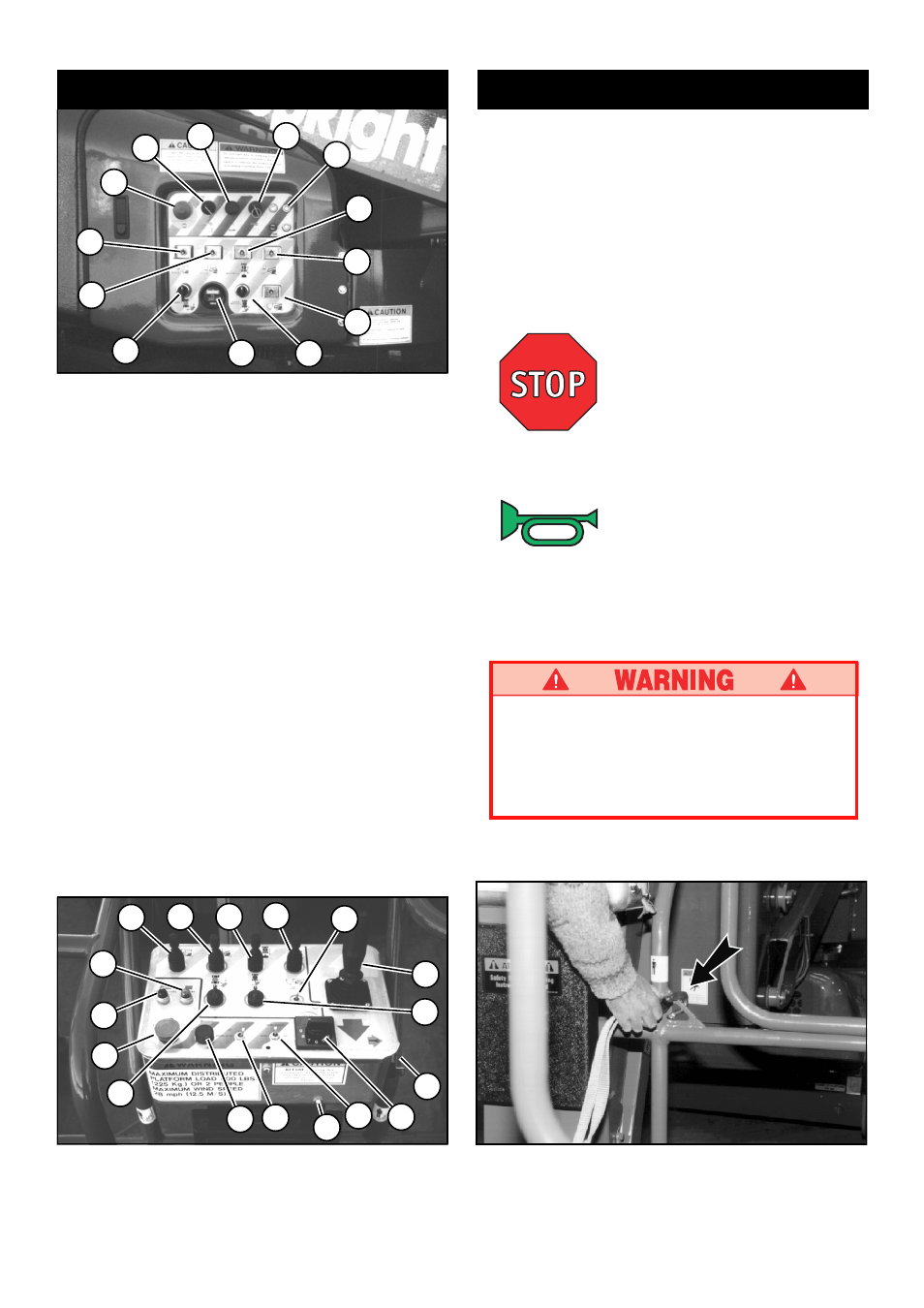

Figure 1: Chassis Controls
Note: The following list corresponds to the
numbered items in figures one and two.
1. Emergency stop.
2. Diesel Engine start.
3. Glow Plug button.
4. Keyswitch
5. Control fuses.
6. Riser control.
7. Upper boom control.
8. Boom extension control.
9. Jib control.
10. Turret rotation control.
11. Platform rotation control.
12. Platform level control.
13. Battery condition indicator & Hourmeter.
14. Service horn button.
15. Drive control handle.
16. Function speed control.
17. Foot switch (located on platform floor).
18. Out of level indicator.
19. Low Voltage indicator.
Controls and Indicators
Figure 2: Platform Controls Figure 3: Typical Fall Restraint Anchorage Point
3
2
1
6
7
10 13 11
12
9
8
5
4
12 9 8
15
11
7 6
19
18
1
10
14 3
5
2 16
4
