Kinesis FSMJ4 Savant Elite Programmable Foot Pedal - Manual (Page 9)

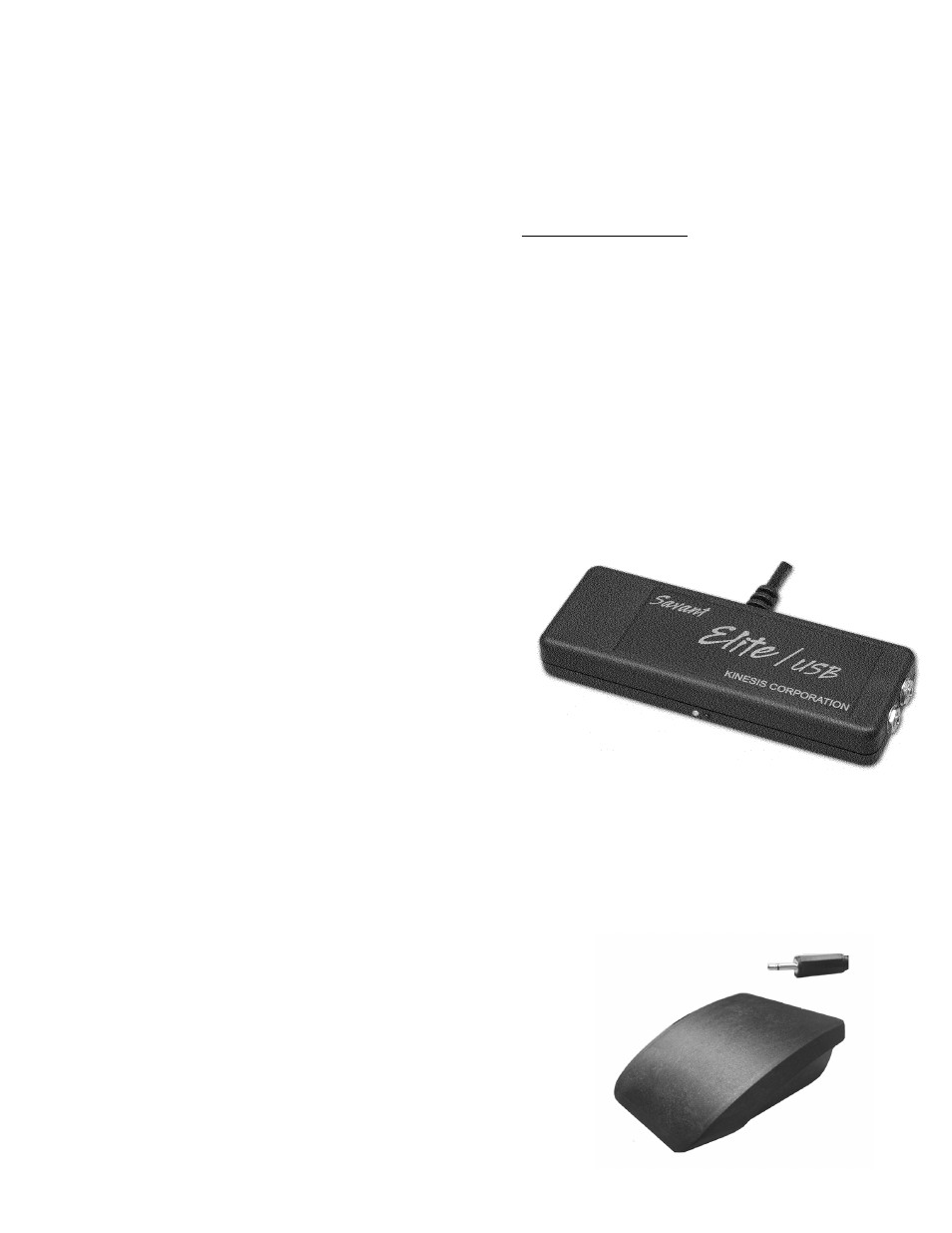

Single pedal, FS007MP, with 9'
cable & miniphono connector.
Use with jack-equipped Kinesis
devices
Dual jack control module, FSMJ2, bundled with
one single pedal as FS10J (four-jack control
module available separately as FSMJ4)
Optional accessories
Some Savant Elite models are equipped with one or more mini-phono jacks, each of which
can accept either a single foot pedal or a hand trigger. Jack-equipped models may be used
with a Kinesis hand trigger (FS002HT8, 8 foot cable), or with a stand-alone foot pedal
(FS007MP, 10 foot cable). Do not attempt to connect any other device to the jack. Extension
cables are available from Kinesis for both the USB cable and the mini-phono cables of stand
alone pedals and hand triggers (contact Kinesis at [email protected] or 800-454-6374).
Model-specific Features
The various models of Savant Elite programmable devices have unique features which are
described below.
Single pedal bundled with control module (FS10J)
This unit is optimal where space is at a premium, since a single foot pedal can be positioned
near the user with the control module ten feet (or
more, using an available extension cable) away.
The single pedal model includes a Savant Elite
control module (FSMJ2) with two mini-phono
jacks. This is bundled with a single front-hinged
foot switch equipped with a 10 foot long cable.
An additional pedal (FS007MP) or hand trigger
(FS002HT8) may be purchased separately for the
second input jack.
The control module is equipped with small rubber feet, but for
additional stability, you may attach it to a surface with a removable self-adhesive “hook &
loop” material (provided).
Factory programming for :
Jack 1 (front): Left mouse button
Jack 2 (rear): Right mouse button
9
