Synergy 8569-03 - Dodge 2003-2012 AAM 9-1/4 Front Axle Truss Kit User Manual
Page 5
7) Truss plate should fit directly under truss tube and align with rib on center section as shown. Note, rib
on casting is not in the same plane as the truss tube, however the entire length of truss plate should fit so
it is weldable.

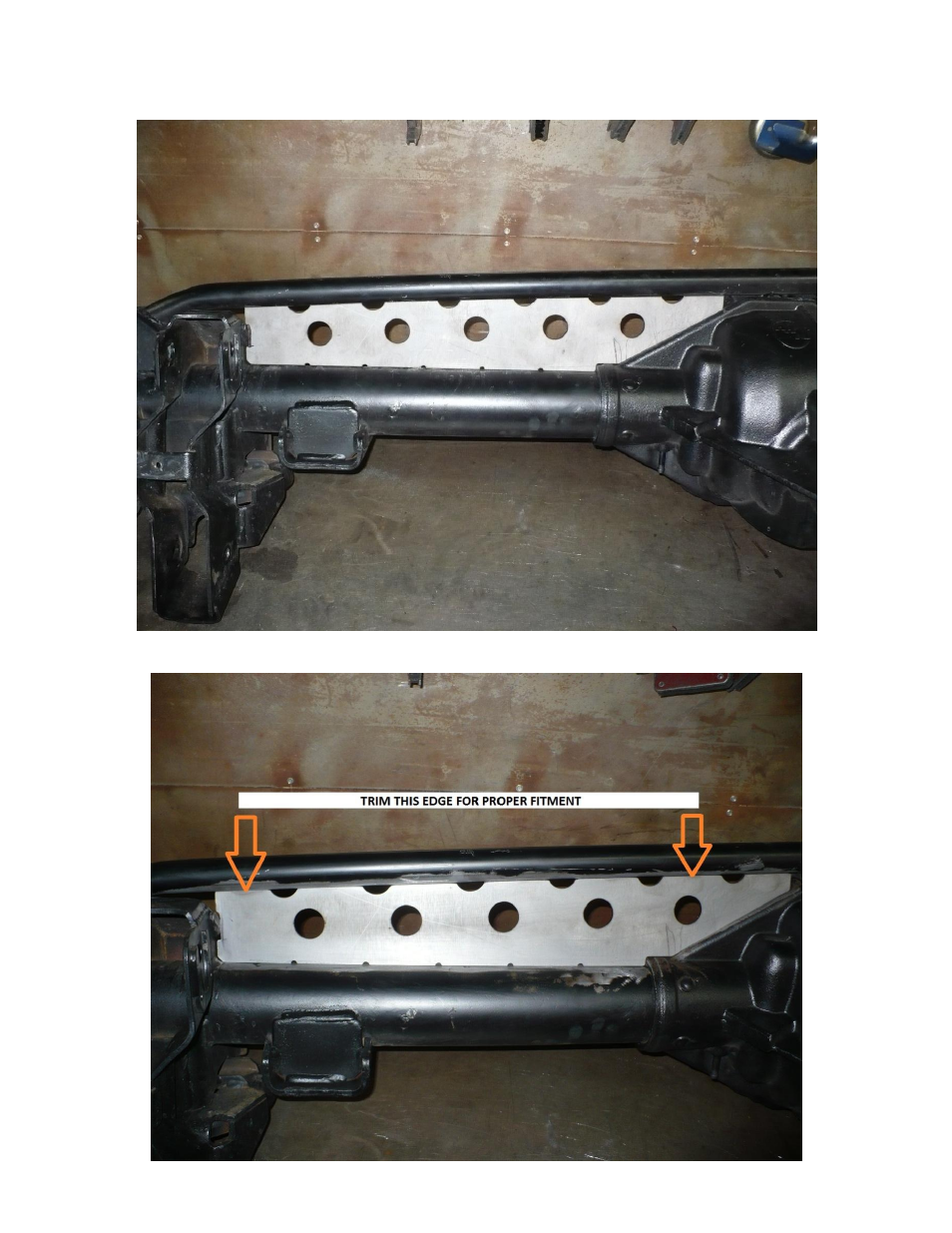

8) Truss plate may end up being slightly tall to allow for variances in tube and axle fitment. If needed trim
the edge of the truss plate which meets with the truss tube until proper fitment is achieved.
