Synergy 8078 - Jeep JK Rear LCA Skids w/ Integrated Shock Mounts User Manual
Page 8

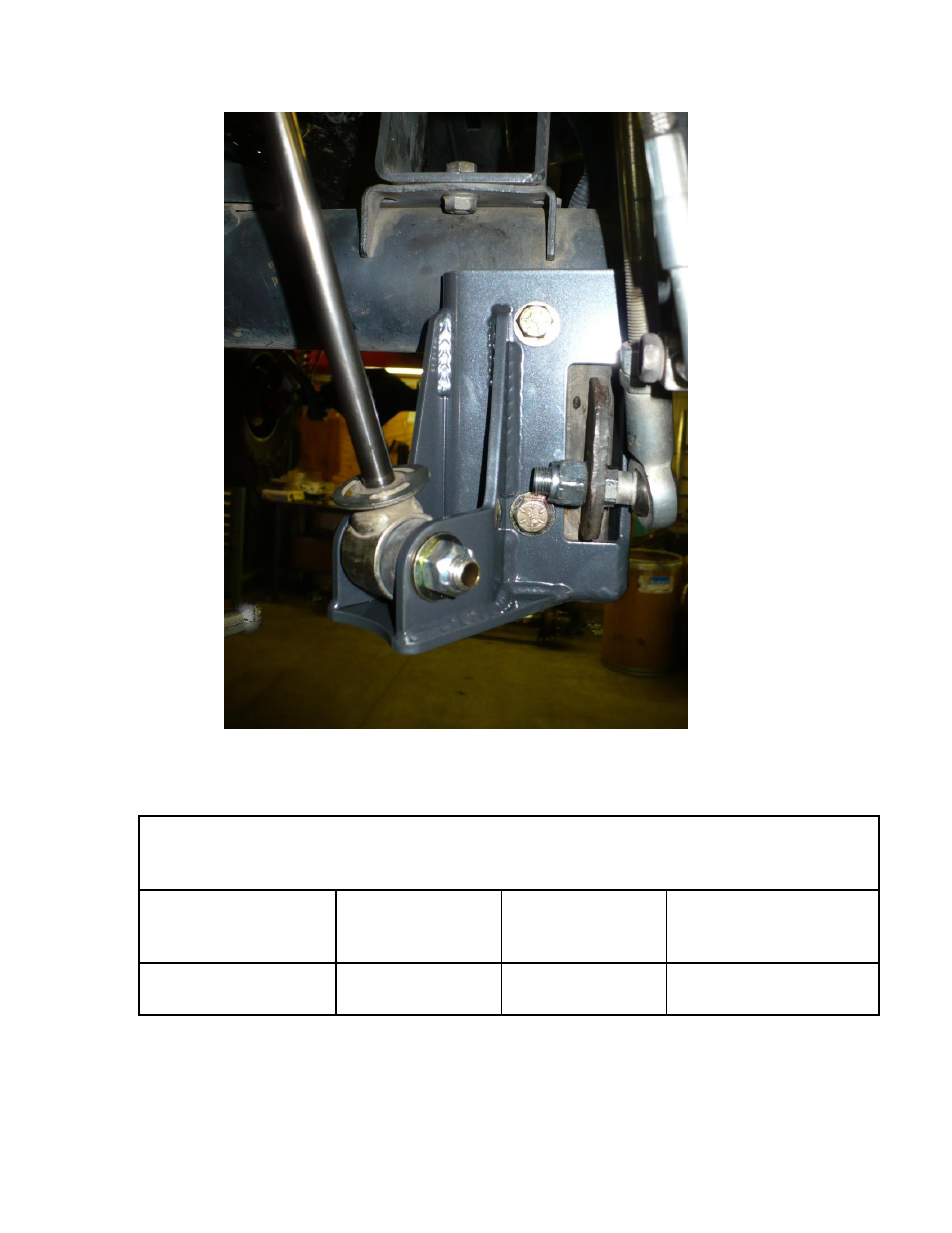

13) Note, now is a good time to cycle suspension to check for proper bump-
stop spacing to ensure shock does not act as bump stop. Use the
approximate collapsed shock measurements below as a reference.
APPROXIMATE COLLAPSED SHOCK LENGTHS
LCA LENGTH = 20-1/4"
UCA LENGTH = 18-1/8"
2" TALL BUMP-
STOP SPACER
3” TALL BUMP-
STOP SPACER
4” TALL BUMP-STOP
SPACER
STOCK UPPER
MOUNT
15"
16"
16-3/4"
14) Reinstall wheels and lower vehicle onto ground. Tighten Lower Control
arm bolts to 125 ft-lbs. Reinstall Track-bar bolt and tighten to 125 ft-lbs.
