Synergy 5711 - Jeep JK Budget Skid Plate System User Manual
Page 5

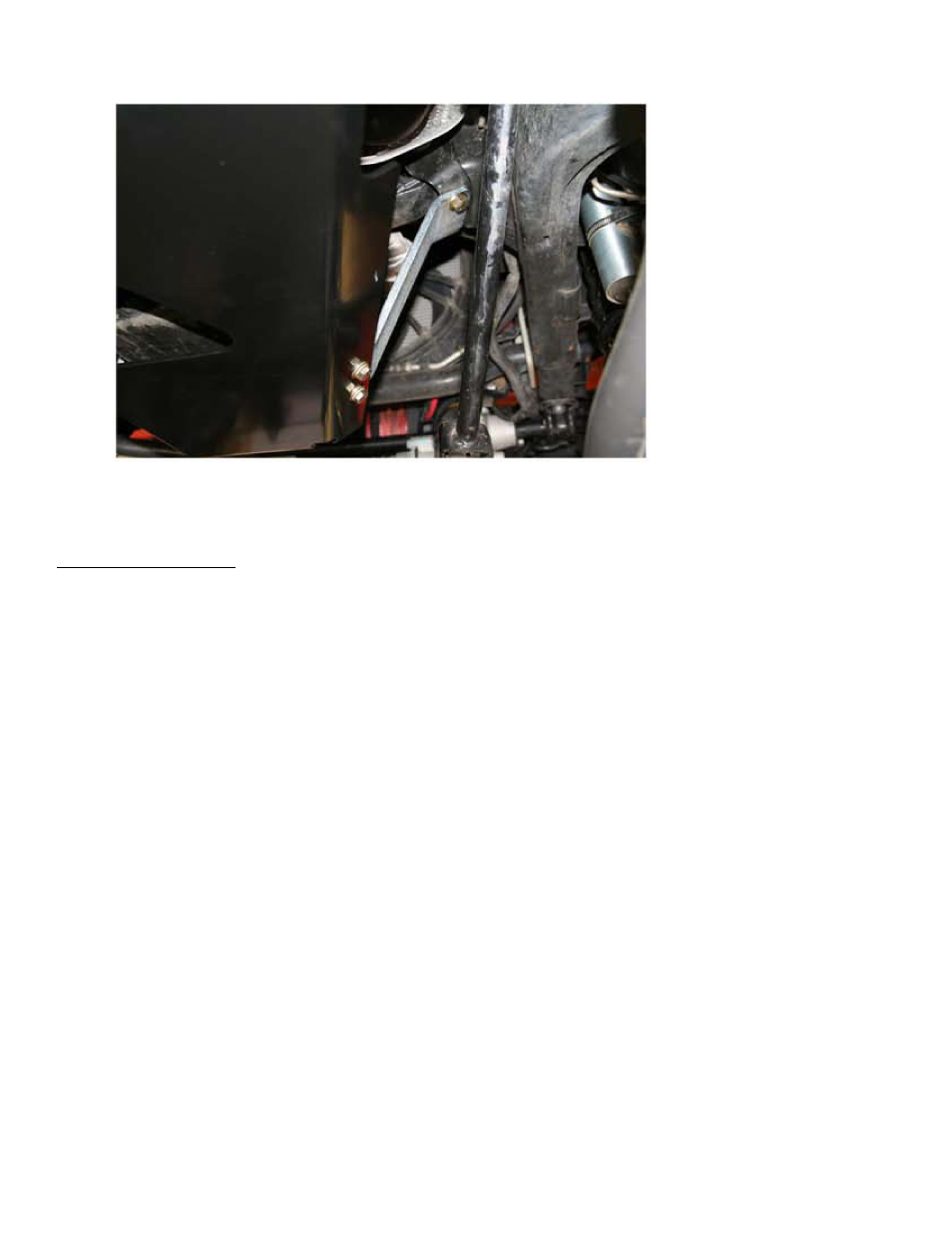

11. Install the passenger side frame brace as shown with the larger hole in the top. Use a W' bolt with a
flat washer and flange nut on the top and two 3/8" bolt with a lock nut and flat washer on the bottom.
12. Adjust the side to side position of the front engine skid and tighten all the mounting bolts. Tighten the
3/8" bolts to 20 ft-Ibs and the W' bolts to 35 ft-Ibs.
Installation is Complete
