Synergy 5710 - Jeep JK Standard Skid Plate User Manual
Page 4

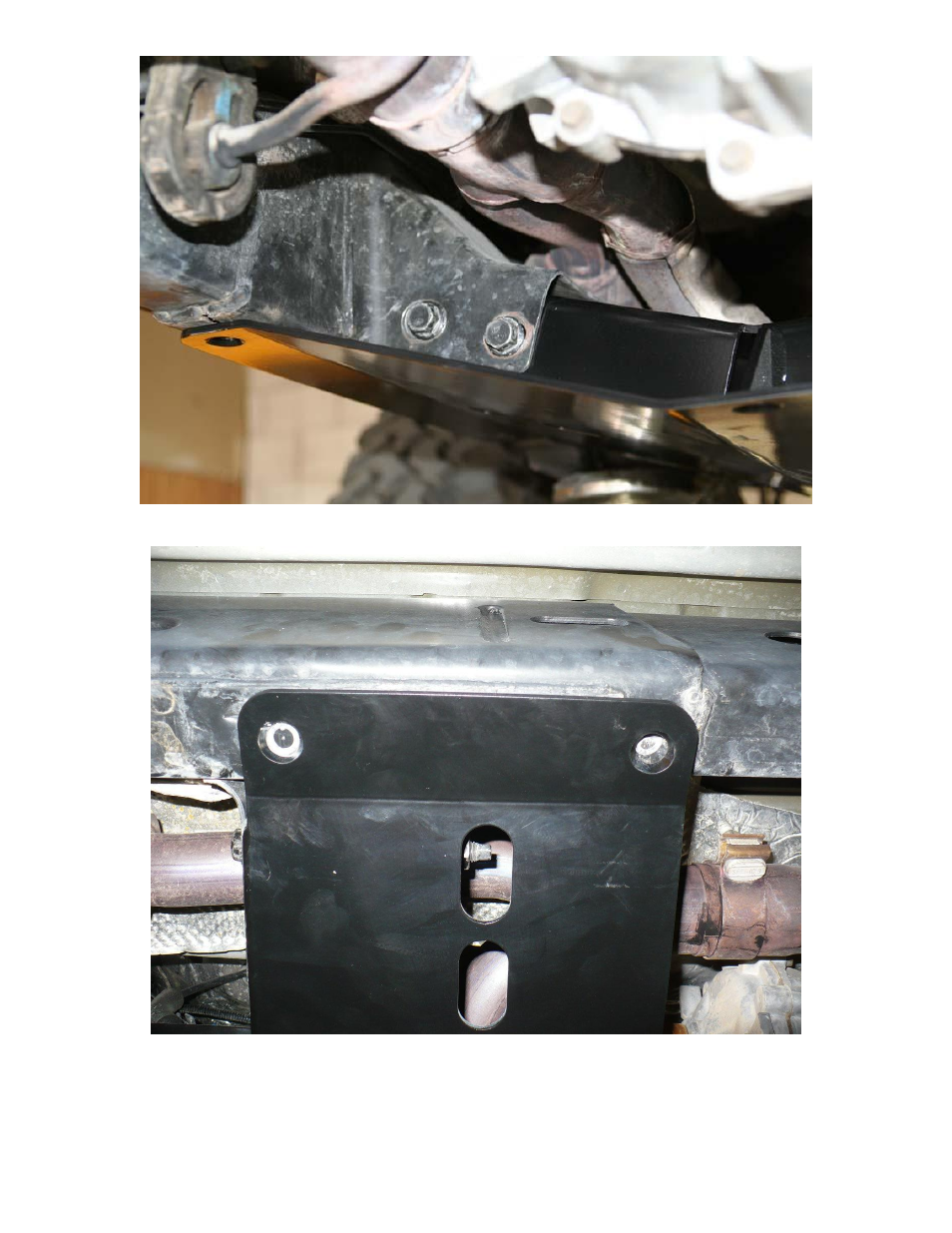

7. At this time, mark and drill the holes for the countersunk bolts. There are 4 total for the transmission skid.
8. Drill using a 29/64 drill bit and tap the holes with a ½-20 UNF hand tap. Drilling and tapping can be done
with the transmission skid in position, however if powder coat damage is a concern, we suggest removing
the skid plate prior to drilling.
9. Install the supplied flat head allen bolts. You may need to use an alignment bar to align the skid plate holes
with the frame holes. Tighten these bolts to 35 ft-lbs. We recommend using anti-seize on all of the flat head
allen bolts for easy future removal.
