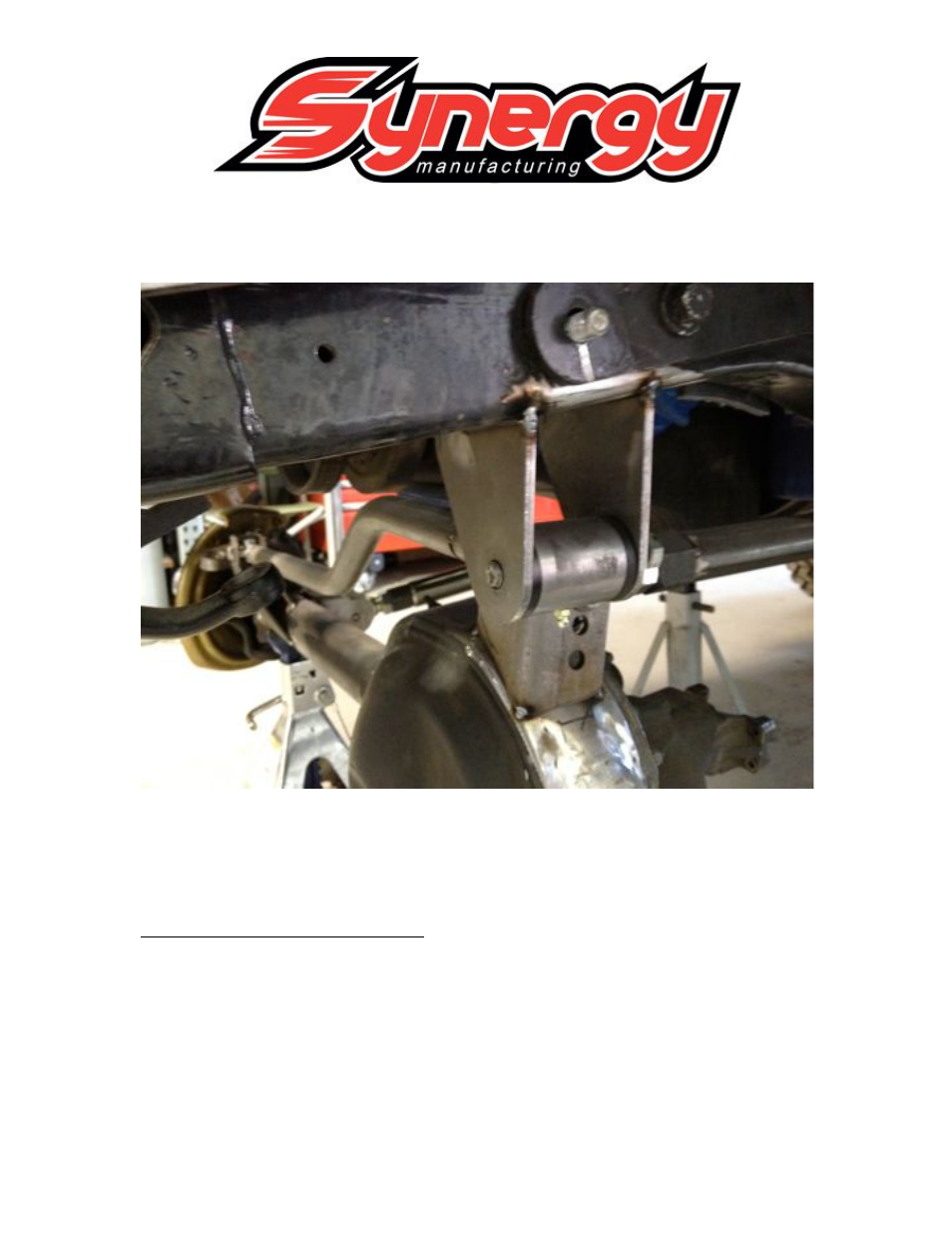

30. Assemble the bushing at the frame end and rod end at the axle end of the track bar.
31. Cut the track bar tube to the appropriate length, you may need to put a bend in the
track bar to clear the differential, cycle the suspension to check for proper clearance.
32. Tack weld the track bar tubing to the frame bushing and rod end tube bung.
FINAL CHECK AND ASSEMBLY
33. The following components are not covered in these instructions, but now would be
the time to address them
• Shock and spring mounts
• Steering
• Anti-sway bar mounts
• Brake lines
• Drive shaft angle or slip
• differential breather length
