Installation – Synergy 5019 - Jeep JK Thru Coil Front Air Bump Kit User Manual
Page 2
INSTALLATION:

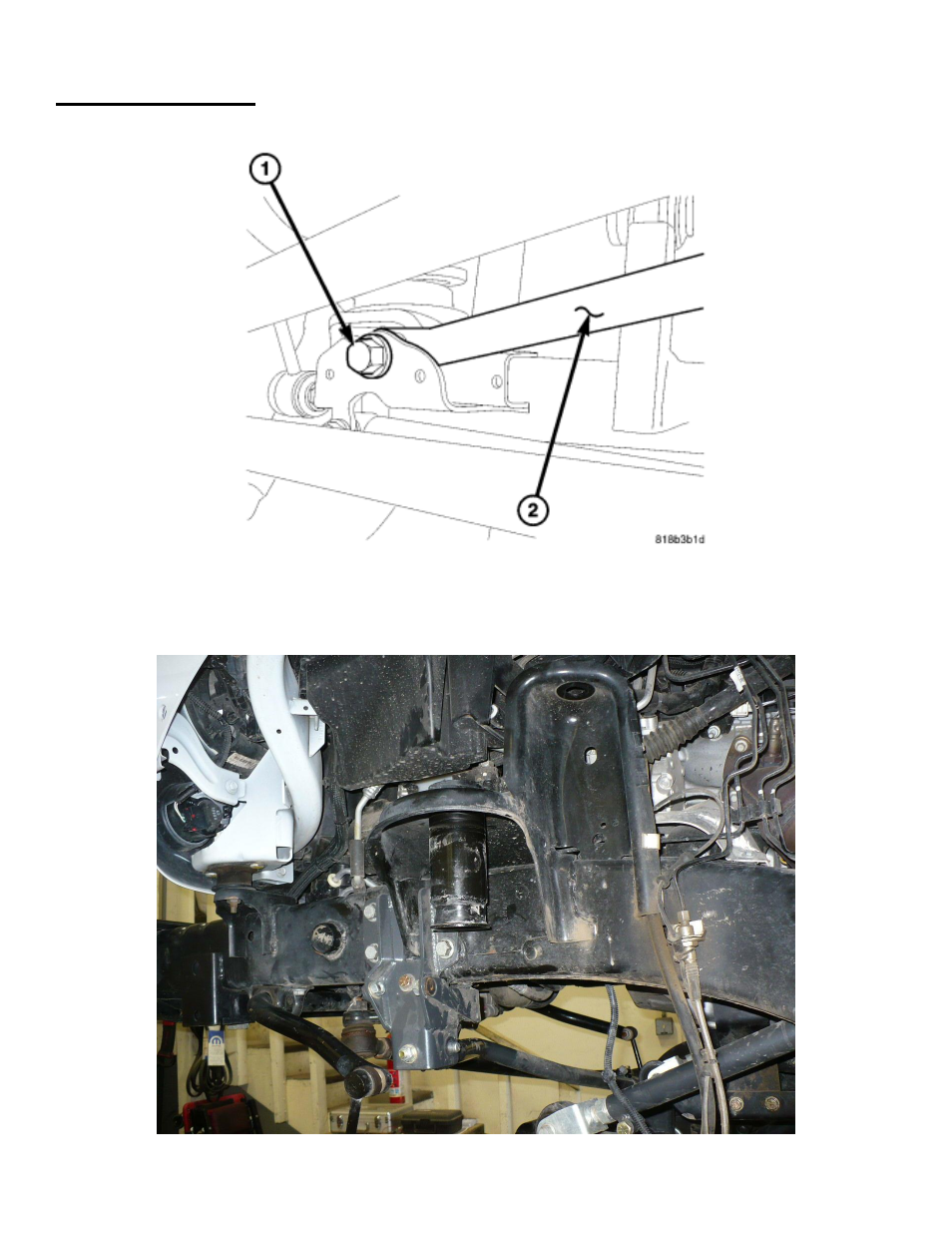

1) Begin by removing the track bar bolt at the axle side. Bolt # 1 in the image below. Use a 21mm socket /
wrench for removal.
2) Next, jack the vehicle up and support it in a manner that will allow the suspension to hang free. Remove
the front tires.
3) Remove the plastic inner fender wells.
4) Loosen / remove components to the point of coil spring removal. Remove coils and factory bump-stops.
Front suspension should be disassembled to the point shown in IMG 4.1 below.
IMG 4.1 Front suspension tear down.
