Synergy 5012 - Jeep TJ/YJ/CJ Universal Shock Hoop User Manual
Page 4

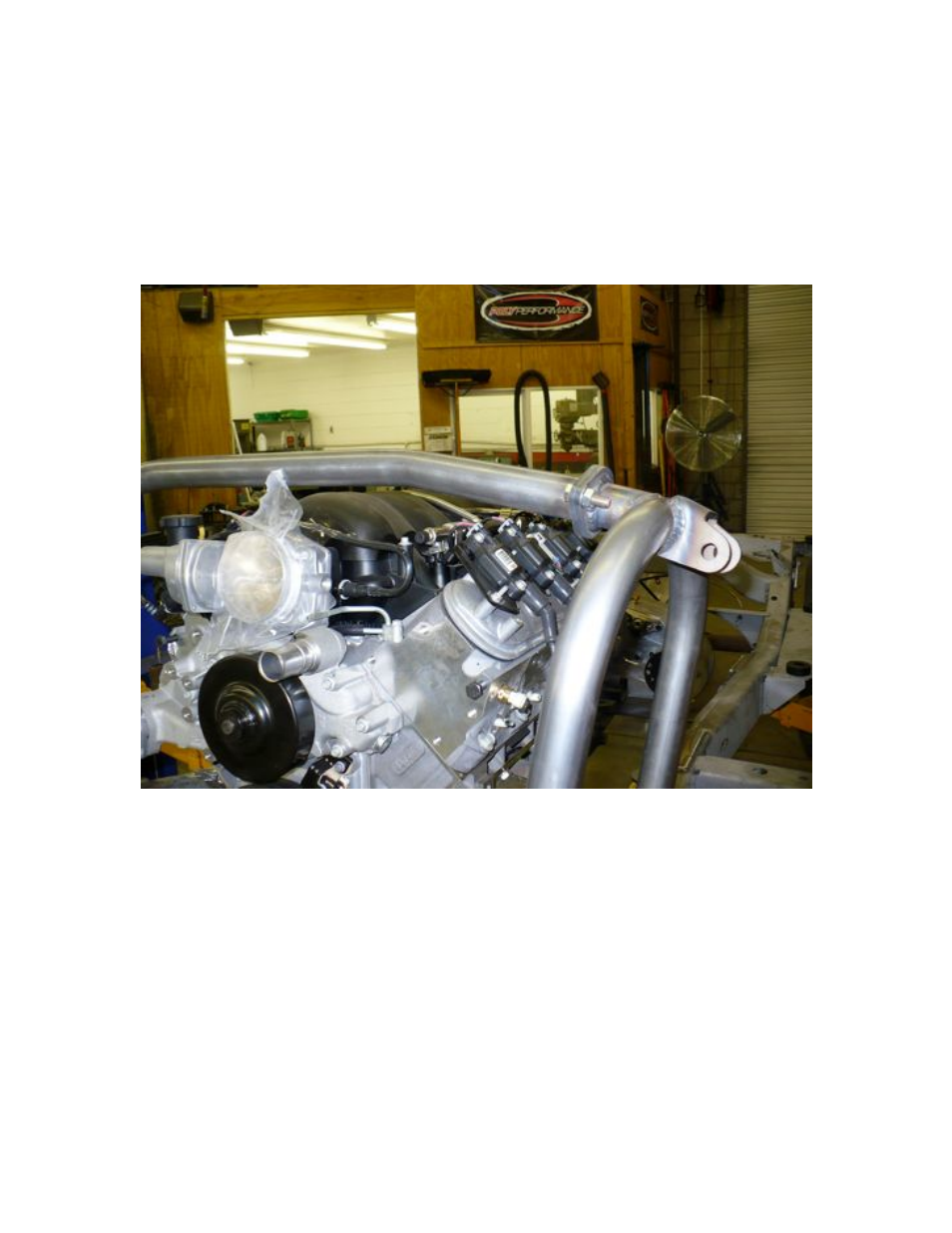

6) To start, tack tube flanges to notched tube stubs.
a. Bolt second set of tube flanges to the ones tacked to notched tube stubs.
b. Hold tube stubs in desired location to determine how much material (if
any) will need to be removed from the ends of the bent cross tube.
c. Cut equal amounts off of each side.
7) Have one or 2 other people hold the cross tube and tube stubs together in desired
location for tacking. Once satisfied with cross bar fitment and location, fully weld
into place along with the rest of the kit installed up to this point.
