Synergy 4034 - Air Compressor Bracket 12+ JK w/ 3.6L Pentastar User Manual
Page 2
2

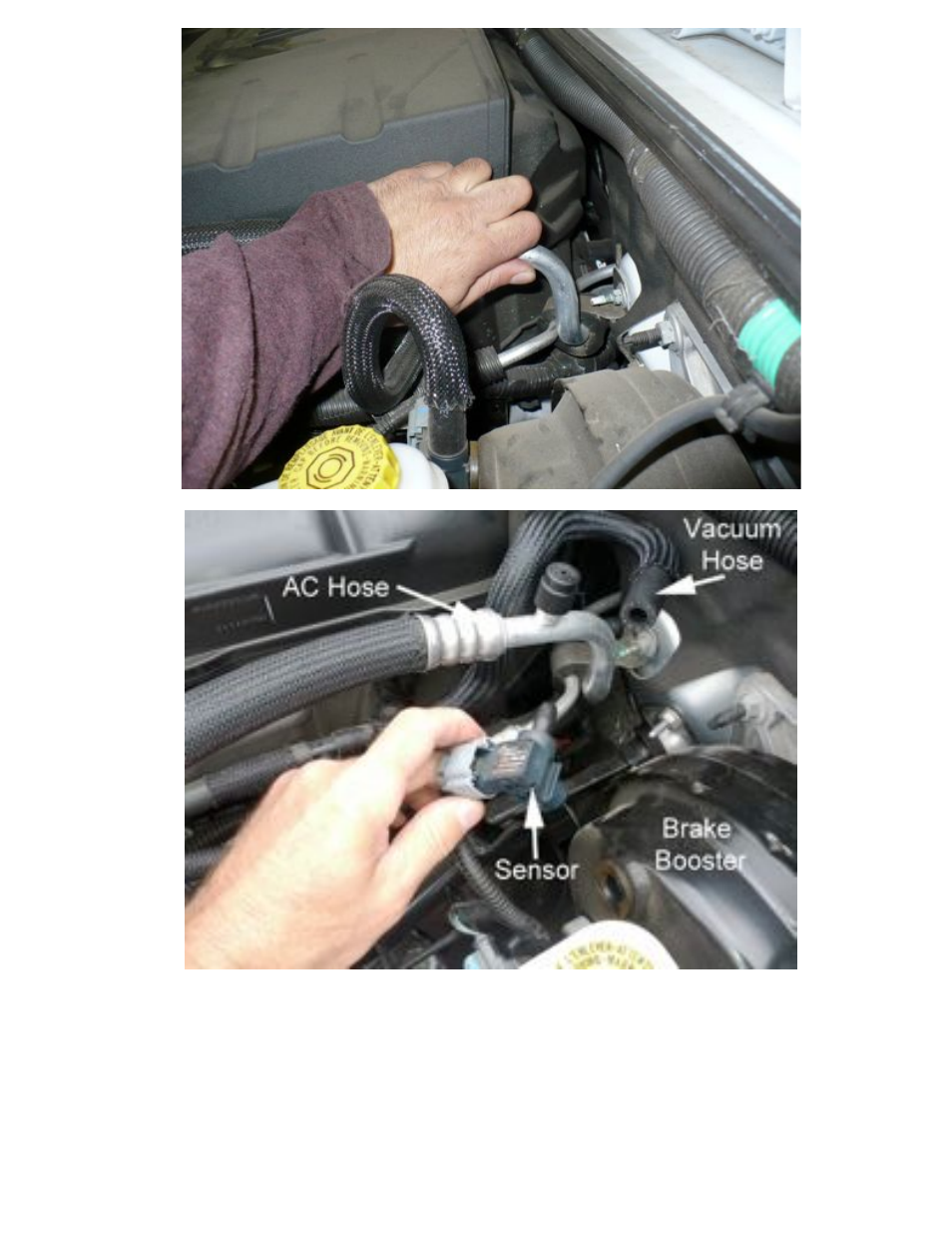

2. Re-route the Vacuum Hose behind the AC line, as shown in the following picture:
3. Insert the 90 degree plastic fitting (attached to small hose) into the brake booster. You'll have to
press hard, but it will go.
4. Install the sensor into the small hose (attached to plastic 90 fitting) and ZIPTIE the hose to the
sensor fitting.
5. Install the rerouted vacuum hose onto the sensor and zip tie tight.
