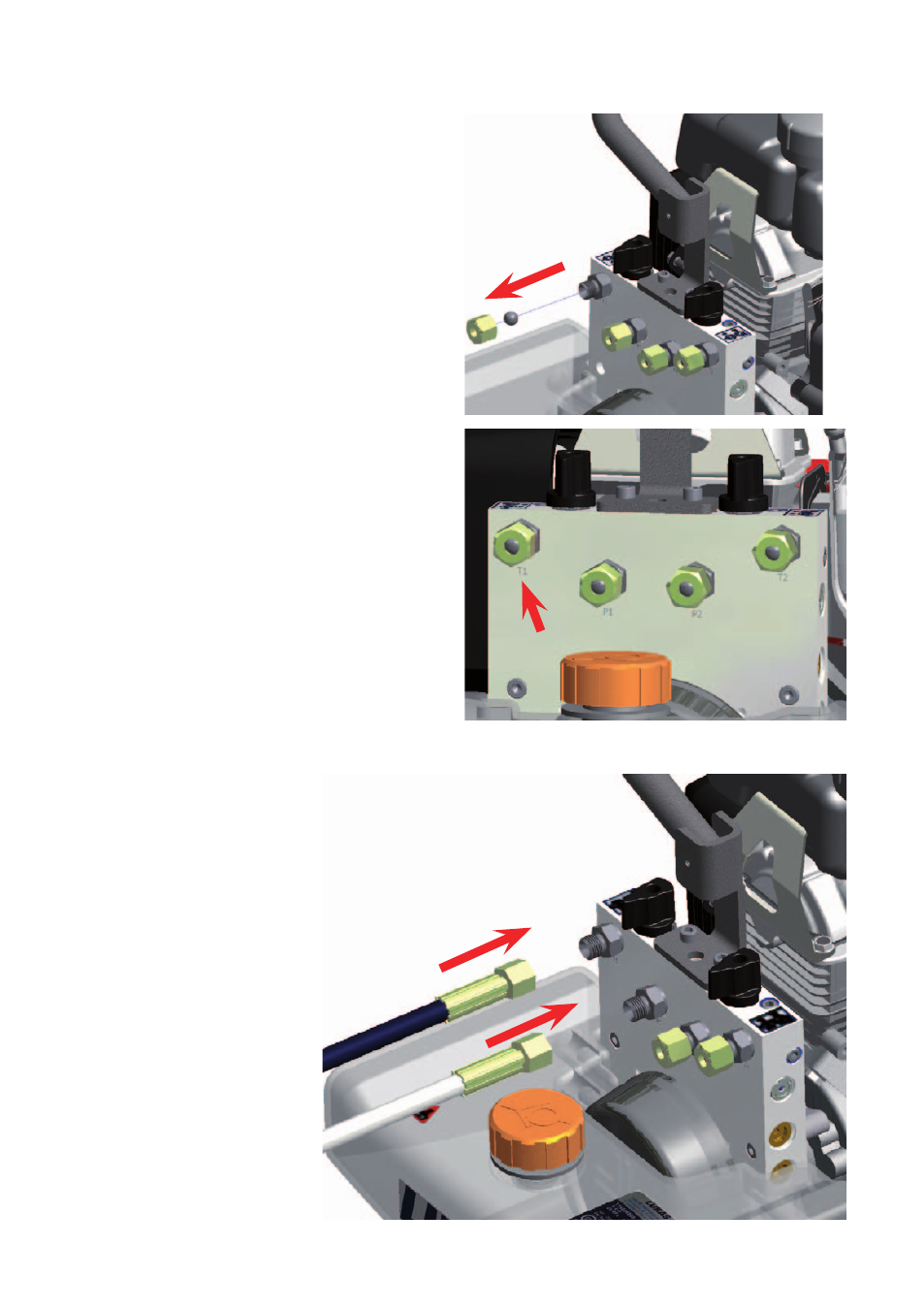

Connecting hose assemblies:
Remove blind plug consisting of union nut
and steel ball.
Connection labelled with T1 or T2:
Return line (blue)
Connection labelled with P1 or P2:
Supply line (grey)
Fit the corresponding hose line and tighten
the union nuts to a torque of 40 Nm.
Connect equipment using mono or quick-
disconnect couplings to mounted hoses.
