WARNING / CAUTION!
Before connecting the equipment you have to pay attention that all
used components are suitable to the max operation pressure of
the pump unit! In the case of doubt you have to inquire LUKAS
directly!

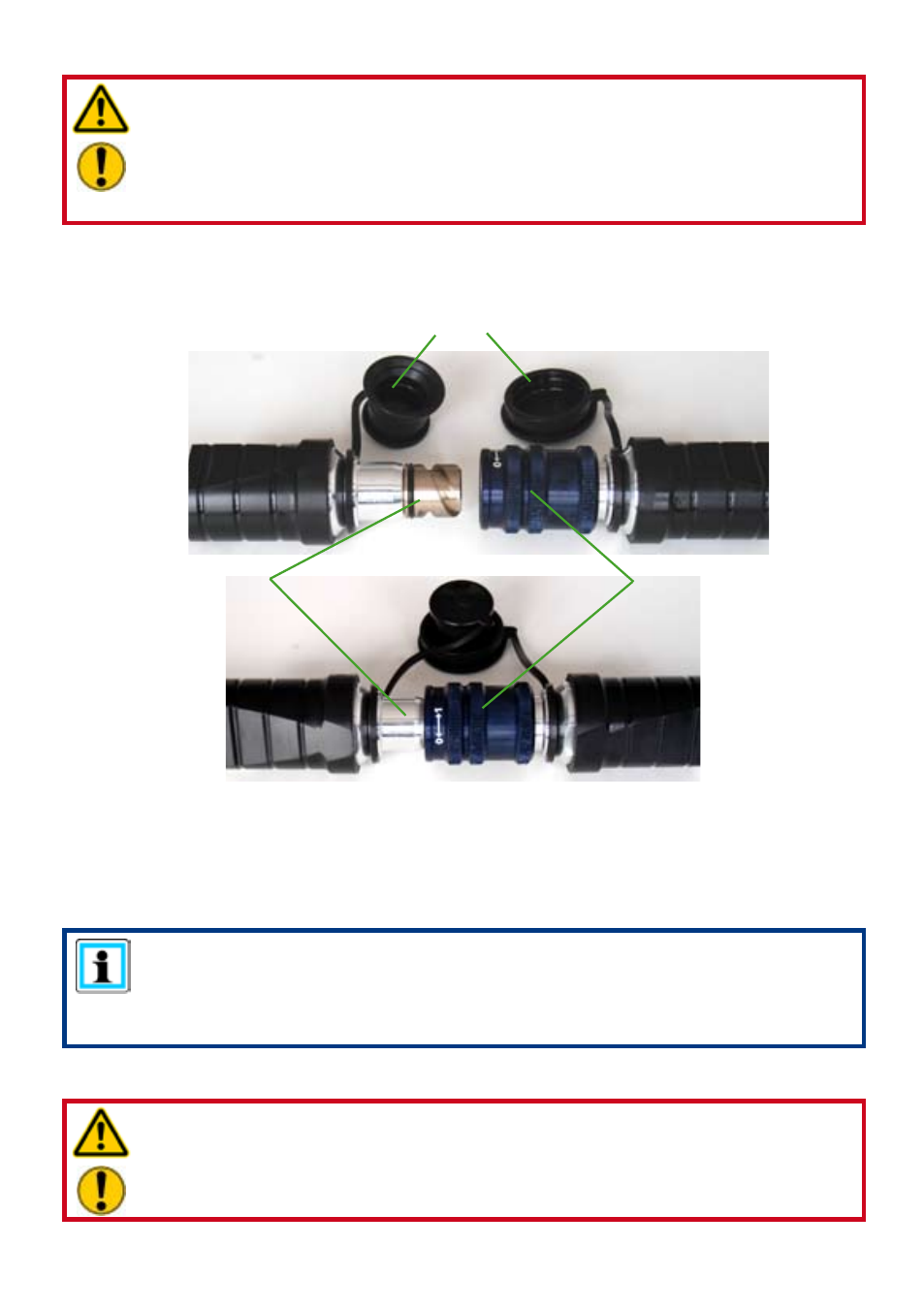

mono-coupling halve
(male)
mono-coupling halve
(female)
dust protection caps
Before coupling, remove dust protection caps, then connect male and female, and turn the
locking sleeve of the female to direction „1“ until the locking sleeve locks into place. The
connection has now been established and secured. Decoupling is by turning the locking
sleeve to direction „0“.
The equipment can also be coupled under pressure provided the connected equipment is
not activated.
The equipment is connected to the hydraulic pump via mono-coupling halves (male and
female).
5.2 Coupling the mono-couplings
REMARK:
We recommend coupling the coupling halves in a pressureless state, when
working in areas with low ambient temperature and the usage of extension hose
assemblies / hose reels, otherwise coupling could need very high expenditure
of force.
To protect them from dust, the accompanying dust protection caps must be put back on.
WARNING / CAUTION!
The mono-couplings may not be screwed off the hose assemblies and / or the
hose assemblies be confused!
