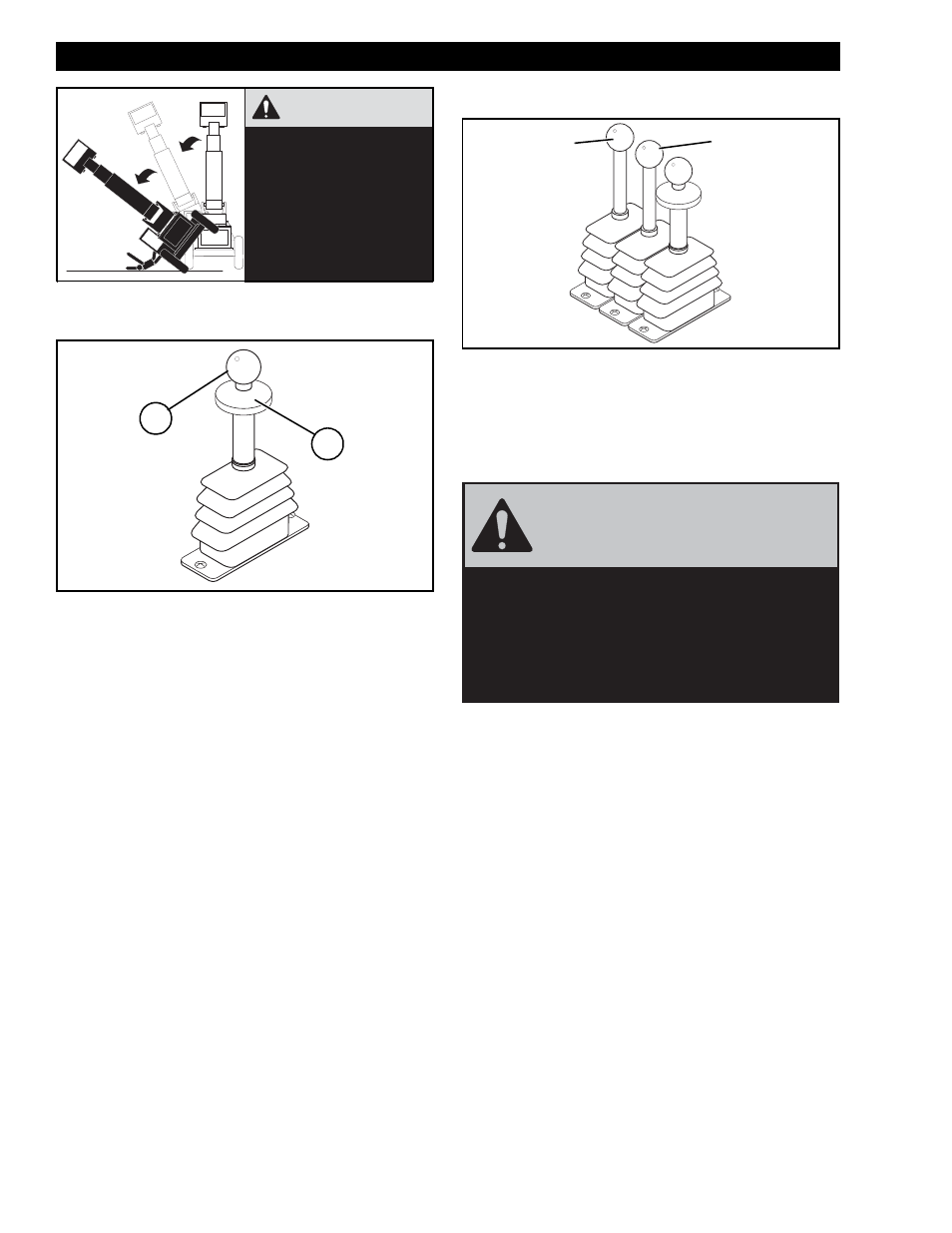

INSTRUMENTS AND CONTROLS
FRAME TILT CONTROL
Frame Tilt Control
The frame tilt control is used to level the vehicle laterally
(side-to-side) up to 10°, left or right. The lateral angle of
the vehicle, relative to level ground, is shown on the
frame level indicator (see “Frame Level Indicator” on
page 23). The control is functional only while the engine
is running.
The control lever (1) is equipped with a safety lock to
prevent unintentional operation. Lift the lock ring (2) to
unlock the lever and allow it to be moved left or right.
Return the control lever to center position and release
lock ring to secure lever.
The lever can be moved either left or right, tilting the
frame accordingly. To level the frame, move the lever in
the direction you want the ball in the frame level
indicator to move.
OUTRIGGER CONTROLS
Outrigger Controls
The outrigger control levers are located just in front of
the frame tilt control lever. Moving an outrigger control
lever to the right will lower the outrigger; moving it to the
left will raise it.
WARNING
ALWAYS LEVEL MACHINE
BEFORE RAISING BOOM.
NEVER TILT FRAME WITH
THE BOOM RAISED.
MACHINE MAY TIP AND
CAUSE DEATH OR
SERIOUS PERSONAL
INJURY!
W1040
H1005
2
1
Left Outrigger Right Outrigger
H1046
CAUTION
IF BOOM CAPACITIES ARE EXCEEDED WITH
OUTRIGGERS DOWN, STRUCTURAL
DAMAGE MAY OCCUR. CONSULT LOAD
CHART FOR RATED CAPACITIES. DO NOT
EXCEED RATED LIFT CAPACITIES.
W1057
