Apple Xserve Intel (Late 2006) DIY Procedure for Rear ID Tab User Manual
Page 7
Xserve (Late 2006) Rear ID Tab Replacement Instructions

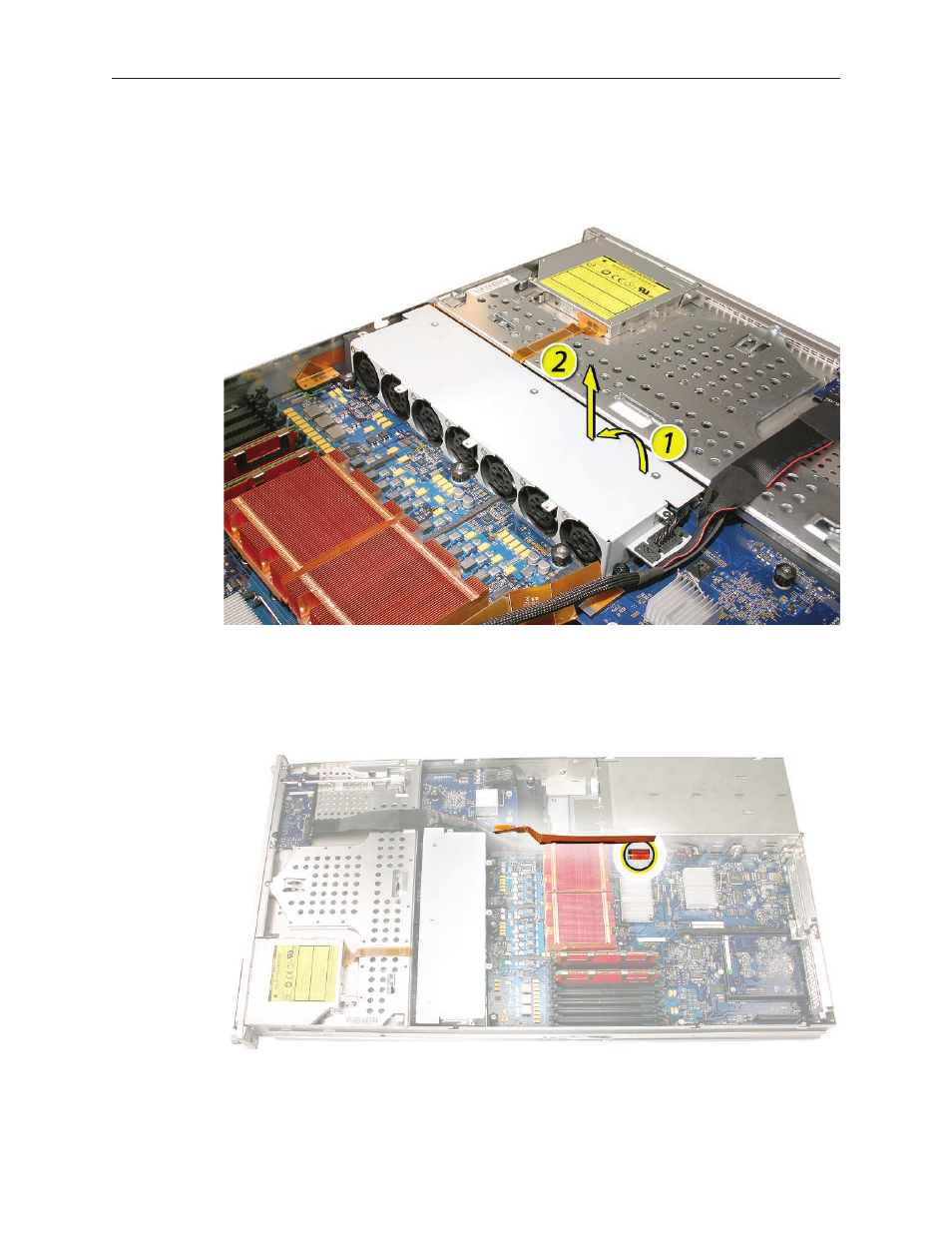

Note: You may encounter some resistance around the fan array power connector during removal.
If so, carefully rotate the fan array as shown to disconnect it from the power distribution board
below, and then lift the fan array out of the computer.
Backplane-to-Logic Board I/O Cable
Disconnect the backplane-to-logic board cable from the logic board.
1.
