Class1 Digital Air Minder User Manual
Page 6
page 6 of 8 pages
Engineering
Standards
Name
Identifier
Instructions
Engineering Standard Number
C1-102263-A
Digital Breathing Air Remaining System
Red
Red
Black
12 VDC
Ground
Black
OEM Power Feed
1
2
3
4
8
7
6
5
1
Alarm OUT (ground)
2
PSI IN (Pressure)
3
Sensor + 10 VDC
4
Power + 12 VDC
5
Ground
6
NC
7
NC
8
Alarm Silence (ground)
DTM06-08SA
0462-201-20141 20 Ga.
Wire Insertion View
Alarm OUT
PSI Signal
BLACK
PSI Supply
RED
Pressure Transducer
PIN
COLOR
1
PLUG
2
BLACK
3
RED
4
RED
5
BLACK
6
PLUG
7
PLUG
8
PLUG
PIN
COLOR
1
RED
2
BLACK
MANUALS\DIGITAL\AIR_LEFT\O2-wire.AI
CONNECTOR
PROVIDED HARNESS
1.125"
1.425"
0.410"
RED
BLACK

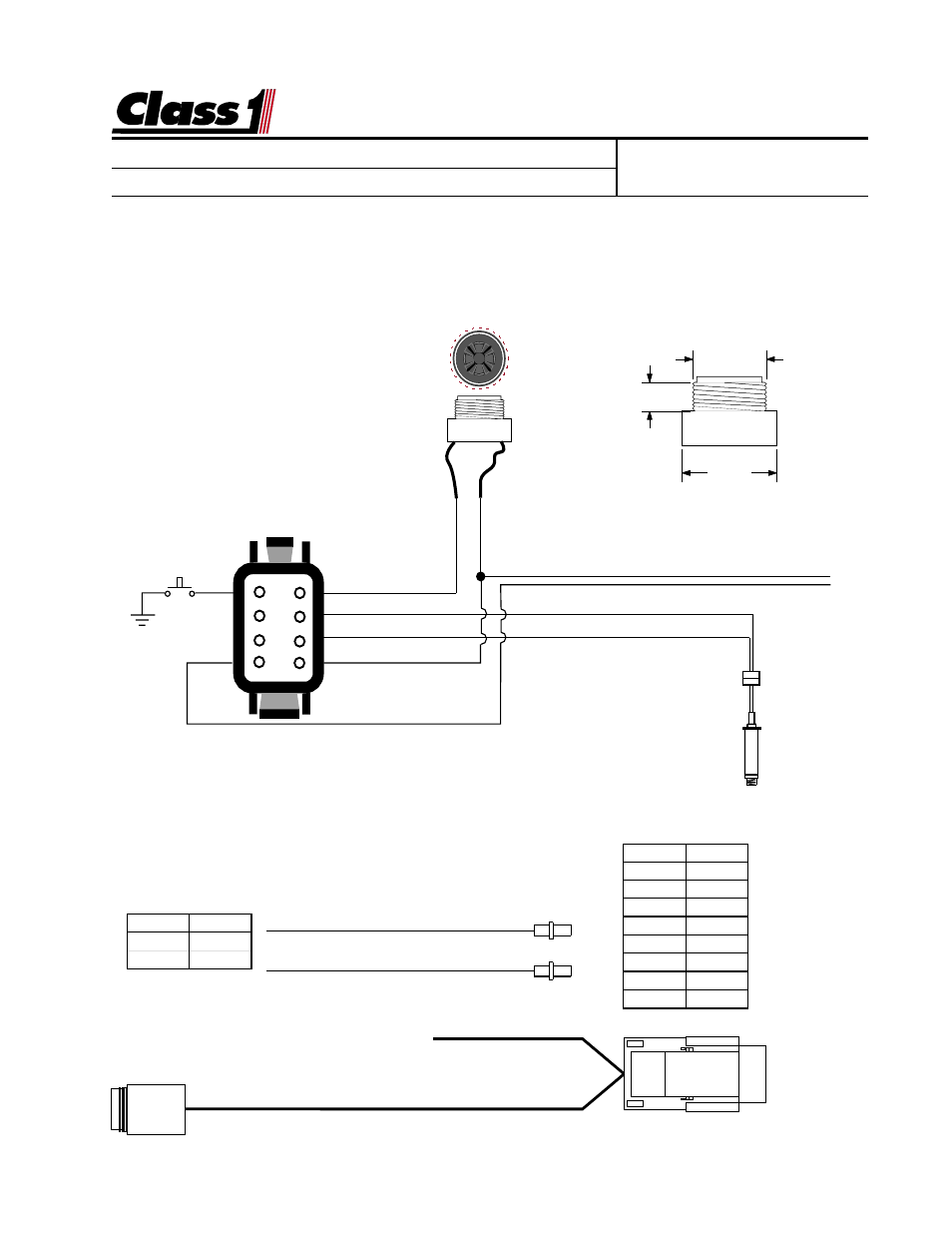

Wiring Diagram for the Digital Breathing Air Remaining Gauge.
