J.P.Instruments Fuel Flow Installation Manual

Report # 400

FS-450

Page 5 of 16

Rev A : Date 02/1/2002

5

Mounting Procedure: 700922

1. Find a convenient location between the Throttle Body and the Flow

Divider and away from any hot exhaust pipes to suspend the Fuel Flow
Transducer.

2. Remove the fuel hose which goes from the Throttle Body to the Flow

Divider.

3. Purchase two new hoses, one from the Fuel Servo to the Fuel Flow

Transducer and the other from the Fuel Flow Transducer to the Flow
Divider. There must be flexible hose in and out of the Fuel
Transducer.
The hoses must meet TSO-C53a Type C or D FAA
specification. The new hoses must be the same size as the current
hose in the aircraft.

4. Mount the Fuel Flow Transducer in the fuel line. The Flow Transducer

must be wrapped with Fire Sleeve

available at JPI.

Place a small

hole in the fire sleeve and pass the transducer wires through it. Seal
with High temperature Silicone RTV sealant.

5. Secure at either end of the transducer to any convenient point on the engine with MS21919 clamps or

equivalent.

6. For Continental fuel injected engines adjust the fuel pressure to account for the pressure drop across the

transducer per Continental Service Bulletin M89-10,

available at JPI.

J.P.INSTRUMENTS

PO Box 7033
Huntington Beach CA 92646

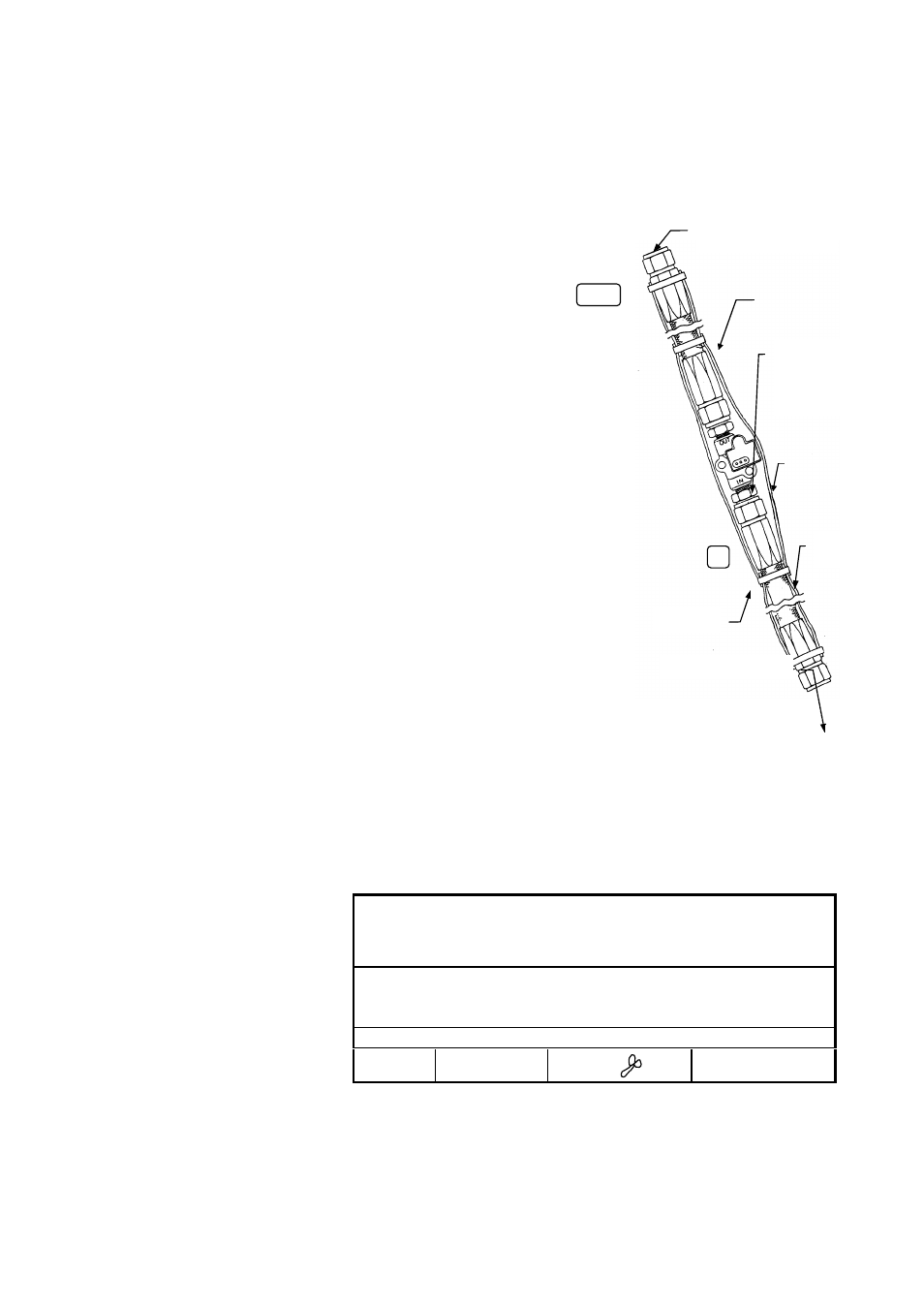

Title
Installation of the Fuel Flow Transducer in the fuel line
between the Throttle Body and the Flow Divider. Only applicable
for Continental Fuel Injected Engines
Drawing No. 700922

Date

02/14/97

Drawn/

Approved

Rev NC

OUT

IN

From the Fuel Servo

To the Flow Divider

Fittings ¼ NPT to
Fuel Hose (do not
use aluminum
fittings

Aeroquip Fire
Sleeve
AE102/62-24

Aeroquip
900591B Clamp

See note 5

Aeroquip
303 hose
