J.P.Instruments Fuel Flow Installation Manual

Report # 400

FS-450

Page 11 of 16

Rev A : Date 02/1/2002

12 Operating Instructions

The FS-450 Fuel Scan uses a small turbine transducer that measures the fuel flowing into the engine. Higher fuel flow
causes the transducer turbine to rotate faster which generates a faster pulse rate. Prior to engine start you inform the
FS-450 Fuel Scan of the known quantity of fuel aboard, and it will keep track of all fuel used. There are two standard
operating modes of the FS-450: Automatic Scanning, and Manual Scanning. The FS-450 has programmable alarms.
When the remaining amount of fuel falls below the alarm limit the bottom display will show the amount of fuel REMaining
and the specific cue light will flash. When the remaining time falls below the alarm limit the bottom display will show the
MINutes of fuel remaining and the specific cue light will flash. When an alarm is displayed, tapping the STEP button will
temporarily disable the alarm indication for the next ten minutes. When an alarm is displayed, holding the STEP button
until the word

appears will disable that alarm indication for the remainder of the flight. After initial self-test, you will

be asked to inform the FS-450 of start up fuel. The FS-450 will display

(or

liters or

pounds) for one second, and then flash

until any button is pressed. The display will pause at each

parameter for a few seconds in the Automatic scanning mode. In the Manual scanning mode, tap the STEP button to
advance to next parameter. Holding the STEP button will display the previous parameters in the sequence (rapidly
backwards).

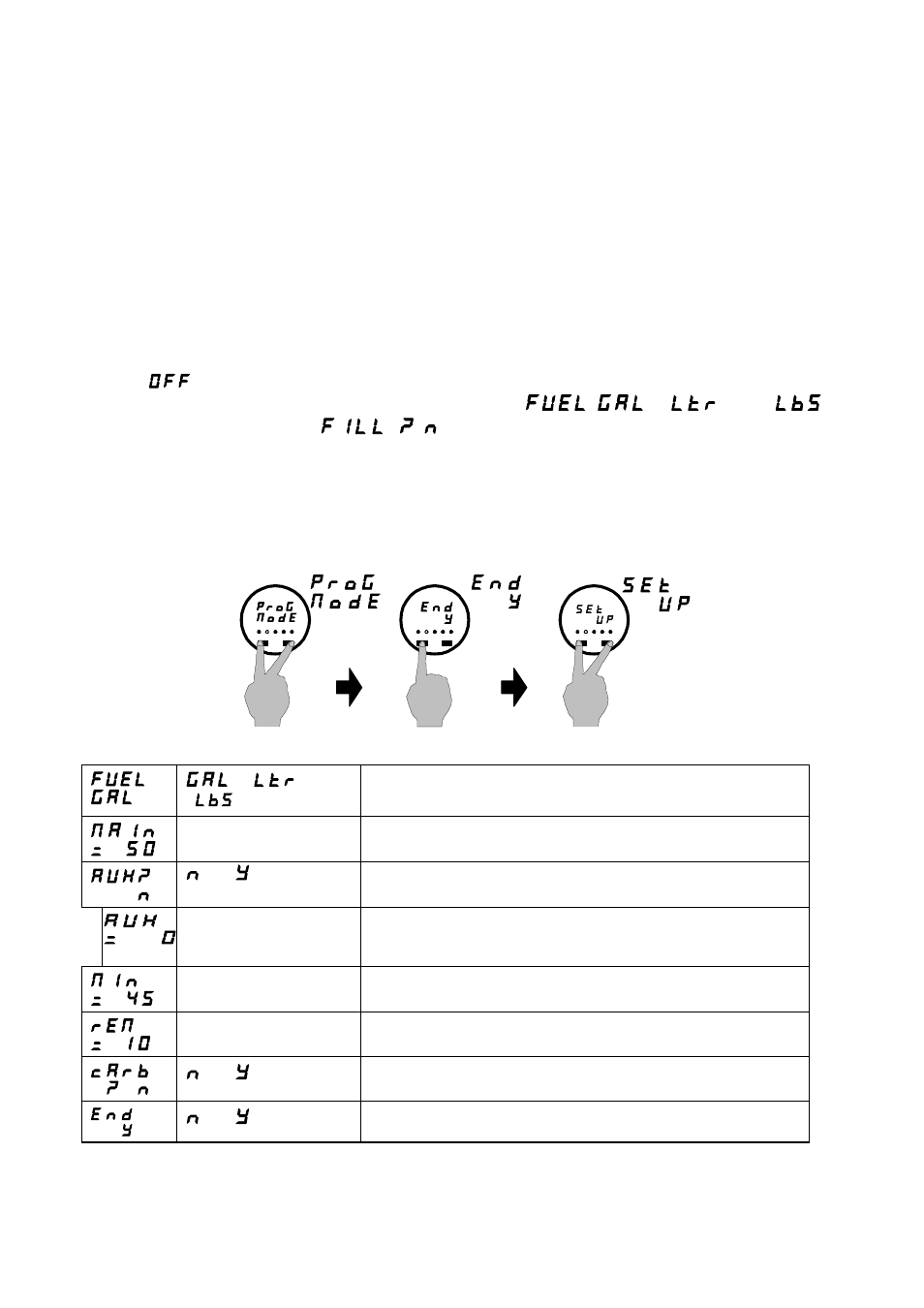

Procedure—Changing the Set Up by entering the program mode.

Hold both

buttons for 5

seconds until

the words

Tap STEP

button until

the words

Hold both

buttons for 5

seconds until

the words

Tap STEP
to next item

AUTO sequences through
these values

Description

Selects fuel units

Hold or tap AUTO to
select main capacity

Main tank capacity, in units selected

Y—Yes—aircraft has auxiliary tanks (next step)

Hold or tap AUTO to
select AUX capacity

Auxiliary tank capacity (skipped if AUX? is no)

Hold or tap AUTO to
select low time limit

Alarm limit in minutes for low time in tanks

Hold or tap AUTO to
select low quantity limit

Alarm limit for low fuel quantity in tanks, in units selected

Y—Yes—carbureted engine

Y—Yes to exit; N—No to review list again
