J.P.Instruments Fuel Flow Installation Manual

Report # 400

FS-450

Page 12 of 16

Rev A : Date 02/1/2002

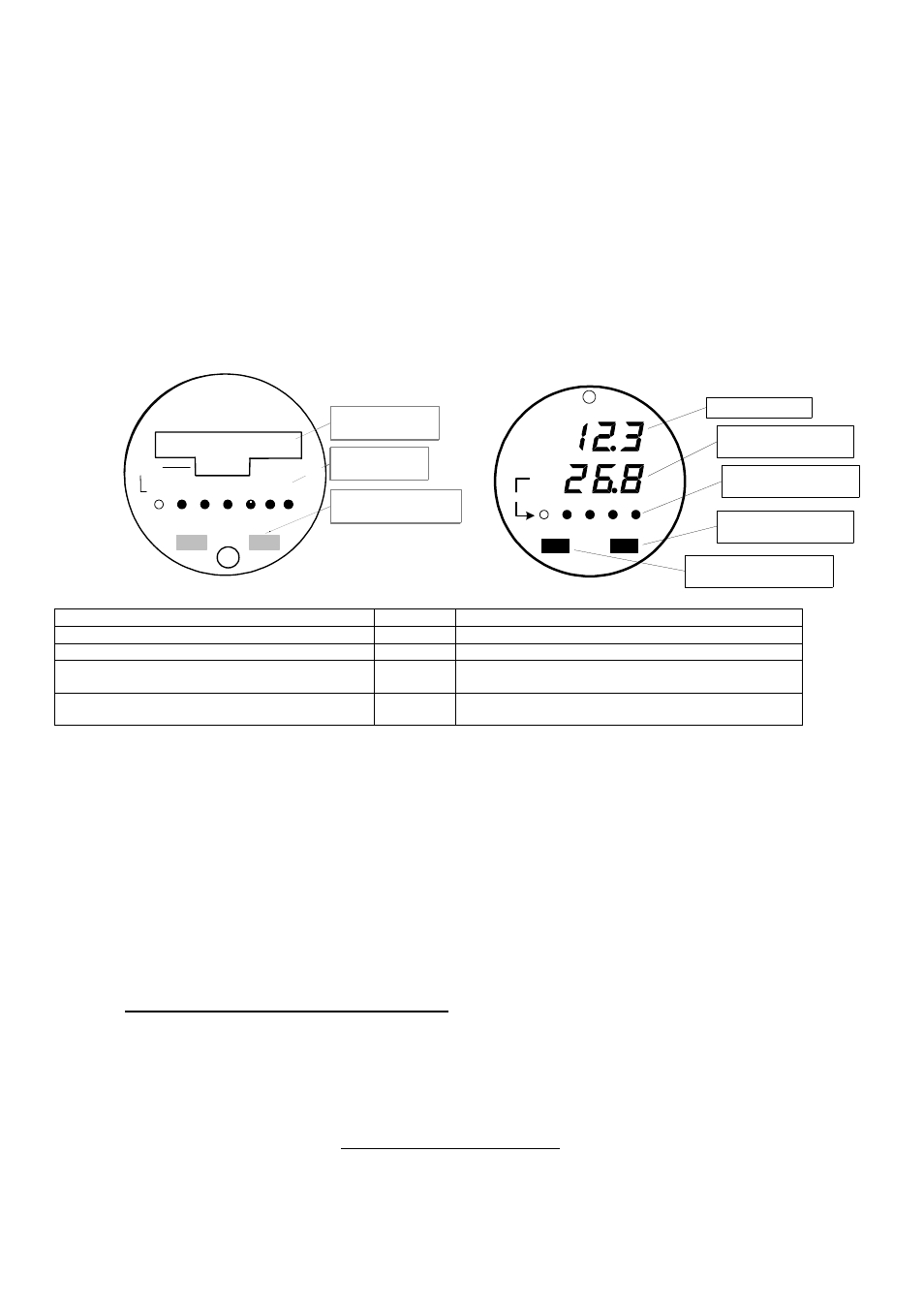

Digital display for numeric readouts and messages: top display is fuel flow and the lower display for all other
parameters.

Indicator lights to show what information is being displayed on the digital display

Parameter Description

Example

Comments

USD—Total Fuel Used

38.2

Since last refueling or trip total.

REM—Fuel Remaining

37.2

In gallons, liters or pounds

H.M.—Time to Empty

02.45

Hours. Minutes Remaining at current fuel burn

REQ—Fuel required to next GPS WPT or
Destination

25.8

Present with GPS interface Valid signal and way point

RES—Fuel Reserve at next GPS WPT or
Destination

I

I.3

Present with GPS interface Valid signal and way point

13 Initial Check Out

Electronics Warranty: The aircraft owner must read the Warranty before starting the installation. There is

information in the Warranty that may alter your decision to install this instrument. If you do not accept
the terms of the Warranty, JPI offers a 30 day money back guarantee.

Transducer Warranty: All transducers suspected of malfunctioning must be sent back to JPI to be bench

flow tested. JPI sends the transducer back to the original manufacturer for testing, who in tern charges
JPI, $70 for the testing. If the transducer is found defective a new transducer will be issued.

If you are not an FAA Certified Aircraft Mechanic familiar with the issues of installing aircraft fuel

flow, Do Not attempt to install this instrument.

The installer should use current aircraft standards and

practices to install this instrument (refer to AC 43.13).

 Read the entire Installation Instructions and resolve any issues you may have before starting the installa-

tion.

THIS INSTALLATION WILL REQUIRE SOME PARTS UNIQUE TO YOUR AIRCRAFT THAT ARE NOT

SUPPLIED IN THE KIT (including, but not limited to hoses and fittings). Acquire all the parts
necessary to install this instrument before starting the installation. Do not use aluminum fittings with the
PN 700900-1 or PN 700900-2 transducer.

JPI

FS

450

Fuel Flow GPH

Gallons

Per Hr.

-MPG

STEP

AUTO

USD REM H.M. REQ--RES

Function

Always shows fuel flow

shows fuel parameter
corresponding to indicator light

AUTO enters the automatic
scan mode

STEP enters manual scan mode,
steps through each paramerter

indicator lights index through
each parameter

STEP

AUTO

FlowScan® 450M

JPI

Flow per Hr.

Left Engine

Right Engine

TSO

Always shows fuel flow
of each engine

shows all other fuel
parameters

AUTO enters the automatic
scan mode

TUSD LUSD RUSD REM H.M. REQ RES

Function

50.7

STEP

AUTO

Flow Scan® -450M

JP I

LEFT ENGINE

RIGHT ENGINE

TSO

Always shows fuel
flow of each engine

shows all other
fuel parameters

AUTO enters the
automatic scan mode

TUSD LUSD RUSD REM H.M. REQ RES

Function

50.7

15.3

15.6

Flow

Per Hr
