• Once that proper placement is achieved we recommend using a permanent
marker to outline the magnet on the door.
• Re-check all wires to make sure they are completely secure and free from coming into
contact with any moving part to prevent system damage due to a cut wire
• Reinstall all internal plastic and carpet pieces that were removed.
• Make sure that all wires are tucked back and out of heavy traffic areas on the floor.
• Route them toward the furthest back area underneath the rear seat
• Close all doors
• Insert the fuse into the holder on the POS+ side of the battery
• Test all doors to make sure the step deploys each time a door is opened, and retracts
when the door is closed
MAINTENANCE OF THE STEP SLIDER
• Please note the slider is a mechanical mechanism that requires maintenance to operate
properly. To keep the slider operating at an optimal level it needs to be maintained
with lubrication. We recommend using a Teflon based lubrication on the 7 indicated
points below to keep the slider operating smoothly. A good rule of thumb is every
month. Heavy trail use will increase the frequency in lubrication.

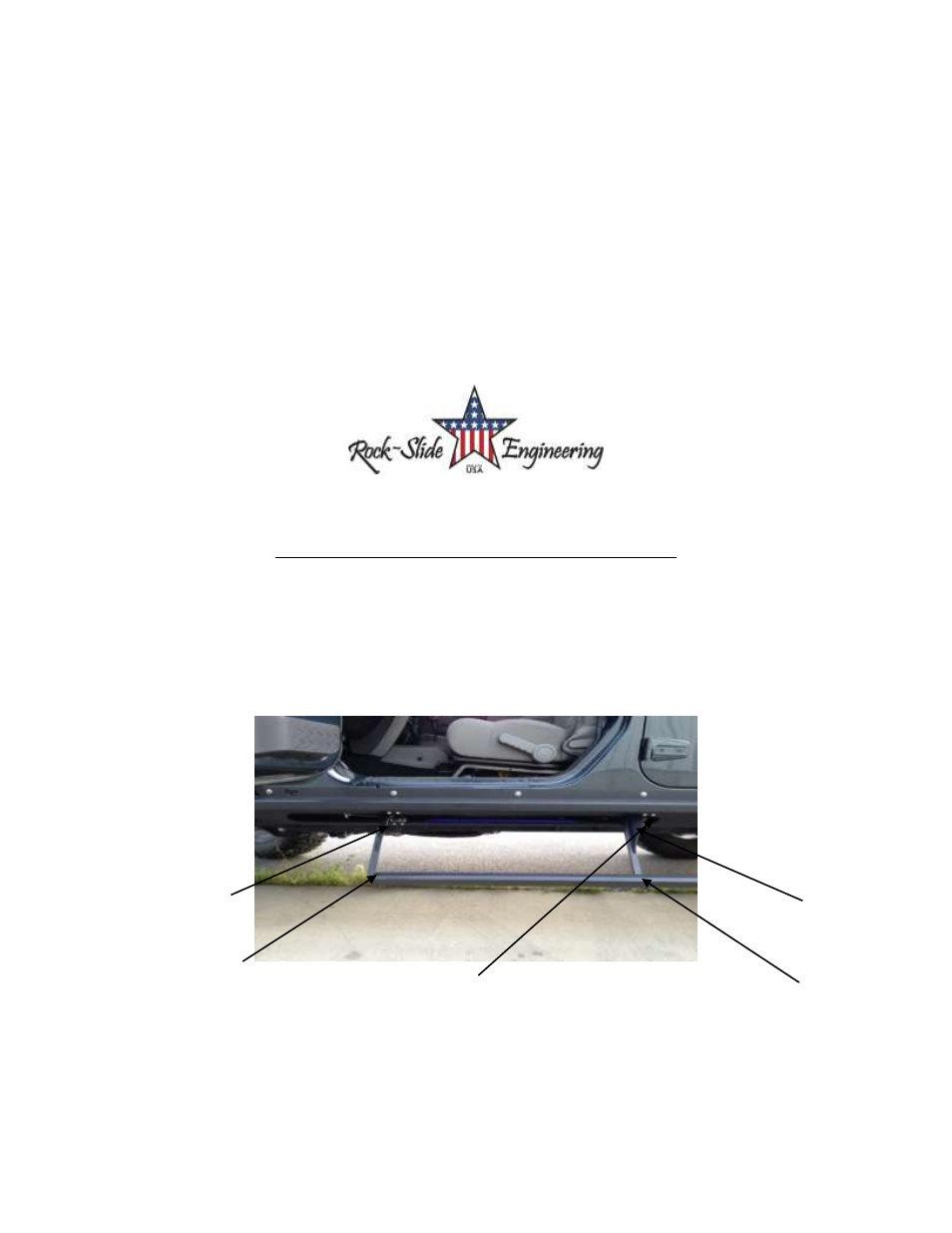

LUBRICATE THE HINGE POINTS:
2- HINGE POINTS ON THE STEP PORTION ON THE BACK SIDE
4-HINGE POINTS IN THE BODY OF THE SLIDER (ALUMINUM BLOCKS)
1-LUBRICATE THE MOTOR SHAFT LIGHTLY SO IT CAN TRANSFER THE
LUBRICANT TO THE O-RINGS AS IT RETRACTS
