Rock-Slide Engineering RIGID SERIES REAR BUMPER - Manual (Page 5)

INSTALLATION INSTRUCTION RSEI 101
9. Attach Heim Joint on the tailgate side.

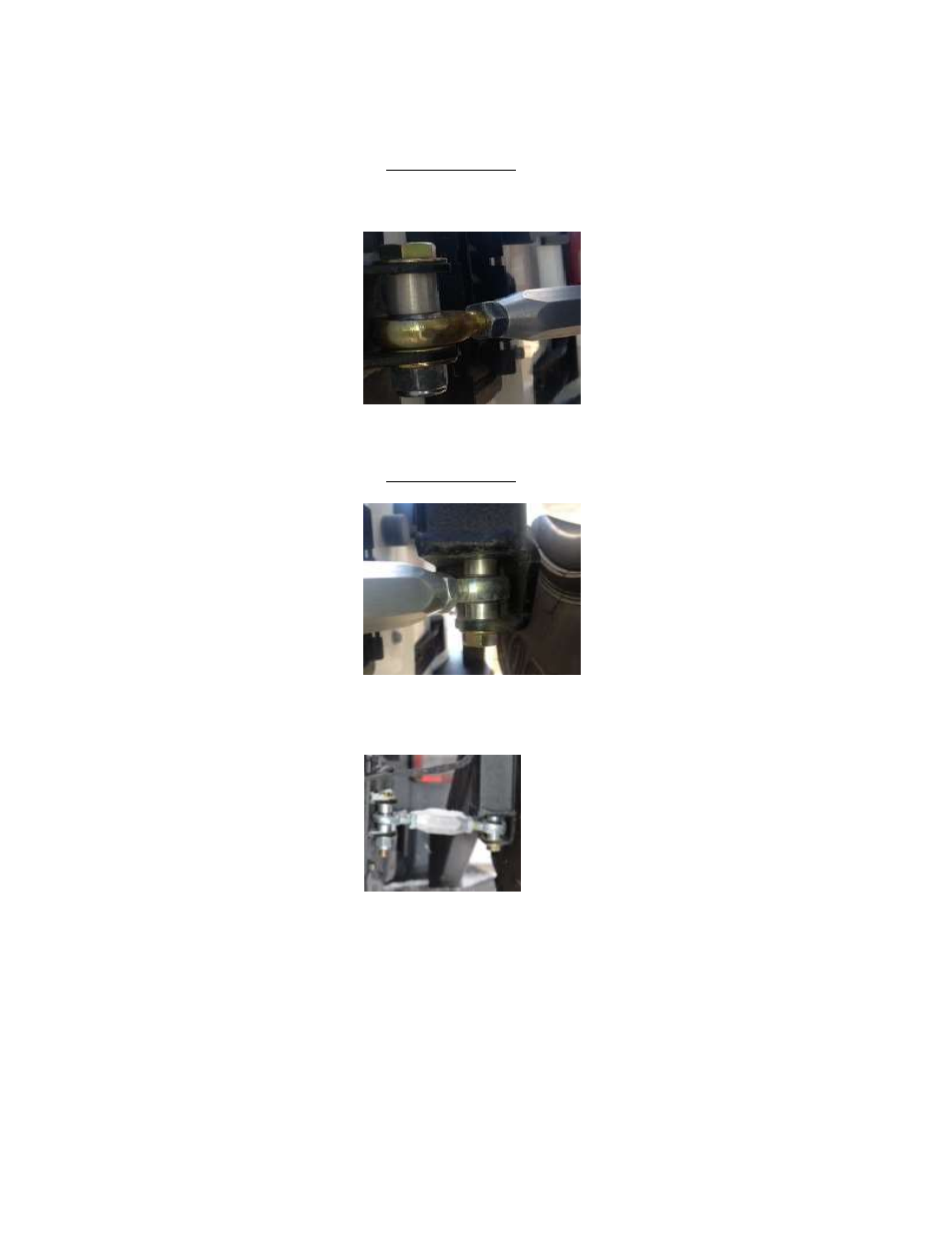

a. Using the picture below as a guide. Use a ½” bolt that 3” long for this.
b. Tighten nut so it’s snug but not tight. The joint needs to have play
c. You can put the aluminum spacers in any given configuration as to give you
the spacing that you need for things to clear.
10. Attach the Heim Joint on the swinger side.
a. Using the picture below as a guide, Use a ½” bolt that 3 ½” long for this.
b. Tighten nut so it’s snug but not tight. The joint needs to have play
11. Combine the tailgate and swinger sides using the turnbuckle.
a. Use the spacers to make the turnbuckle as level as possible
12. Attach the rubber stopper on the tailgate.
