Bryant High Wall Duct-Free Split System 619E User Manual
Page 9

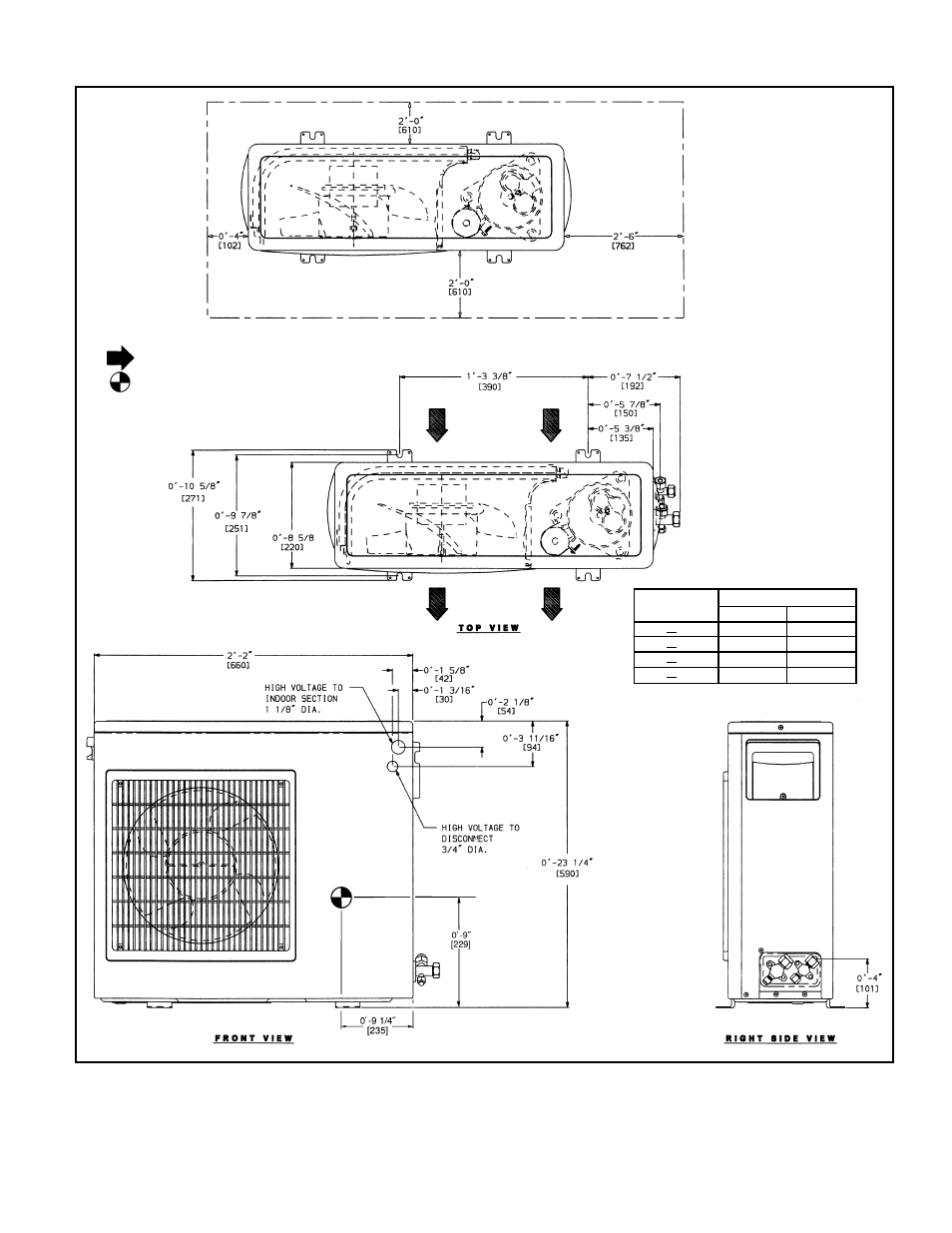

DIMENSIONAL DRAWING, BASE UNIT — 538C/D009,012 COOLING ONLY AND HEAT PUMP UNITS
NOTES:
1. Dimensions in [
] are in millimeters.
2.
Direction of airflow.
3.
Center of gravity.
4. Minimum clearances, 4 in. on coil sides, 24 in. on fan
side, and 30 in. service side.
UNIT
538
WEIGHT
Lb
Kg
C
009
55.0
25.0
C
012
62.0
28.1
D
009
60.7
27.5
D
012
66.5
30.2
9
