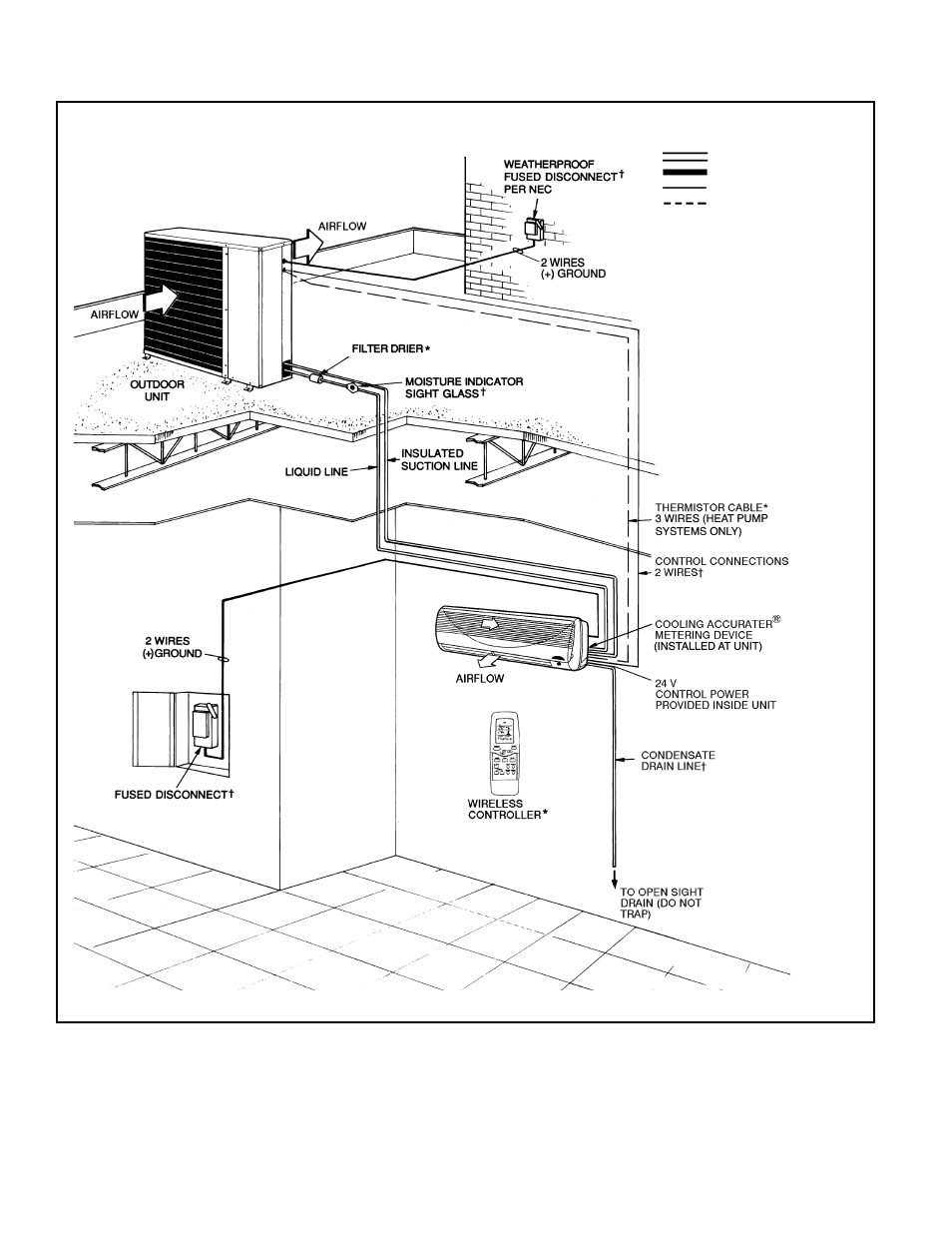

TYPICAL INSTALLATION — HIGH-WALL SYSTEMS, 18,000 AND 24,000 BTUH

(Cooling Only System Shown)

LEGEND

NEC — National Electrical Code

Piping
Line Voltage
24 V
Thermistor

*Standard.

†Field supplied.

NOTES:
1. All piping must follow standard

refrigerant piping techniques.

2. All wiring must comply with the

applicable

local

and

national

codes.

3. Liquid line need not be insulated.
4. Wiring and piping shown are gen-

eral points-of-connection guides
only and are not intended for a
specific installation.

5. Insulate condensate drain if in-

stalled in a conditioned space.
