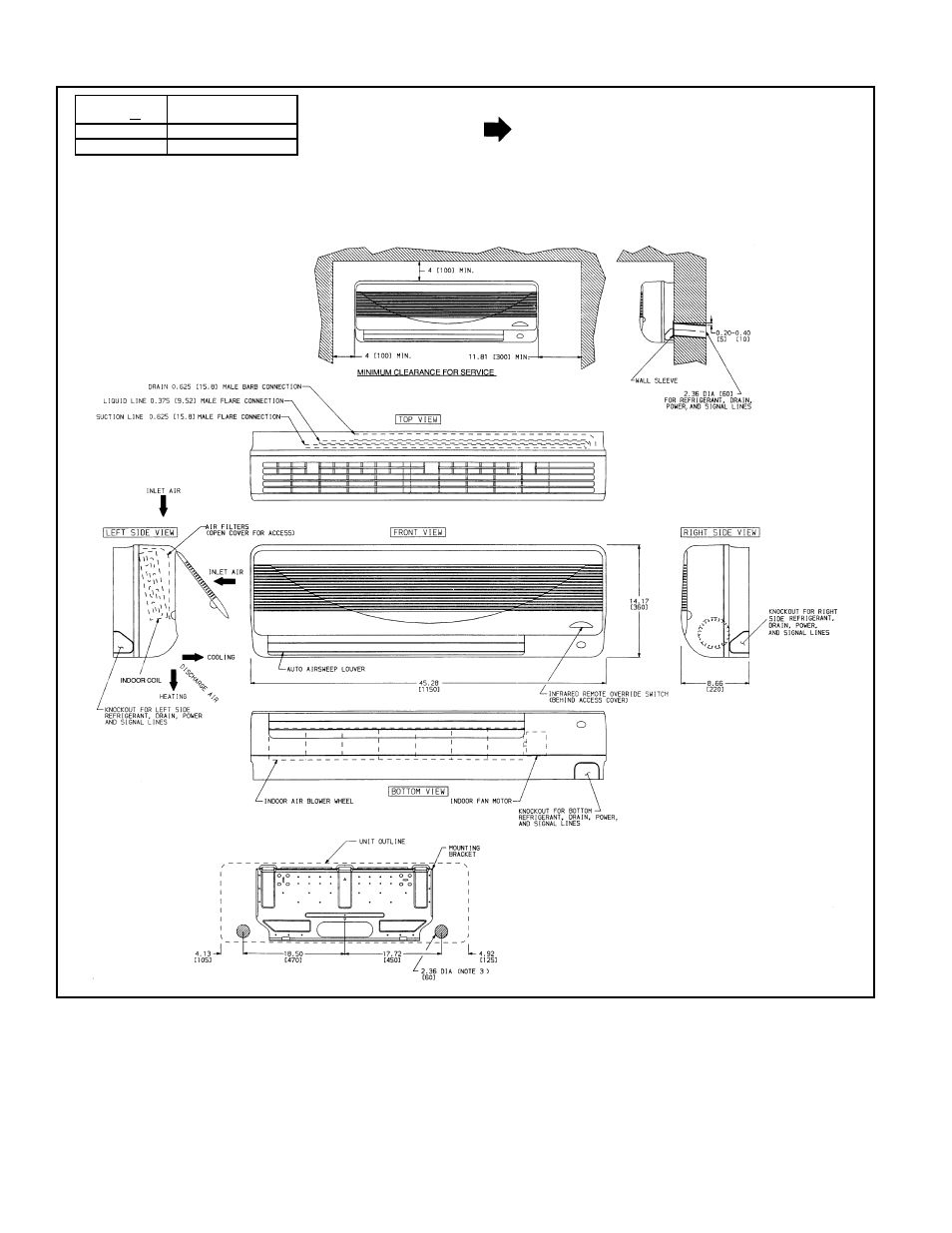

DIMENSIONAL DRAWING, BASE UNIT — 619E018,024 FAN COIL UNITS
UNIT
619E
WEIGHT
018 39 Lb [17.5 Kg]
024 43 Lb [19.5 Kg]
NOTES:
1. Dimensions in [
] are in millimeters.
2. Direction if airflow.
3. Refrigerant, drain, and power connections may be made in unit rear, bottom,
left side, or right side.
4. Refrigerant is metered by AccuRater ா device at the fan coil unit on 538A and
538D018,024 applications. A thermostatic expansion valve is used in the out-
door unit on 538S applications. Insulate both refrigerant lines on 538S and
538D018,024 applications.
5. The 4 Љ top and left clearances are absolute minimums. Clearances of 10 Љ are
recommended.
14
