Hornady Lock-N-Load Pistol Bullet Feeder User Manual

Page 7

background image

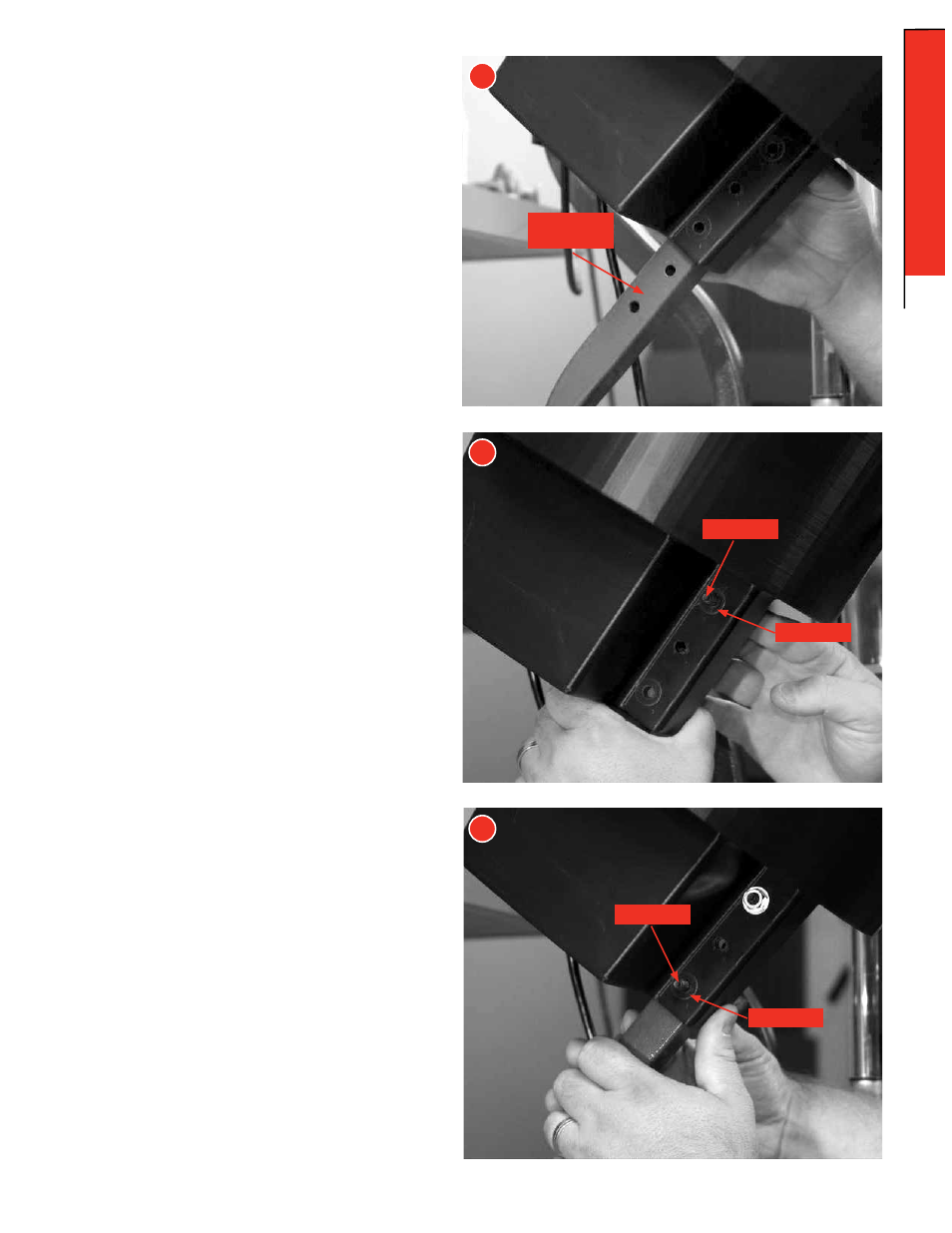

Place a ¼-20 X 2 SHCS Bolt (30) with one ¼" Flat Washer
(31) through the bottom hole of the Bullet Feed Hopper and
the Square Tubing Mounting Bracket.

If you are having issues with bullets not being able to keep
up feeding (approximately 100 bullets in 5 to 6 minutes),
switch the bolt from the bottom hole to the middle hole.

Slide the Hopper (29) over the top of the Square Tubing
Mounting Bracket (37), with the open face of the Hopper facing
the front of the bench or table.

Place a ¼-20 X 2 SHCS Bolt (30) with one ¼" Flat Washer (31)
through the top hole of the Bullet Feed Hopper and the Square
Tubing Bracket.

Mounting the Bullet Feed Hopper to the

Square Tubing Mounting Bracket

4

5

6

Flat Washer

Flat Washer

SHCS Bolt

SHCS Bolt

4

5

6

Square Tubing

Bracket

ASSEMBL

Y

- 7 -

ASSEMBLY: PISTOL BULLET FEEDER
