Hornady Lock-N-Load AP - Manual (Page 22)

392700 392701 392702 392703
Universal Pistol
Powder Sleeve
#1 Powder Sleeve #2 Powder Sleeve 17 Cal. Powder
Sleeve
Most Pistol Cases* 7mm to 45 Cal. Rifle
Cases
20 to 270 Cal. Rifle
Cases
17 Cal. Rifle Cases
*Does not flare case
290030 290031 290032 290033 290034 290035 290037 290038
.355 PTX .357 PTX .400 PTX .430 PTX .451 PTX .452 PTX .475 PTX 500 PTX
9mm Pistol Cases 38 Cal. Pistol Cases 10mm Pistol Cases 44 Cal. Pistol Cases 45 Cal. Pistol Cases 45 Cal. Pistol Cases 475 Cal. Pistol
Cases
50 Cal. Pistol Cases
(PTX = Powder Thru Expander)
Changing Powder Sleeve or
PTX Expander
As a general rule, rifle cartridge cases will use either the
#1 or #2 Powder Sleeve. Pistol cases will need to use the
PTX sleeves when the Hornady Lock-N-Load
® Bullet Feeder
is being used. Otherwise the Universal Pistol Powder Sleeve
will be used.
Refer to the chart below to select the proper Sleeve
or Expander.

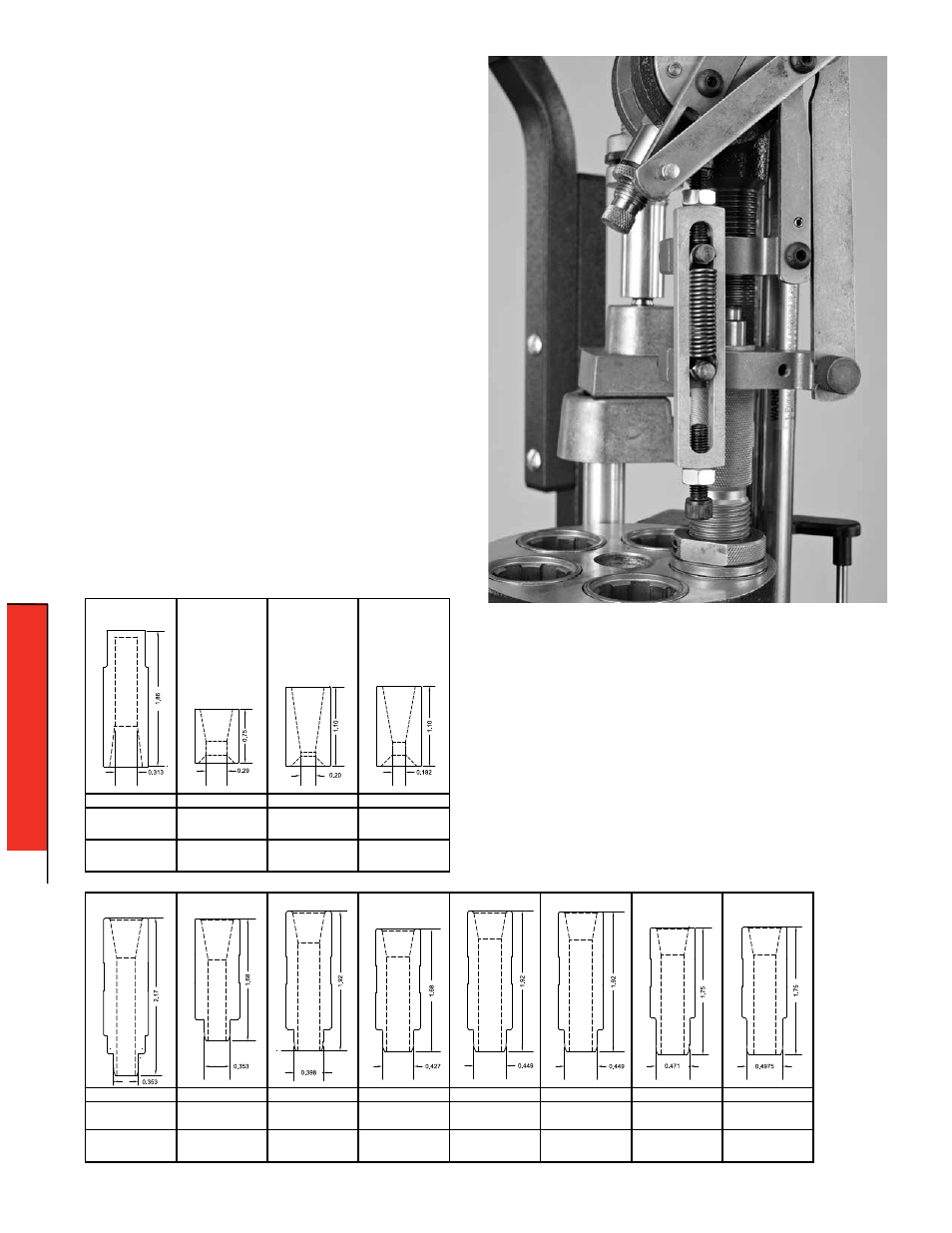

Remove spring, PTX Stop and loosen thumb screw.
Remove Powder Measure body from lower assembly.
Turn lower assembly over so powder sleeve drops out.
Replace with proper Powder Sleeve or PTX Expander.
Reverse steps above to reassemble.
- 22 - CHANGE-OVER: POWDER MEASURE
CHANGE-OVER
