Hornady Lock-N-Load AP - Manual (Page 11)

Item
No.
Production
Part Number
Qty. Description
1 392721 2 BHSCS 10-32 X 1.00
2 392708 2 MOUNTING CLAMP
3 392710 1 ROTOR ARM
4 392719 5 BHSCS 10-32 X 3/8
5 392715 2 SHOULDER NUT
6 398735 1 PIVOT
7 398737 1 DRIVE LINK
8 398736 1 MEASURE LINK
9 398742 2 BHSCS 10-32 X 1.25
10 392717 1 GROOVE PIN 3/16 X 7/8
11 392718 1 SPRING PIN 1/8 X 3/8
12 392707 1 UPPER BRACKET
13 398739 2 SPRING NUT
14 398738 1 RETURN SPRING
15 392705 1 DROP TUBE
16* 392703 1 17 CAL. SLEEVE
17 392701 1 #1 POWDER SLEEVE
18 392702 1 #2 POWDER SLEEVE
19 392700 1 PISTOL POWDER SLEEVE
20* 290030 1 .355 POWDER THRU EXPANDER
20* 290031 1 .357 POWDER THRU EXPANDER
20* 290032 1 .400 POWDER THRU EXPANDER
20* 290033 1 .430 POWDER THRU EXPANDER
20* 290034 1 .451 POWDER THRU EXPANDER
20* 290035 1 .452 POWDER THRU EXPANDER
20* 290037 1 .475 POWDER THRU EXPANDER
20* 290038 1 .500 POWDER THRU EXPANDER
21 392704 1 MEASURE ADAPTER
22 392706 1 LOWER BRACKET
23 398741 1 LOCKING BOLT
24 392722 1 RETAINING RING
25 O44000 1 LOCK RING
26 392302 1 LOCK -N-LOAD BUSHING
* (Sold Separately)
6
5
7
8
11
4
10
13
14
12
15
20 *
22
23
13
21
24
25
26
2
9
1
16 *
17 18 19
9
1
2
3
4

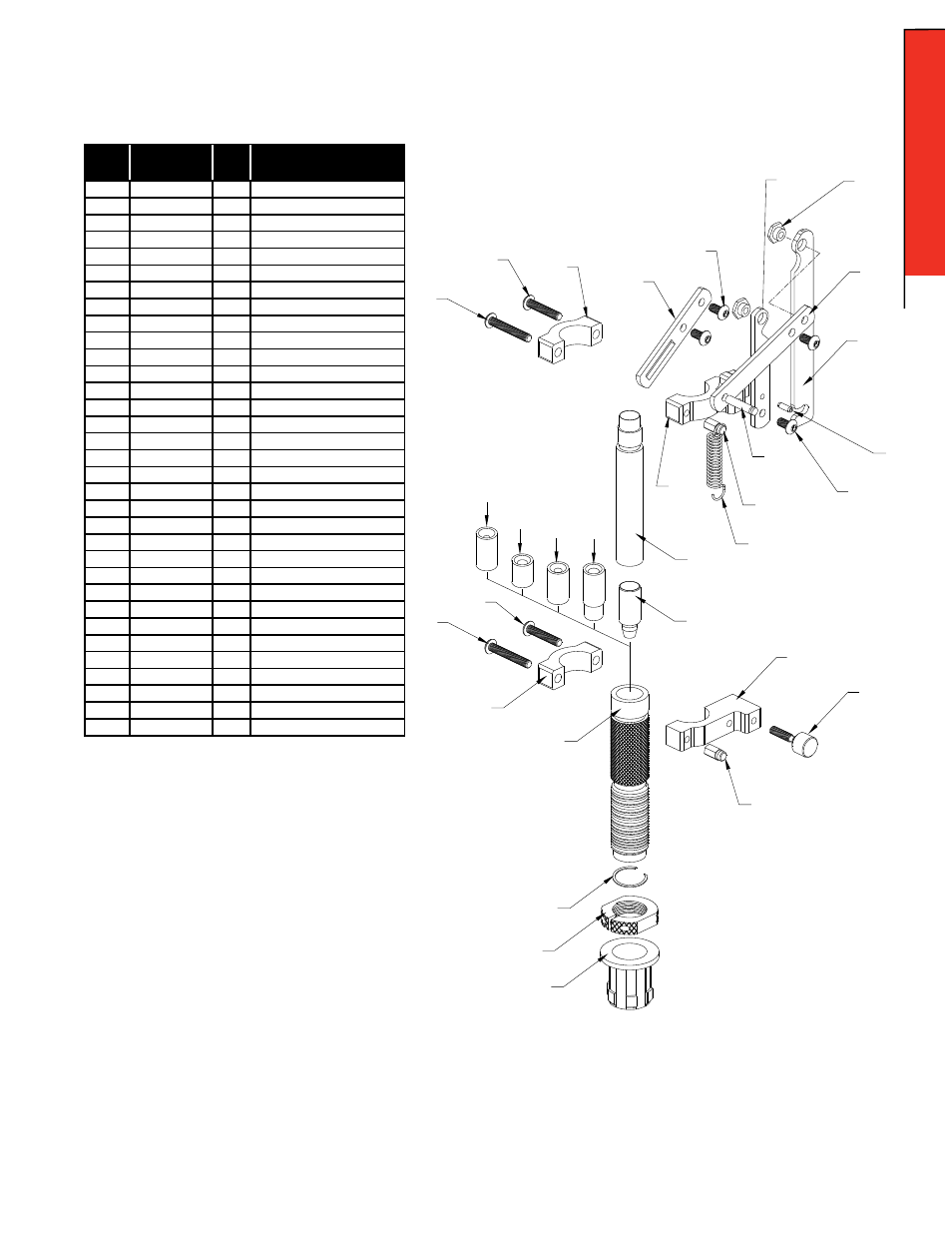

Lock-N-Load ® Case Activated Powder Drop
PARTS LIST EXPLODED VIEW
ASSEMBL
Y
- 11 - ASSEMBLY: POWDER MEASURE
