Final Powder Measure Assembly

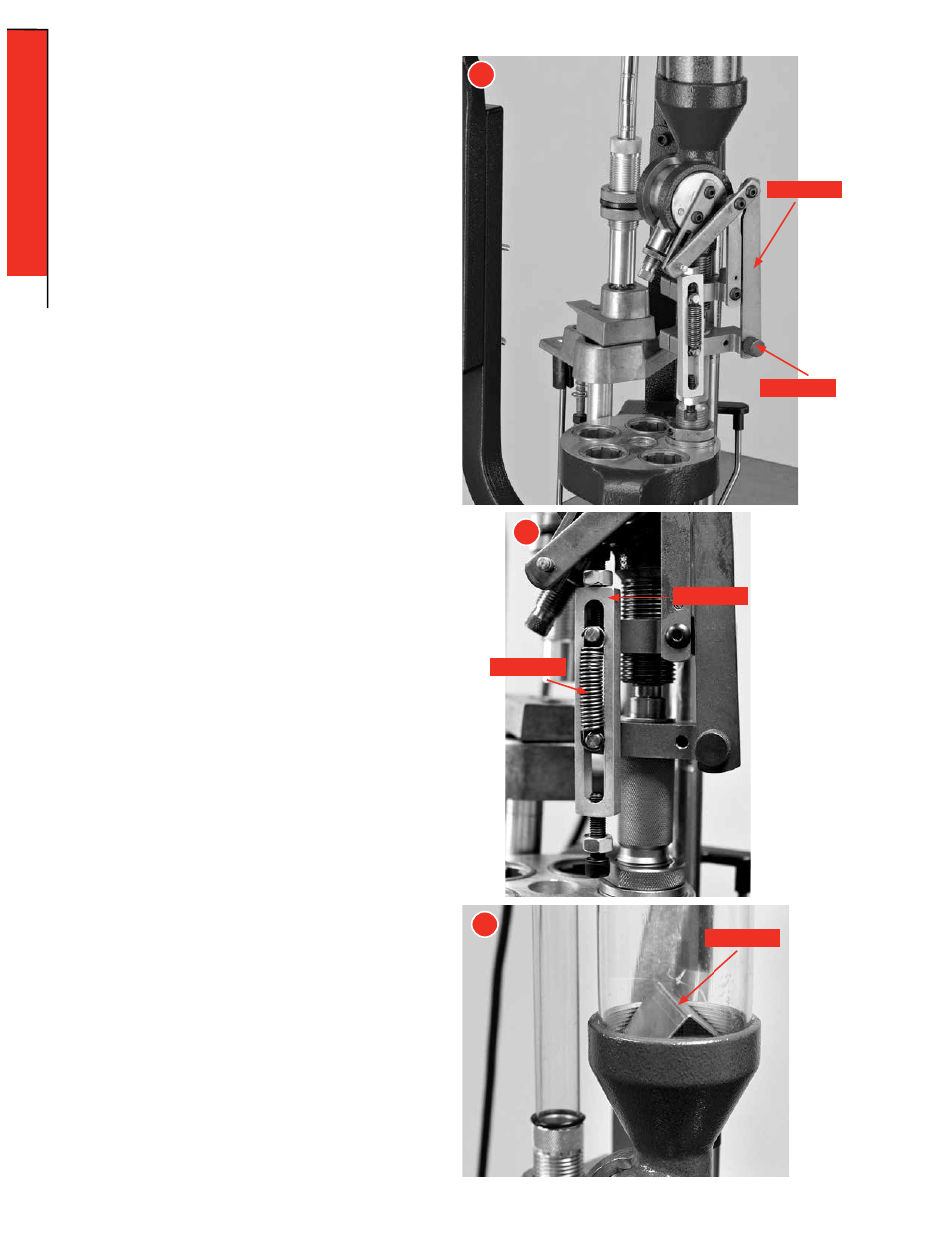

Insert the Powder Drop Tube into the lower assembly
Connect the Link (8) to Lower Assembly by sliding the Link over
the Thumb Screw (23).
Tighten the Thumb Screw.
Drop Baffle into Powder Hopper to prevent powder bridging
and help produce consistent charges.
Attach PTX Powder Measure Stop.
Attach Spring (14).
(For adjustment, refer to Chart on page 24).
10
9
8
10
9
8
PTX Stop
Thumb Screw
Link Arm
Spring
Baffle
