CONNECTIONS AND SETUP

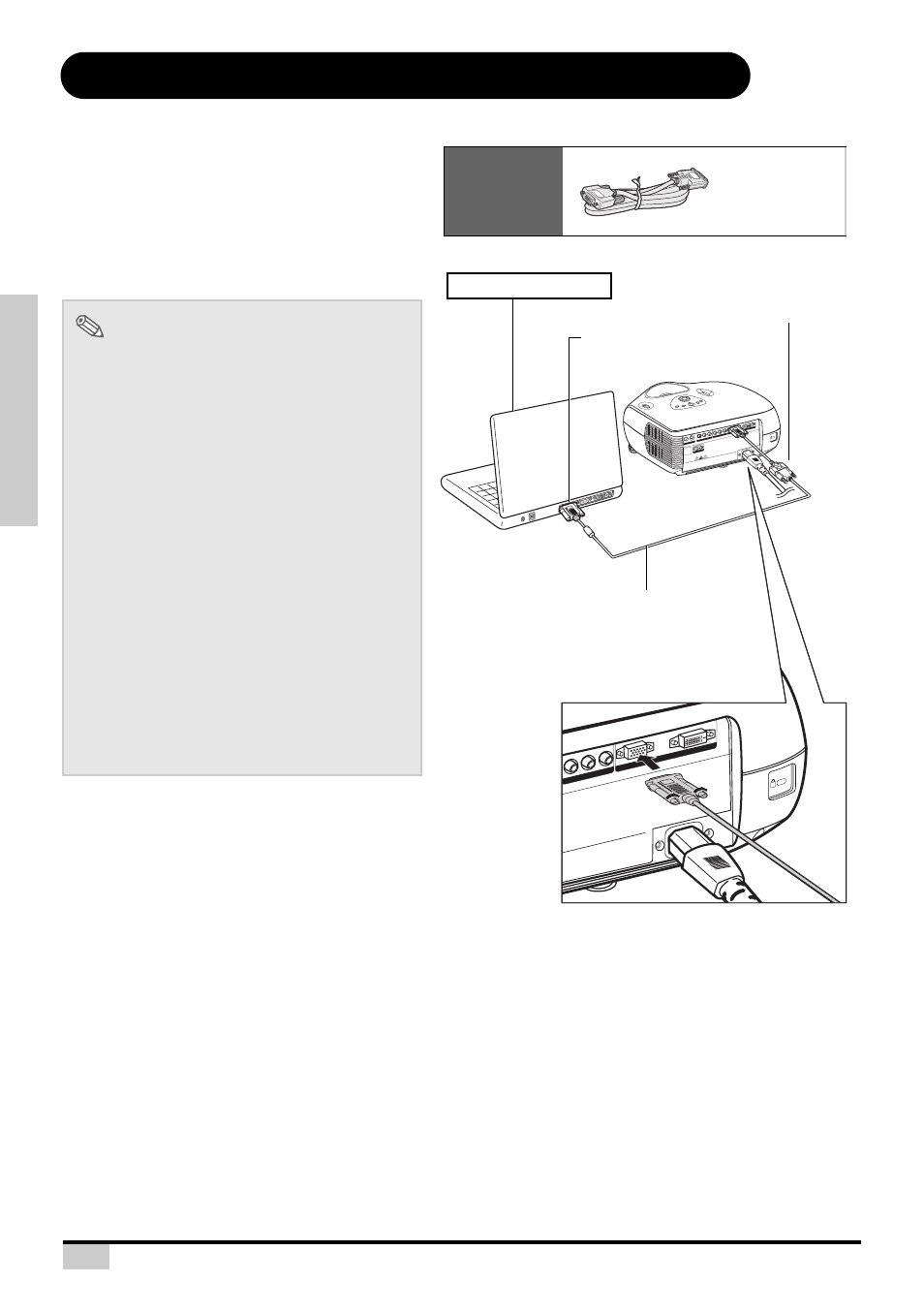

Connecting the Projector to a Computer
Connecting to a Computer
Connect the projector to the computer
using the HD 15-pin VGA cable.
• Secure the connectors by tightening the
thumbscrews.
Note
• See page 60 “Computer Compatibility
Chart” for a list of computer signals
compatible with the projector. Use with
computer signals other than those listed
may cause some of the functions not to
work.
• When connecting the projector to a
computer in this way, select “PC” for “Input
Source” in the “Main” menu, or select the
RGB mode by pressing on the remote
control.
• A Macintosh adaptor may be required for
use with some Macintosh computers.
Contact your nearest Authorized Service
Center or Dealer.
• Depending on the computer you are using,
an image may not be projected unless the
signal output setting of the computer is
switched to the external output. Refer to the
computer operation manual for switching
the computer signal output settings.
