INTRODUCTION
9
Components

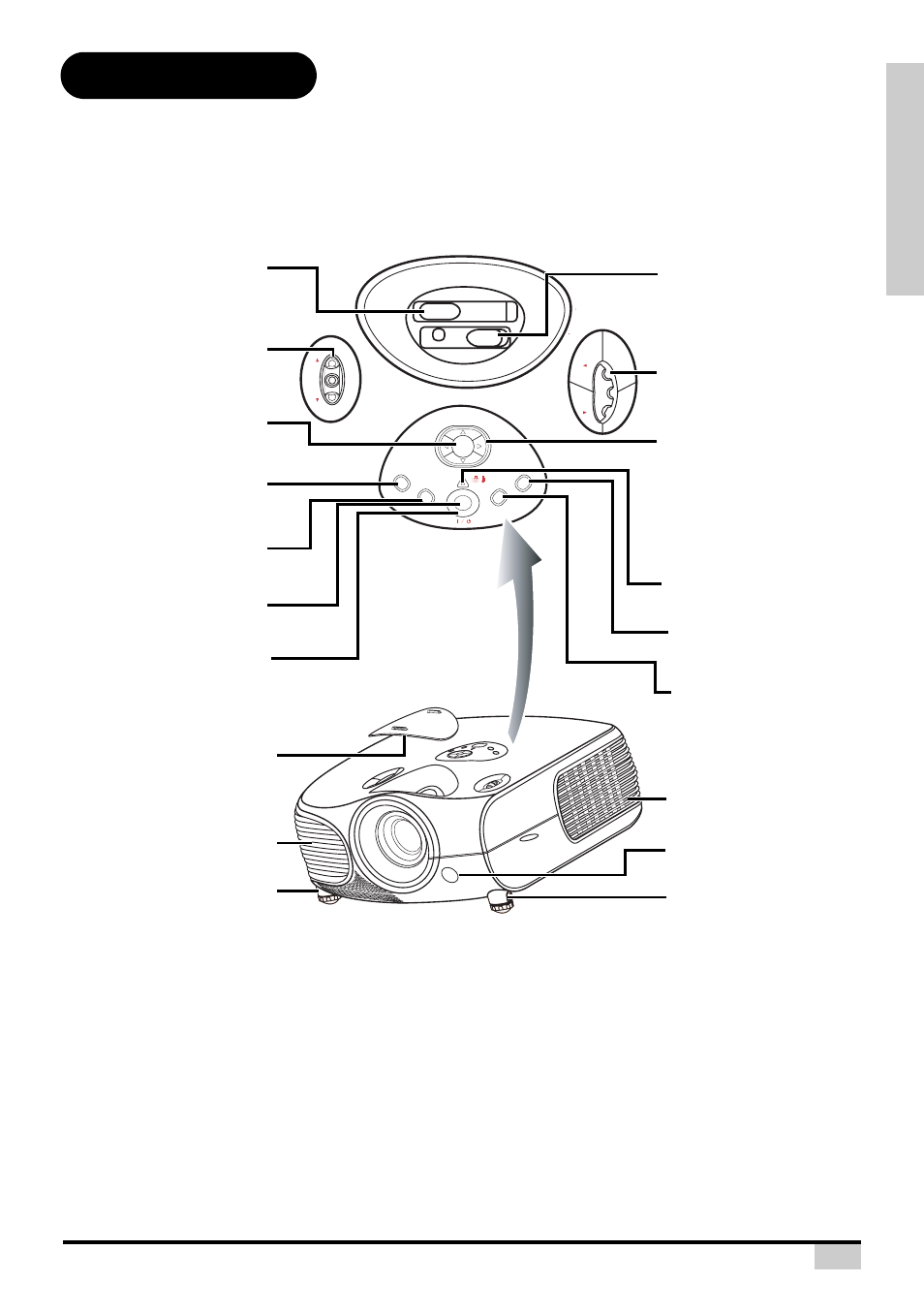

Projector (Front and Top View)
Temperature indicator
The projector has an over temperature warning LED on the control panel. If the projector overheats because
of a dirty filter or another problem, the LED will flash, and the projector lamp will turn off, after which a 90-
second cooling off period occurs. After restarting the projector, if the unit doesn’t operate normally, take the
projector in for servicing.
STATUS
EXIT
INPUT
MENU
ECO
ENTER
Focus
Zoom
LENS SHIFT (H)
LENS SHIFT (V)
ENTER button
For setting the selected items
or adjustments from the menu.
Zoom ring
Adjust screen display
Focus ring
Adjust focus.
Adjustment foot
Power (ON/OFF) buttons
For turning the power on or off.
Intake vent
Adjustment foot
Remote control sensor
Air filter/cooling fan
Adjustment buttons
(T,S,W,X)
For selecting menu items.
Temperature indicator
This indicator glows red, when
the temperature of the projector
exceeds the set critical
temperature or when the fan
functions abnormally.
MENU button
Press this button to enter
the OSD menus.
INPUT button
Press this button to select
the input source.
ECO button
For extended Lamp life.
Exit button
For exiting the OSD.
Lens shift dial
(Horizontal)
Lens shift dial
(Vertical)
Power indicator
Blue: The power is ready.
Blue blinking: The fan is
cooling.
Ring cap cover set
Prevent foreign objects from
falling into the focus/zoom ring
compartment.
