Connecting to Video Equipment
Connecting to Video
Equipment
Using an S-video or a Composite Video
Cable
Using an S-video or a composite video cable,
a VCR, laser disc player or other video
equipment can be connected to INPUT 3 input
terminals.
Note
• The INPUT 3 (S-VIDEO) terminal uses a
video signal system in which the picture is
separated into color and luminance signals
to realize a higher-quality image. To view a
higher-quality image, use a commercially
available S-video cable to connect the
INPUT 3 terminal on the projector and the
S-video output terminal on the video
equipment.
RS-232
RS-232
S-VIDE O VIDEO Pr/Cr Pb/Cb Y Pr/Cr Pb/Cb Y PC
DVI
WAR NING • Do not disa ssem ble a ny c omp onen ts ex cept the lamp cha ssis cove r wh ile re plac ing t he la mp.
• Do not touc h ve ntila tion slots , lam p an d ob jects nex t to t hem until they hav e su fficie ntly cool ed d own.
• Ne ver i nser t any obje cts t hrou gh v entil ation hole s.
• Do not use this unit near wat er or in a rain y/mo ist e nviro nme nt.
• Ke ep a t lea st 0. 3 foo t (10 cm) of s pace betw een vent ilatio n slo ts an d ne ares t obje ct or wal l.
Mad e in Taiw an
S-VIDEO
VIDEO
Pr/Cr
Pb/Cb
Y
Pr/Cr
Pb/Cb
Y
PC
WAR
NING
• Do not disassemble any
components except the lam
p chassis cover while repl
acing the lamp.
• Do not touch ventilatio
n slots, lamp and object
s next to them until th
ey have suf
ficiently cooled down.
• Never insert any objects
through ventilation ho
les.
• Do not use this unit ne
ar water or in a rai
ny/moist envi
ronment.
• Keep at least 0.3 foot
(10 cm) of space between
ventilation slots and n
earest object or wall.
Made in
Taiwan

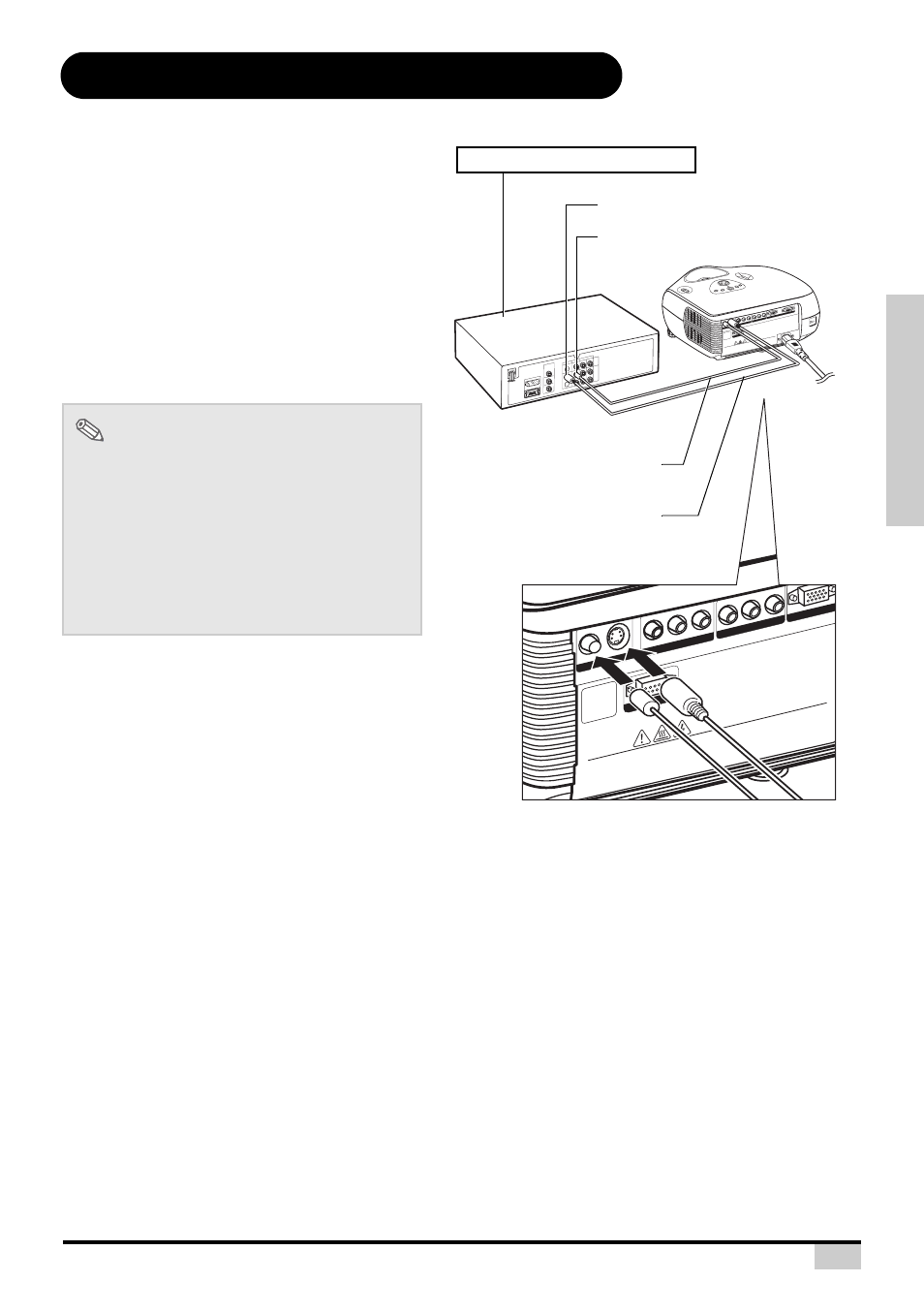

To S-video output terminal
To Video output terminal
VCR or other video equipment
Composite video cable
(commercially available)
S-video cable
(commercially available)
