INTRODUCTION
WARNING! As the projector lamp becomes extremely hot, air blowing out from the ventilation
slots can be uncomfortably hot.
Using the Kensington Lock
This projector has a Kensington Security Standard connector for use with a Kensington MicroSaver
Security System. Refer to the information that came with the system for instructions on how to use it to
secure the projector.
Input 2
Component 2
Terminals for component YPbPr/
YCbCr.
WARNING
• Do not disassemble any components except the lamp chassis cover while replacing the lamp.
• Do not touch ventilation slots, lamp and objects next to them until they have sufficiently cooled down.
• Never insert any objects through ventilation holes.
• Do not use this unit near water or in a rainy/moist environment.
• Keep at least 0.3 foot (10 cm) of space between ventilation slots and nearest object or wall.
Made in Taiwan
WARNING
• Do not disassemble
any components exc
ept the lamp chassis
cover while r eplacing the lamp.
• Do not touch ventilation slots, lamp and objects next
to them until they have suf
ficiently cooled down.
• Never insert any o
bjects through ventilation holes.
• Do not use this uni
t near water or in a rainy/moist environment.
• Keep at least 0.3 foot (10 cm) of space between ventilation slots and nearest object or wall.
Made in Taiwan
S-VIDEO VIDEO
RS-232
Pr/Cr Pb/Cb Y Pr/Cr Pb/Cb Y PC
S-VIDEO VIDEO
Pr/Cr
RS-232
Pb/Cb Y Pr/Cr Pb/Cb Y
PC
DVI
DVI

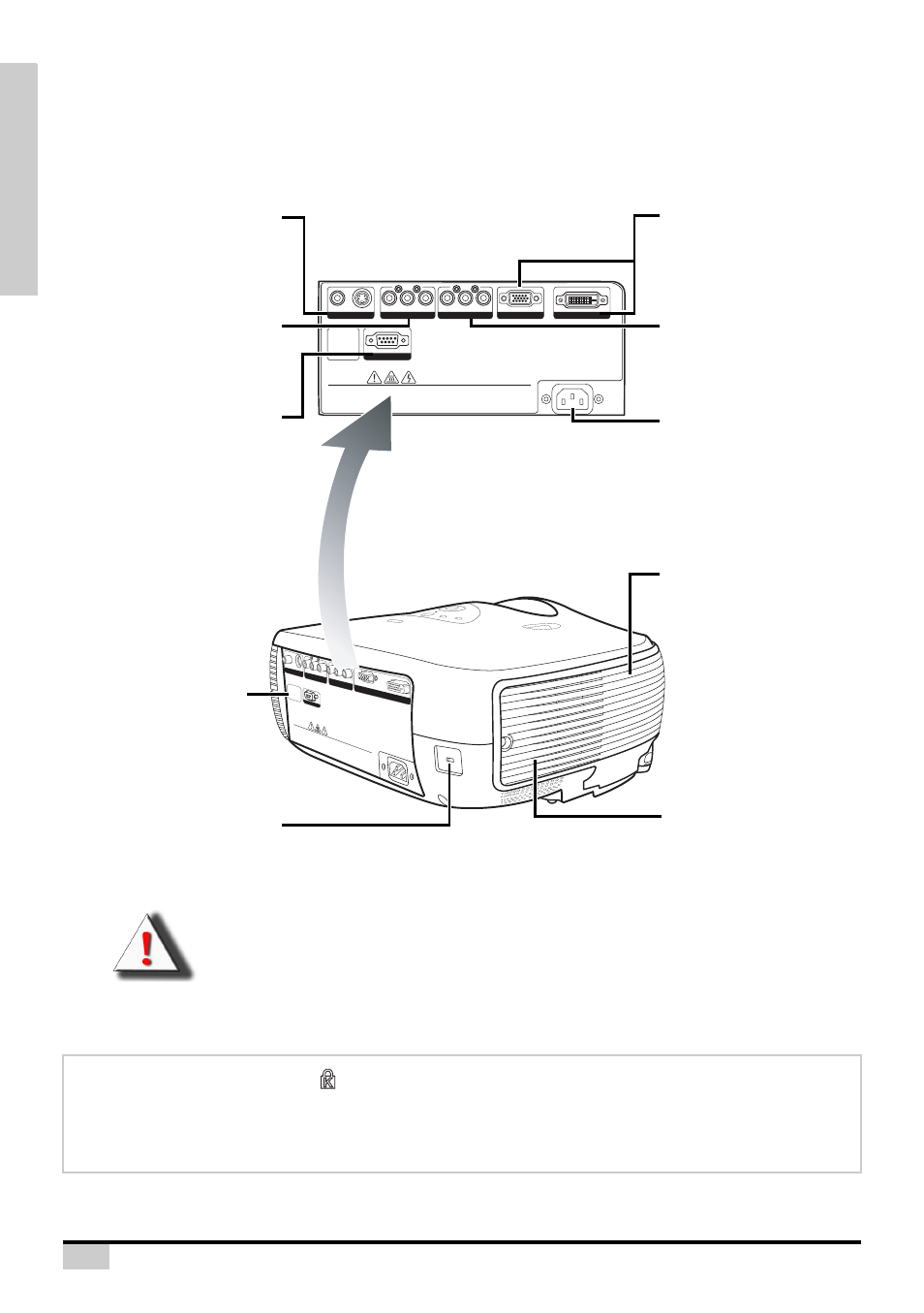

Projector (Rear View)
Input 1
Component 1
Terminals for component and
YPbPr/YCbCr.
RS-232C terminal
Firmware upgrade.
Input 3
Video/S-Video
Terminal for connecting video
equipment with an S-video and
Composite Video.
AC socket
Input: 100~240VAC
3.5A,50/60Hz
Exhaust vent
Input 4
DVI/PC
Terminal for Digital Video
Interface, computer and RGB
signals.
Kensington Security
Standard connector
Air filter/cooling fan
Remote control sensor
