SkyTrak 10042 Parts Manual - Manual (Page 370)

HYDRAULIC CIRCUITS
8042/10042/10054 8990395 8-16

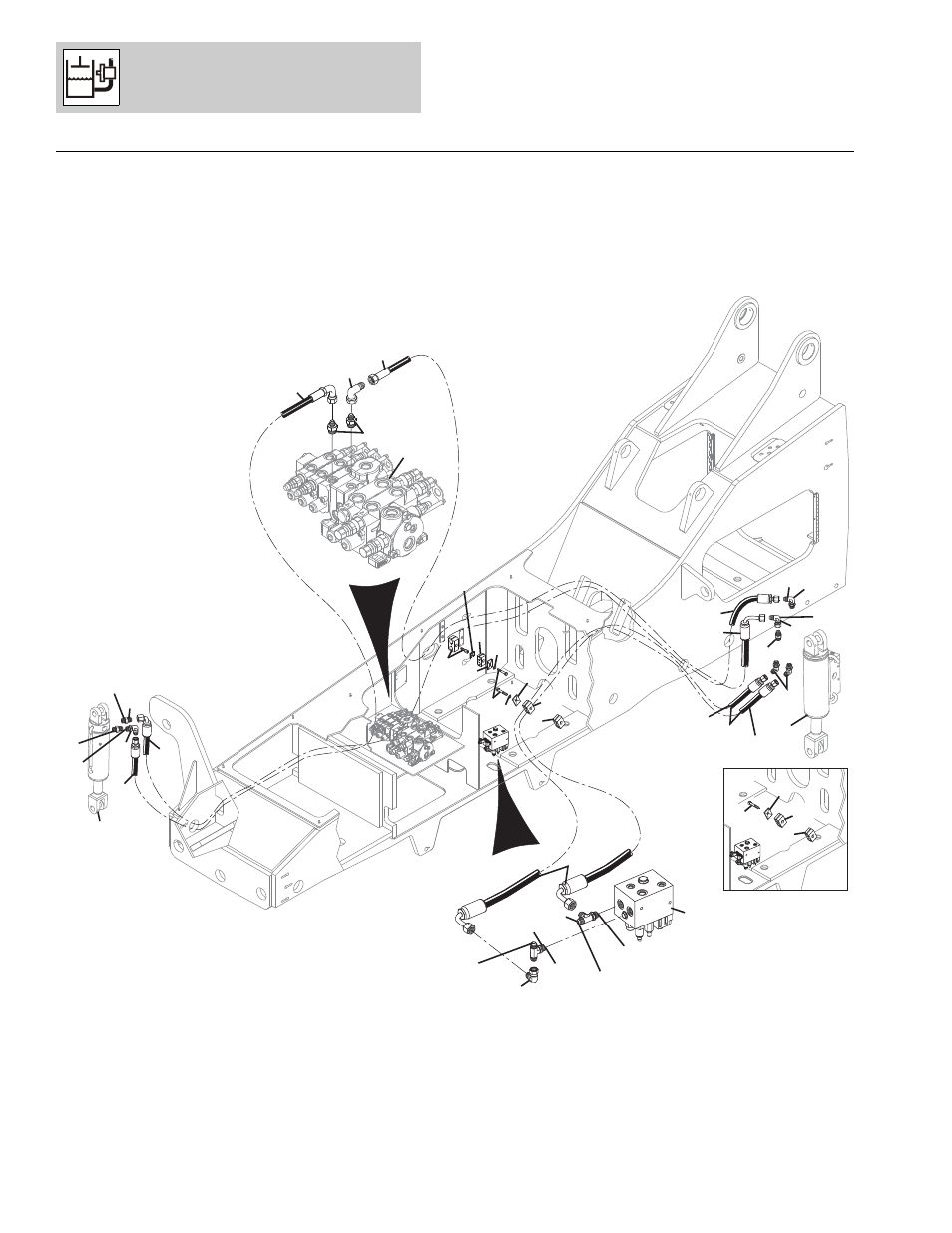

Figure 8-4 Frame Sway & Stabil-Trak
20
18
19
8
7
1
6
3
2
5
11
26
12
13
14
13
12
9
10
15
17
6
5
4
21
2
4
6
22
8
16
24
25
23
PH3872
11
27
10
28
PORT
“FTR”
PORT
“V”
PORT
“P”
PORT
“T”
PORT
“C”
PORT
“P”
PORT
“FTB”
PORT
“FTR”
TO CONTROL VALVE,
(see Figure Control Valve) TO POWER STEERING,
(see Figure Power
Steering)
8042 S/N 0160038988 &
AFTER
10042 S/N 0160038384 &
AFTER
10054 S/N 0160038740 &
AFTER INCLUDING
0160021270, 0160036713,
0160036715, 0160036721
& 0160036723
