Page 210: See figure 5-7 for details), Drive train
DRIVE TRAIN
8042/10042/10054
8990395
5-38

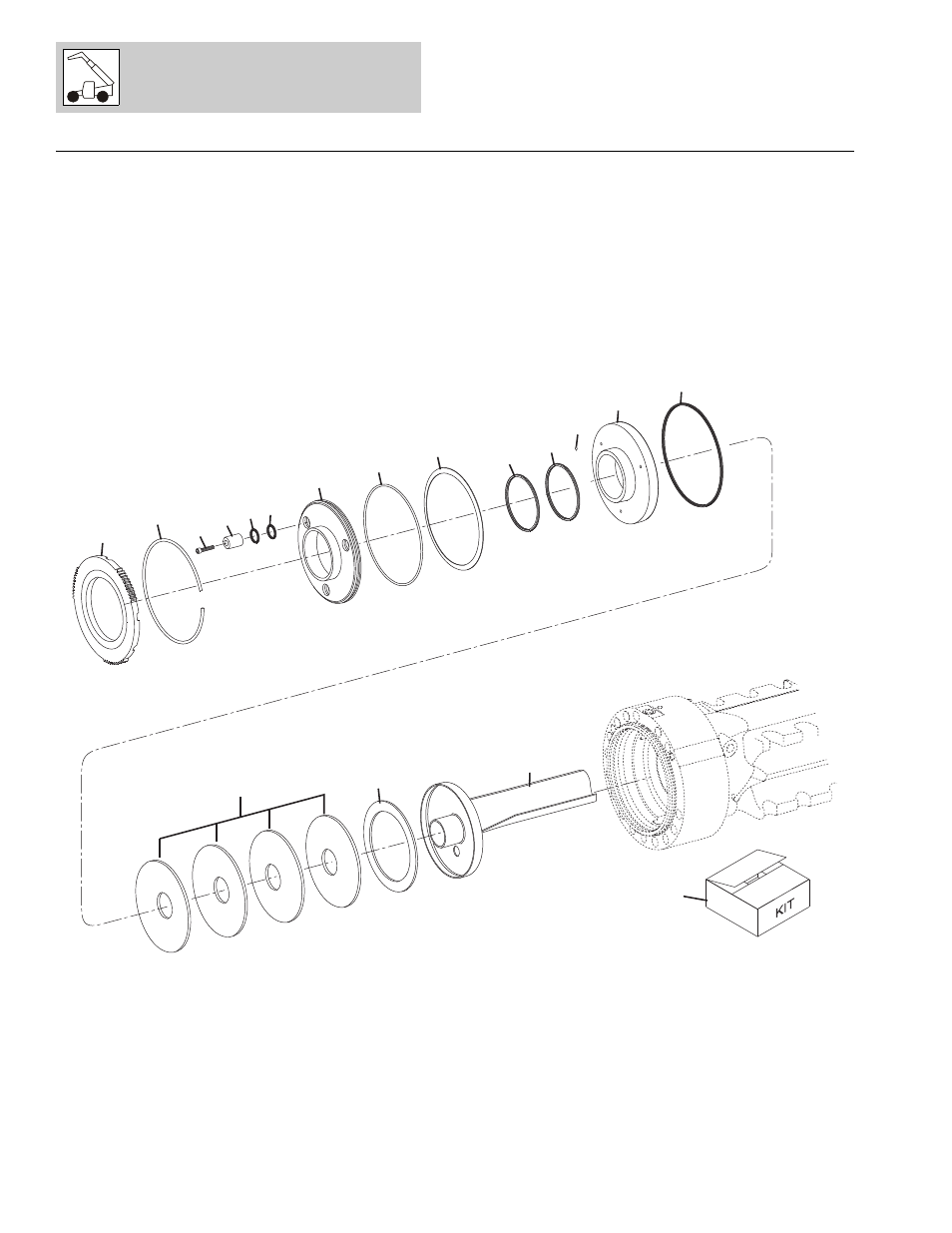

Figure 5-7 Front Axle - Brake
11
12
2
1
13 16
3
7
9
6
15
17
4
5
8
14
10
K1
PH3601
PH3600
8042 Before S/N 0160038967 including 0160038971 & 0160038984
10042 Before S/N 0160038368 including 0160038375, 0160038378,
0160038379, 0160038381 & 0160038383
10054 Before S/N 0160038740 excluding 0160021270, 0160036713,
0160036715, 0160036721 & 0160036723
