CAB
8042/10042/10054 8990395 6-2

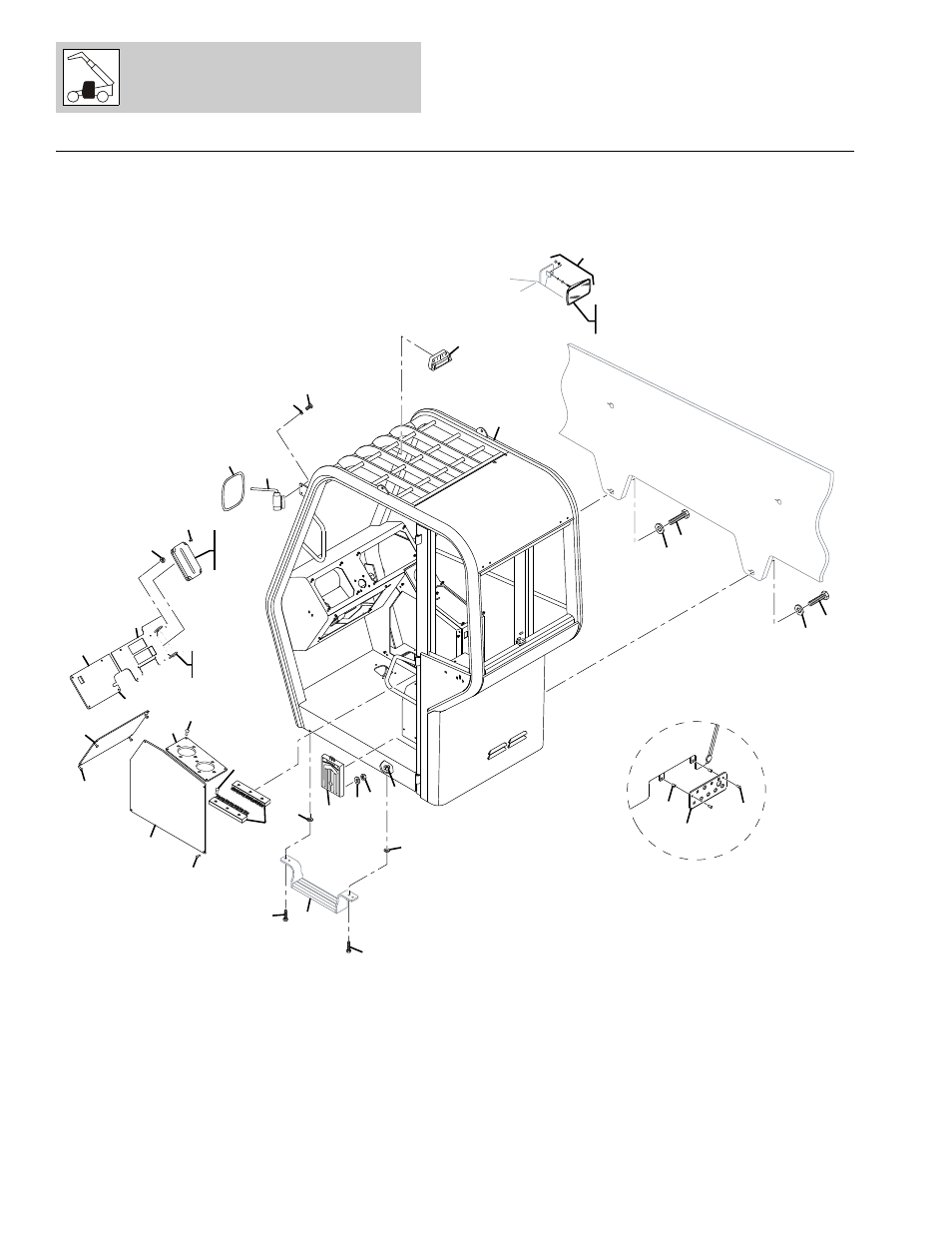

Figure 6-1 Open Cab
PAP16420
24
28
1
30
29
30
29
15
14
13
19
18
17
16
18
17
7
27
26
3
7
2 6
7
5
7
4
12
11
8
9
10
20
21
23
22
31
32
7 33
34
25
35
VIEW OF
BULKHEAD PLATE
ON LOWER FRAME SIDE OF CAB
