HYDRAULIC CIRCUITS
8042/10042/10054 8990395 8-8

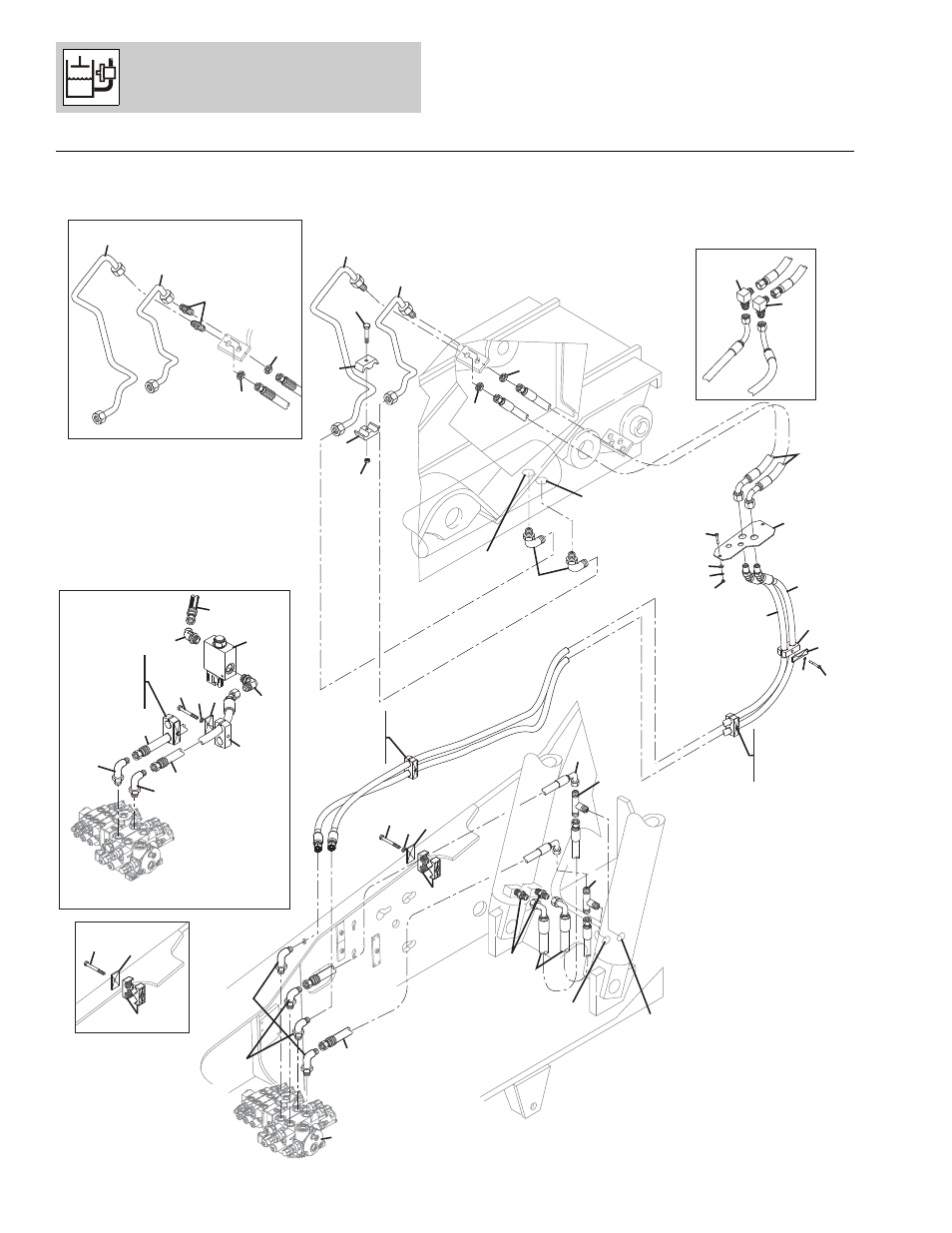

Figure 8-2 Boom Lift/Lower & Extend/Retract
PH3854
27
9
8
12
8
34
26
7
27
23
22
25
24
2
3
1
3
3
2
19
21
21
20
11
26
10
5
32
1
34
14 15 16
13
4
31
30
29
28
7
7
13
16
14
15
13
14
15
16
6
6
13
14
15
16
13
14
15
16
5
13
14
15 16
33
36
37 35
10054 ONLY
8042 S/N 13198 THRU 19987 & 0160002332 THRU 0160004643
10042 S/N 13198 THRU 19987 & 0160002332 THRU 0160004672
10054 S/N 13198 THRU 19987 & 0160002332 THRU 0160004646
8042 S/N 13198 THRU 19987 & 0160002332 THRU 0160025261
10042 S/N 13198 THRU 19987 & 0160002332 THRU 0160026072
10054 S/N 13198 THRU 19987 & 0160002332 THRU 0160026055
10054 S/N 0160021270,
0160036713, 0160036715,
0160036721 &
0160036723
EXTEND
PORT
RETRACT
PORT
RETRACT
PORT
Before S/N 0160040220
excluding 0160039850, 0160040126 thru 0160040129
& 0160040171
