HYDRAULIC CIRCUITS

8042/10042/10054

31200732

8-16

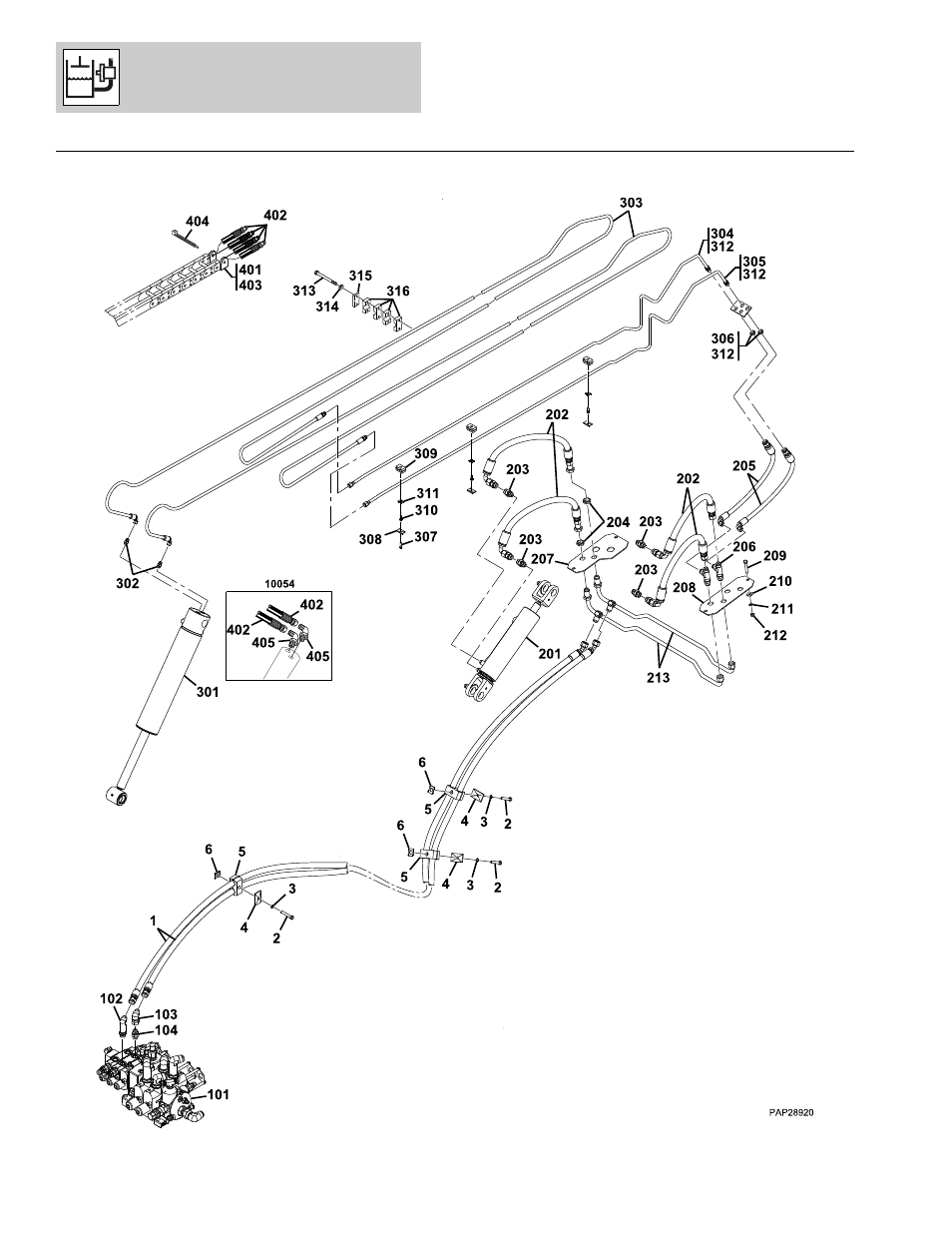

Figure 8-7 Attachment Tilt & Tilt Compensation Cylinder Circuit
